Wiper Arm: Adjustments




Windshield Wiper Arm Adjustment

1. Loosen the windshield wiper arms from the wiper transmission. Refer to Windshield Wiper Arm Replacement Windshield Wiper Arm Replacement.

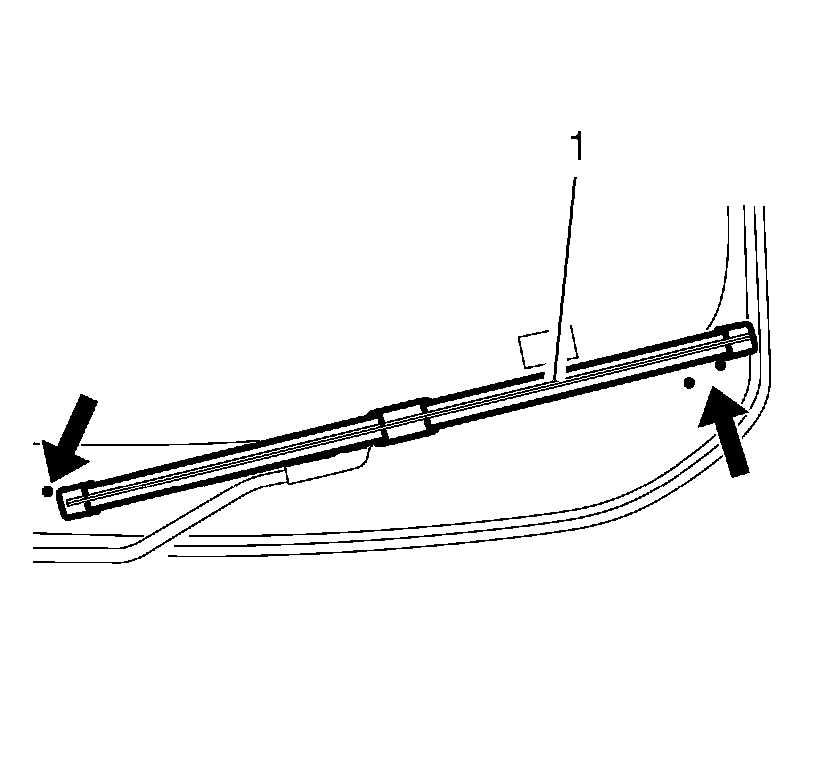

2. Check the marks (arrows) to install the wiper arms (1) at the lower blackout of the windshield.

3. Align the wiper arm blade over the marks (arrows) so that they are in a line.

4. Tighten the wiper arms to the wiper transmission. Refer to Windshield Wiper Arm Replacement Windshield Wiper Arm Replacement.
