Object Alarm Sensor - Left Rear Middle (UD7)
Object Alarm Sensor - Left Rear Middle (UD7)

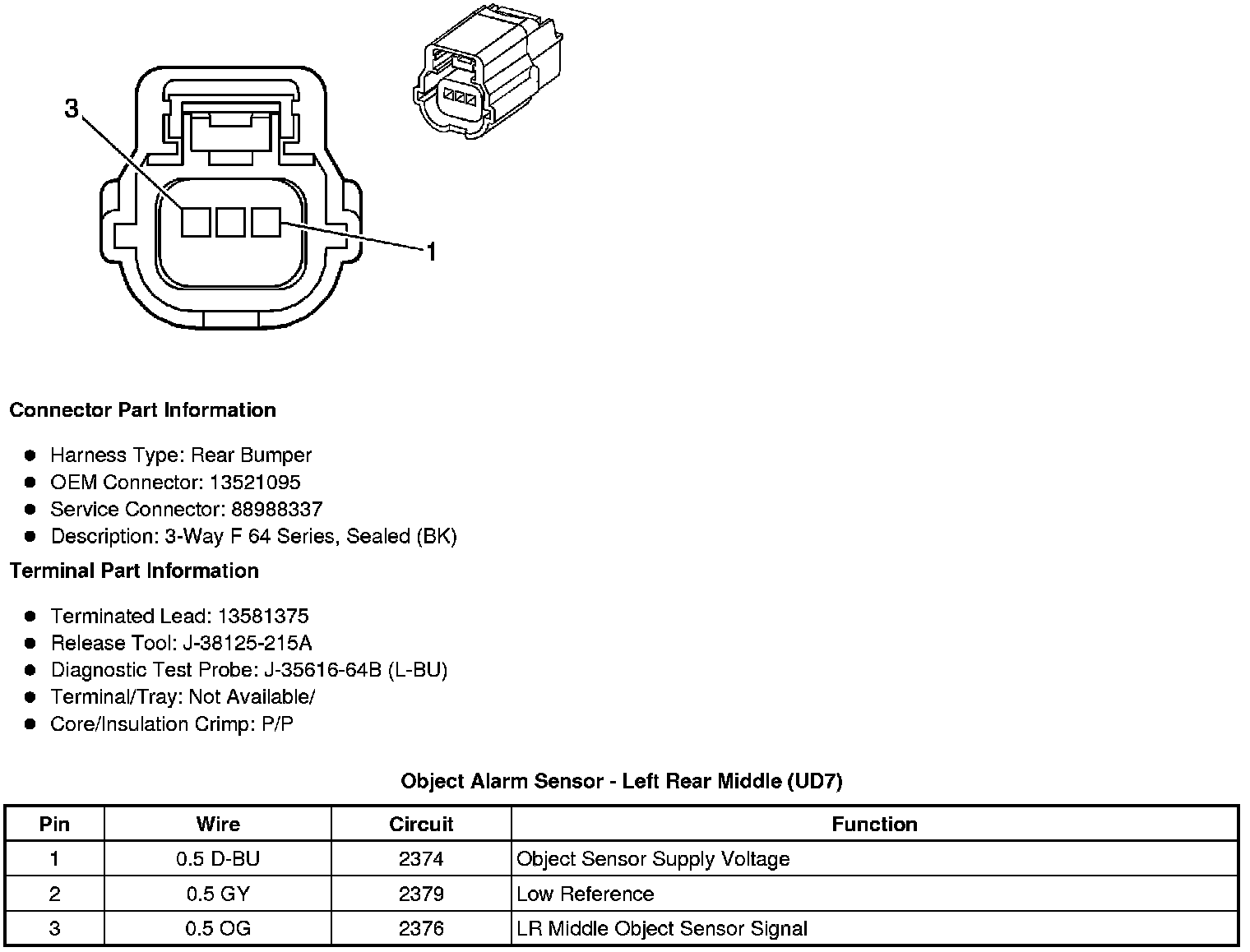

Component Connector End Views
Object Alarm Sensor - Left Rear Middle (UD7)
