ENGINE COMPARTMENT FUSE BLOCK






To open the fuse block cover, remove the clip on the cover.

Notice: Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.






The vehicle may not be equipped with all of the fuses, relays, and features shown.

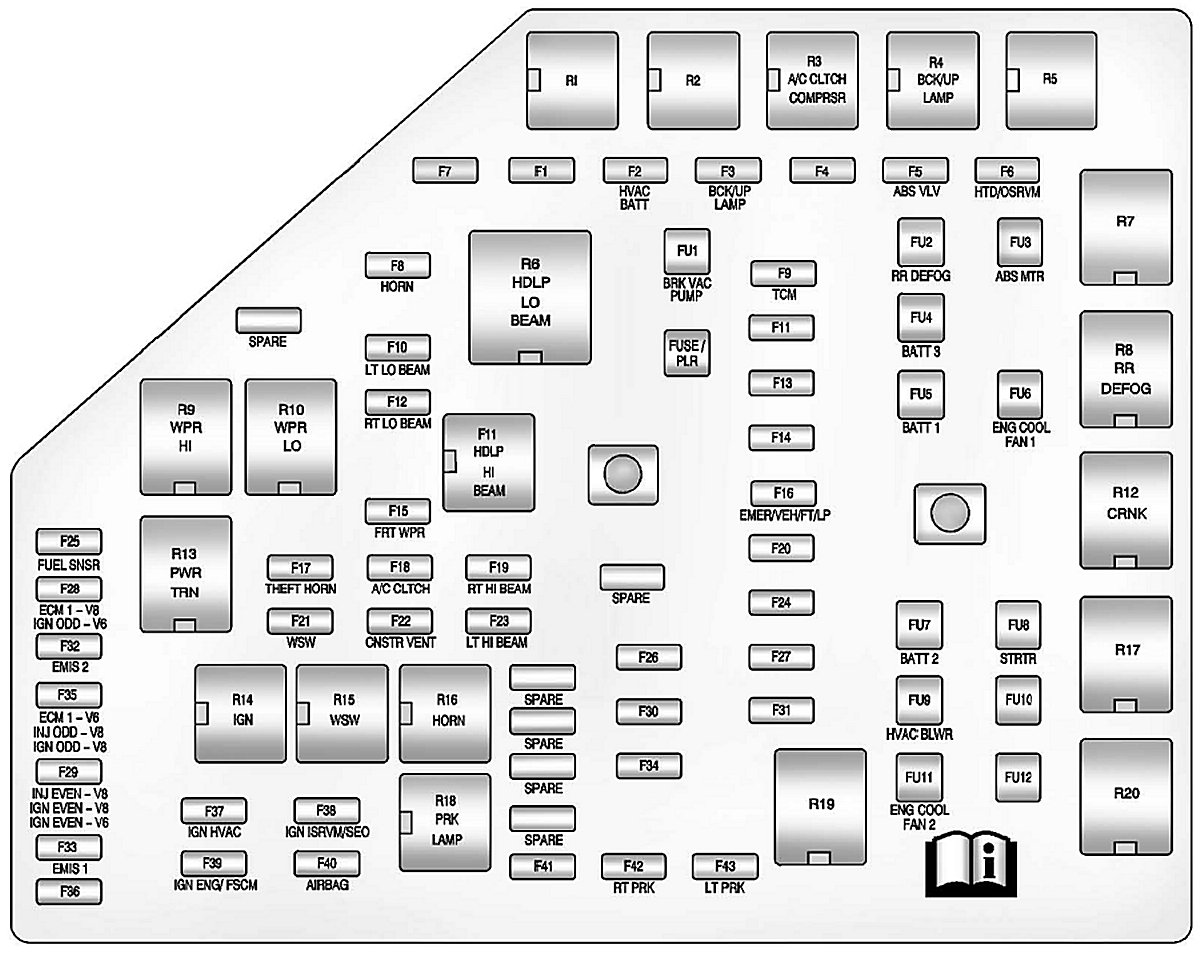

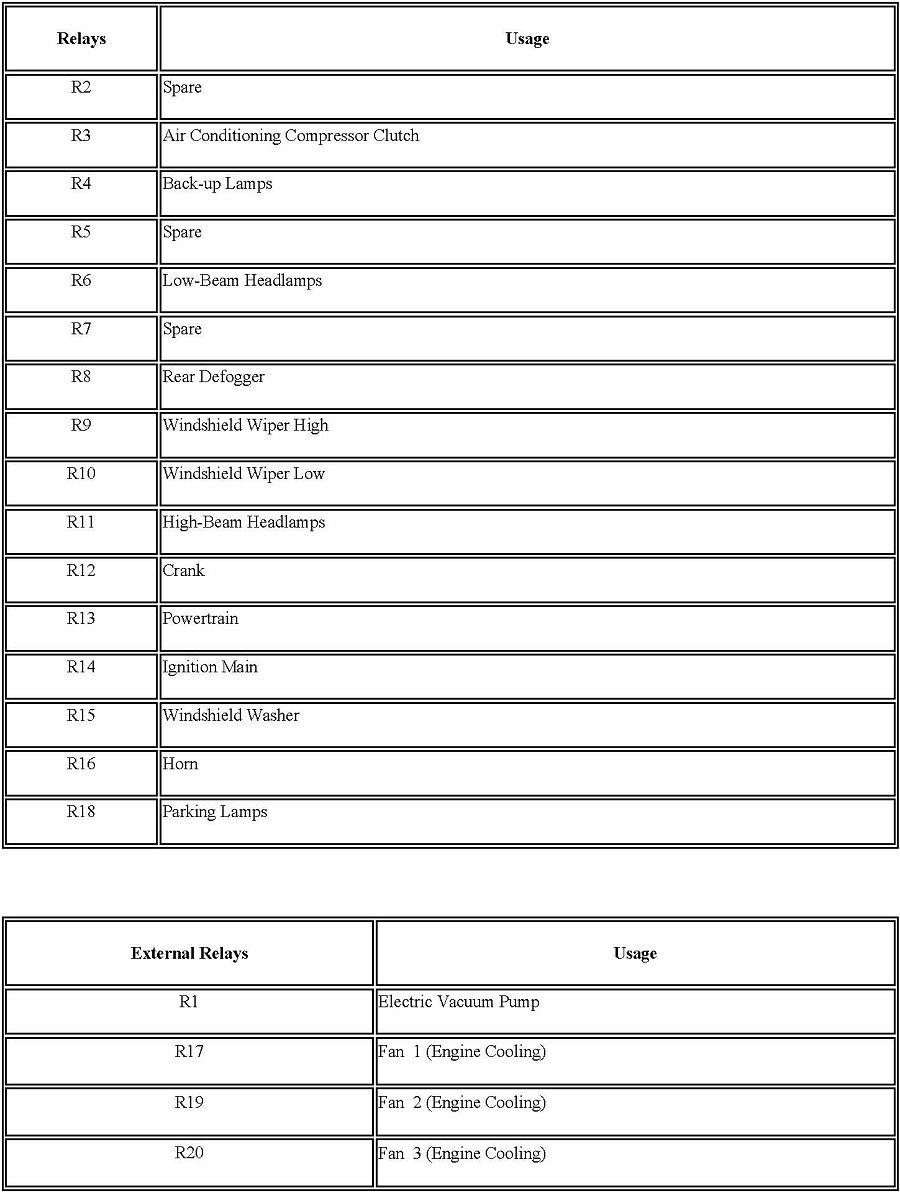

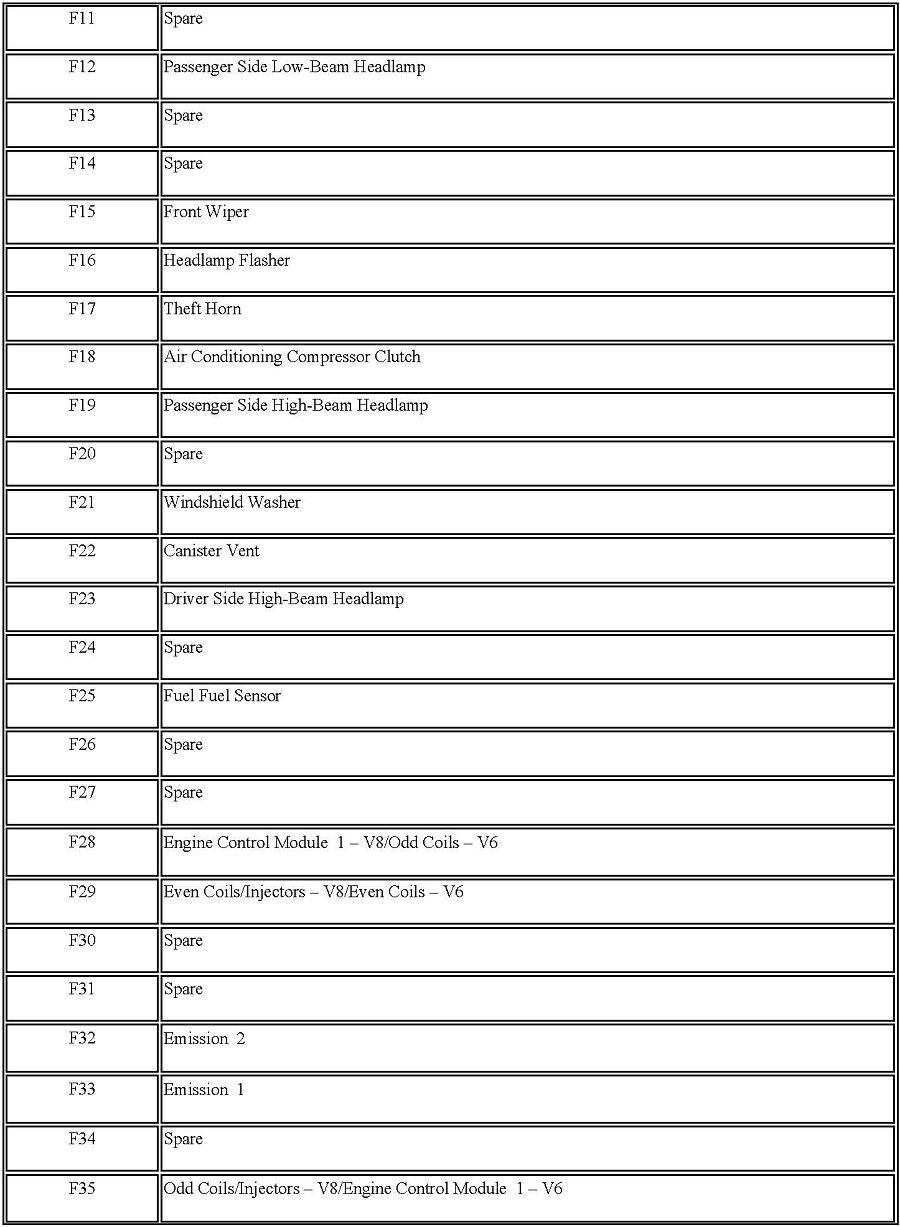

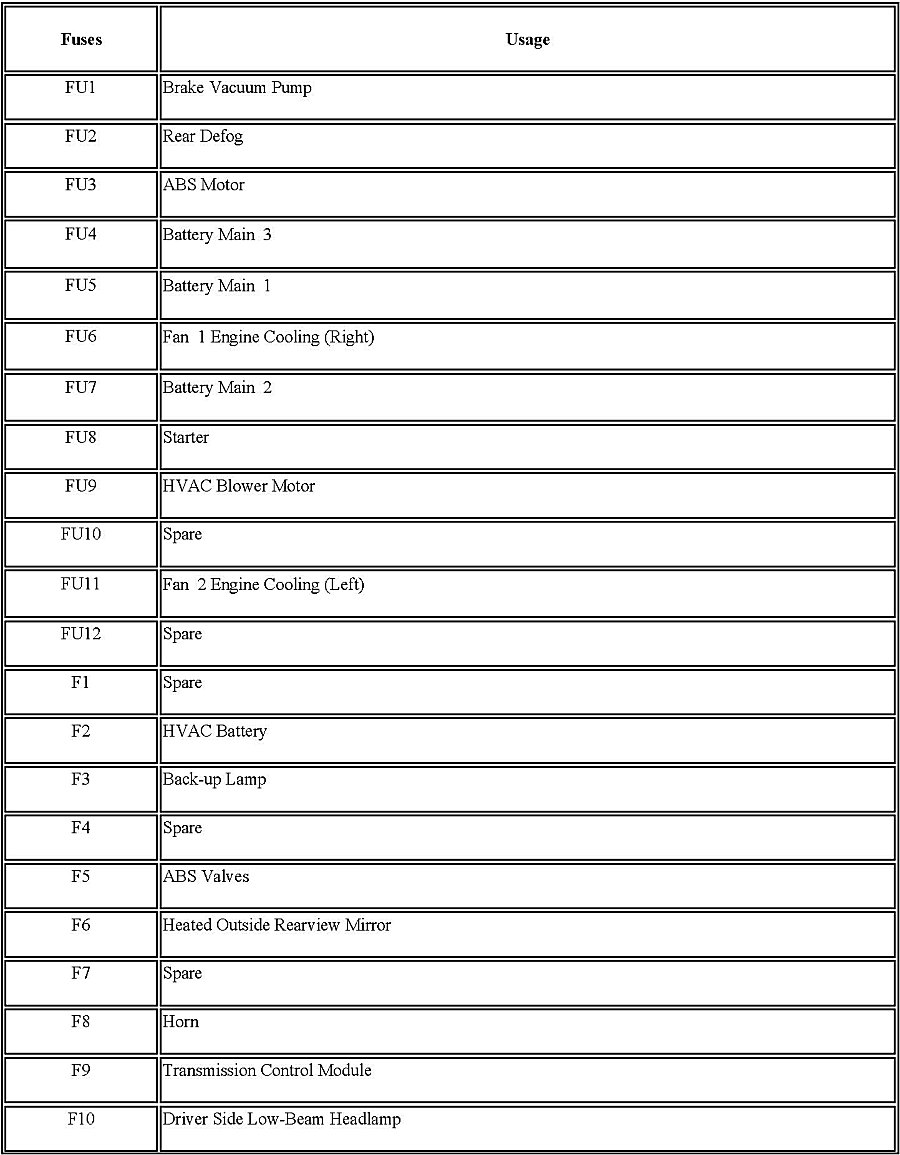

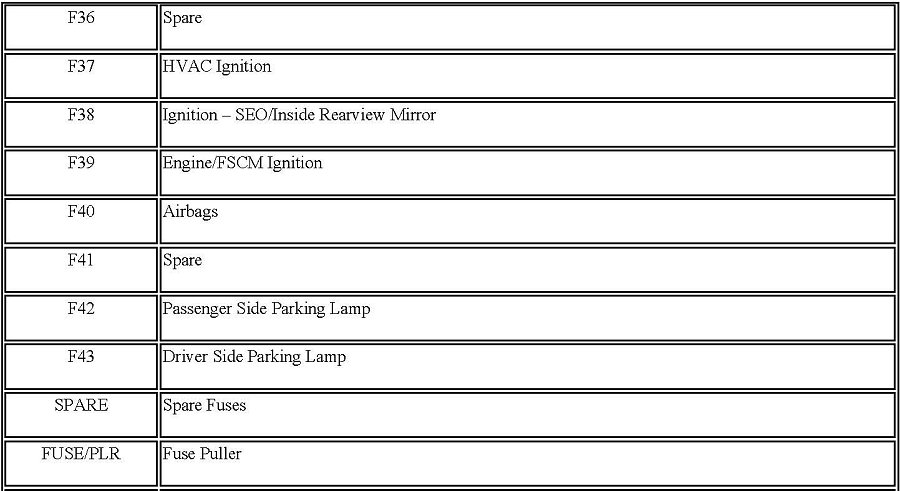

Relays R1, R17, R19, and R20 are mounted externally, one behind and two inboard of the engine compartment fuse block.
