REAR COMPARTMENT FUSE BLOCK






The rear compartment fuse block is located on the left side of the trunk behind a cover.

Use the fuse puller to remove and replace fuses.

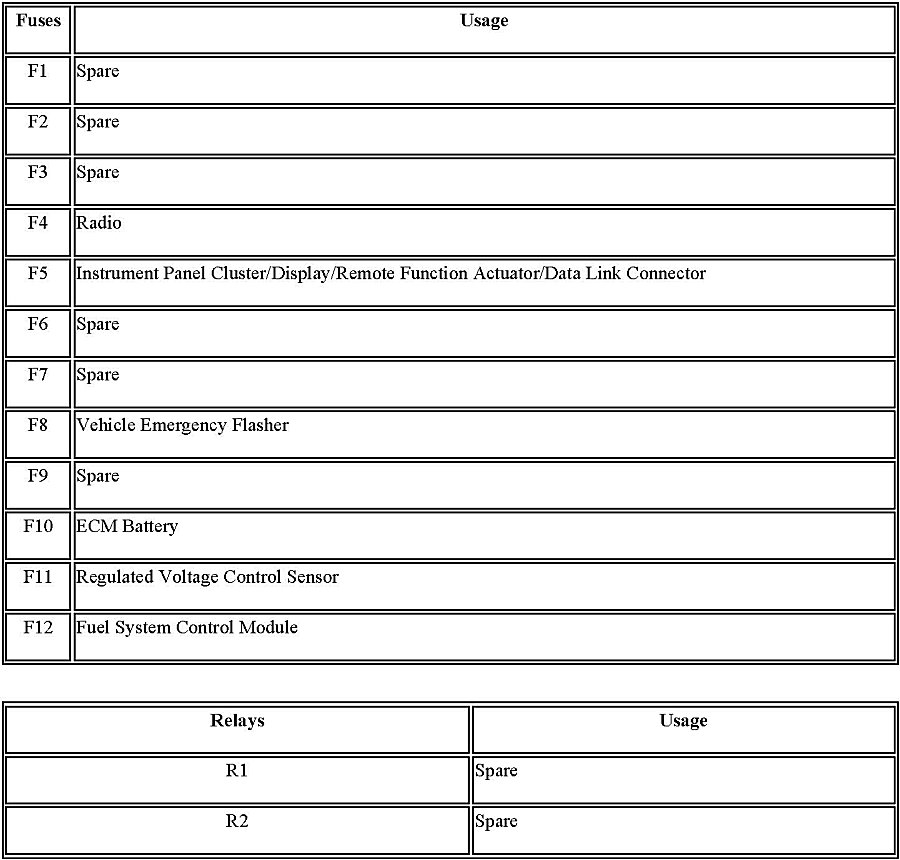

The vehicle may not be equipped with all of the fuses, relays, and features shown.
