Intake Air Temperature (IAT) Sensor 2
Intake Air Temperature (IAT) Sensor 2

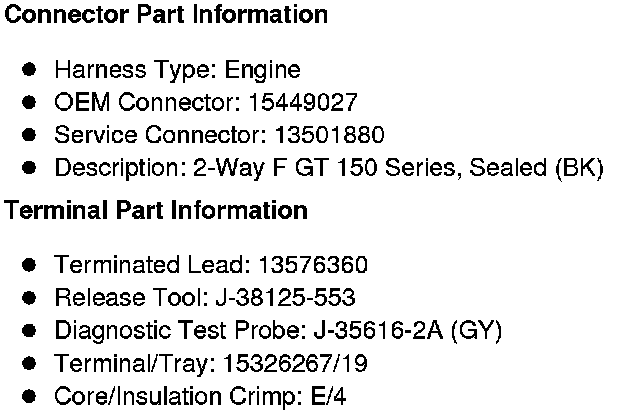

Component Connector End Views

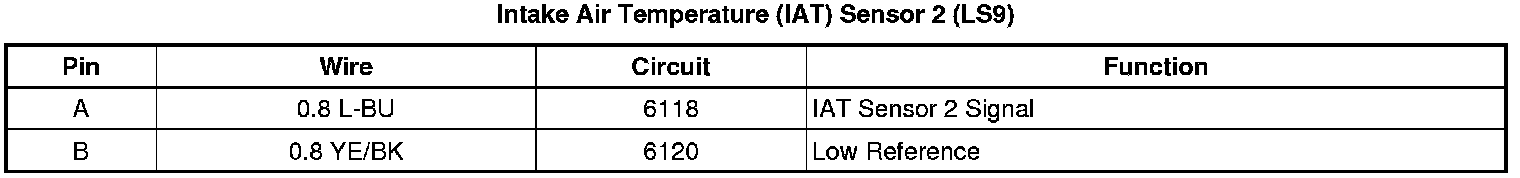

Intake Air Temperature (IAT) Sensor 2 (LS9)
