System Diagram




Automatic Transmission Controls Schematics

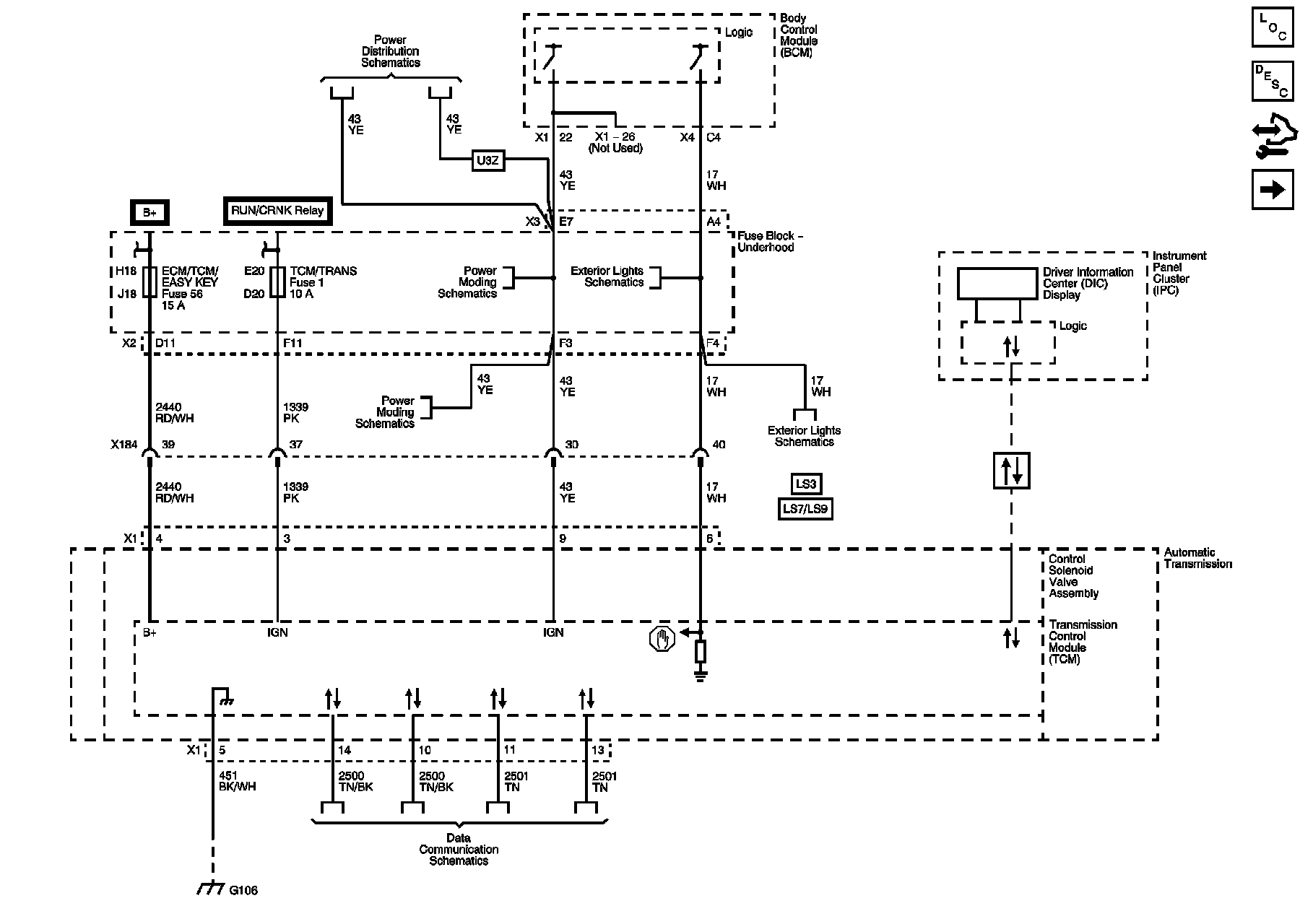

Power, Ground, Serial Data, and Brake Applied Signal

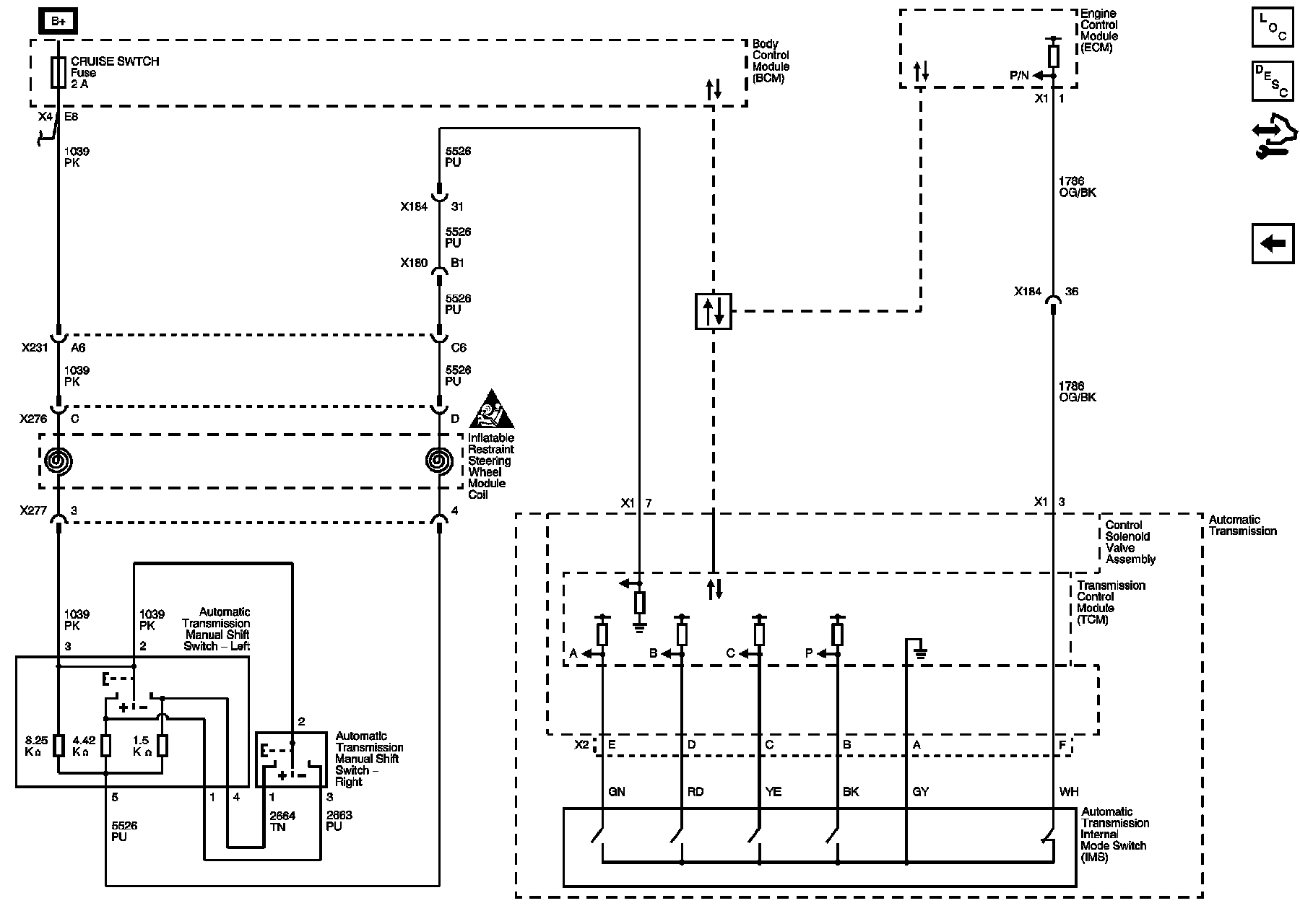

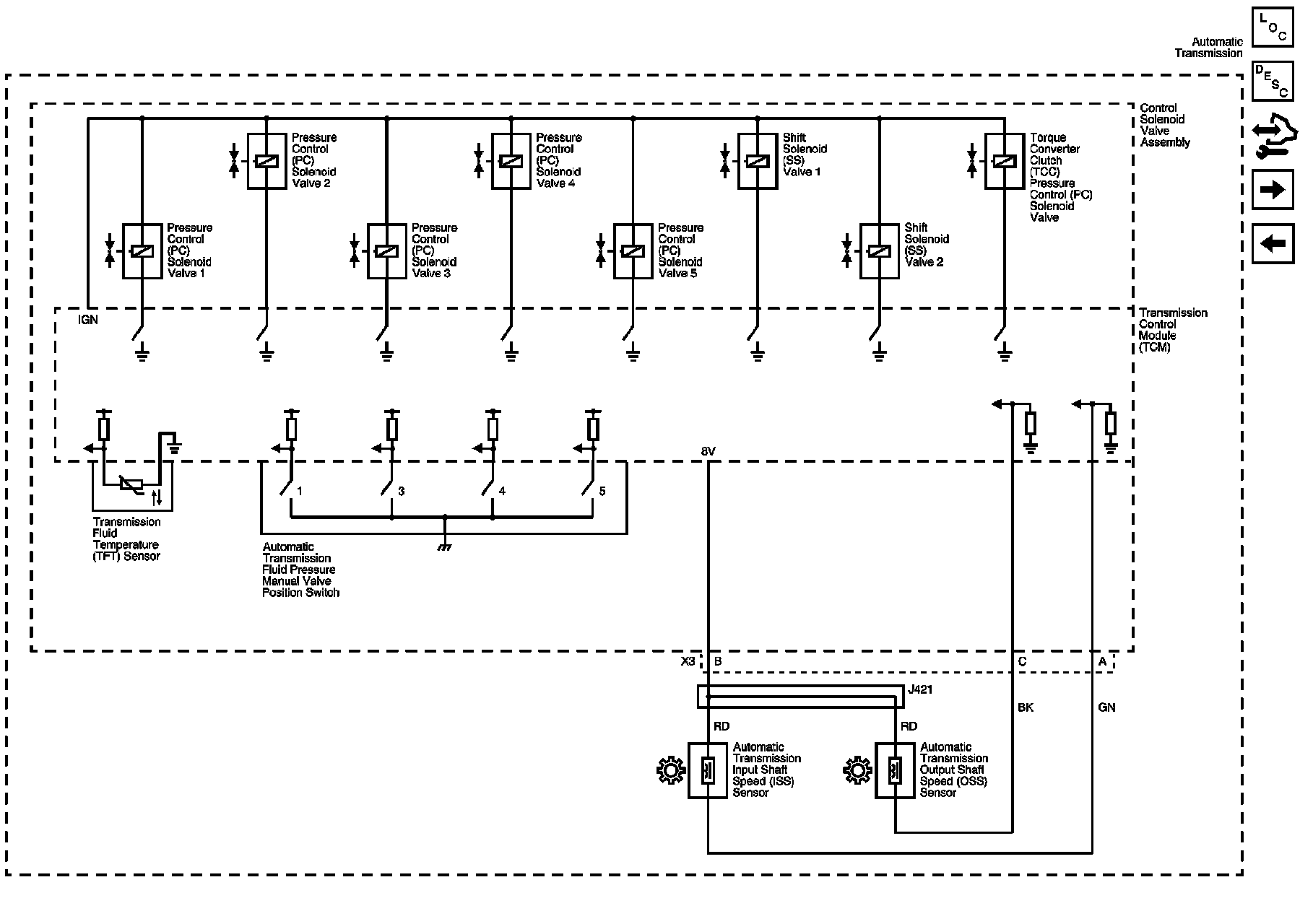

ISS, OSS, and TFT Sensors, and Pressure and Shift Controls






Internal Mode Switch and TAP Shift Switches
