Variable Boost Control Solenoid, Turbocharger

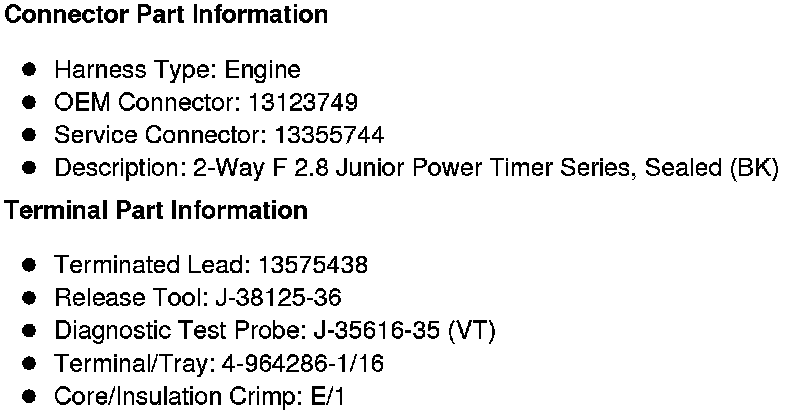

Component Connector End Views

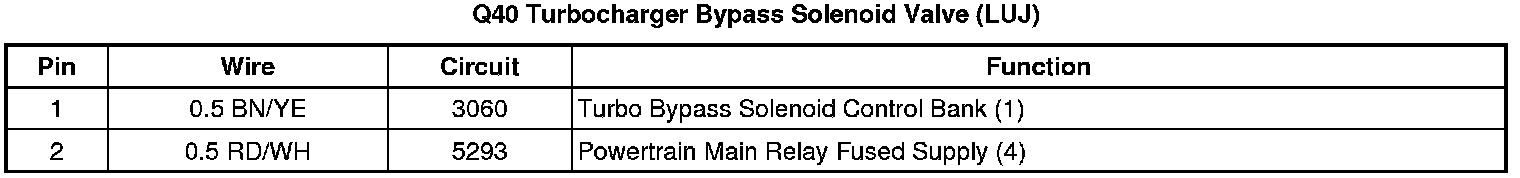

Q40 Turbocharger Bypass Solenoid Valve (LUJ)
