Horn

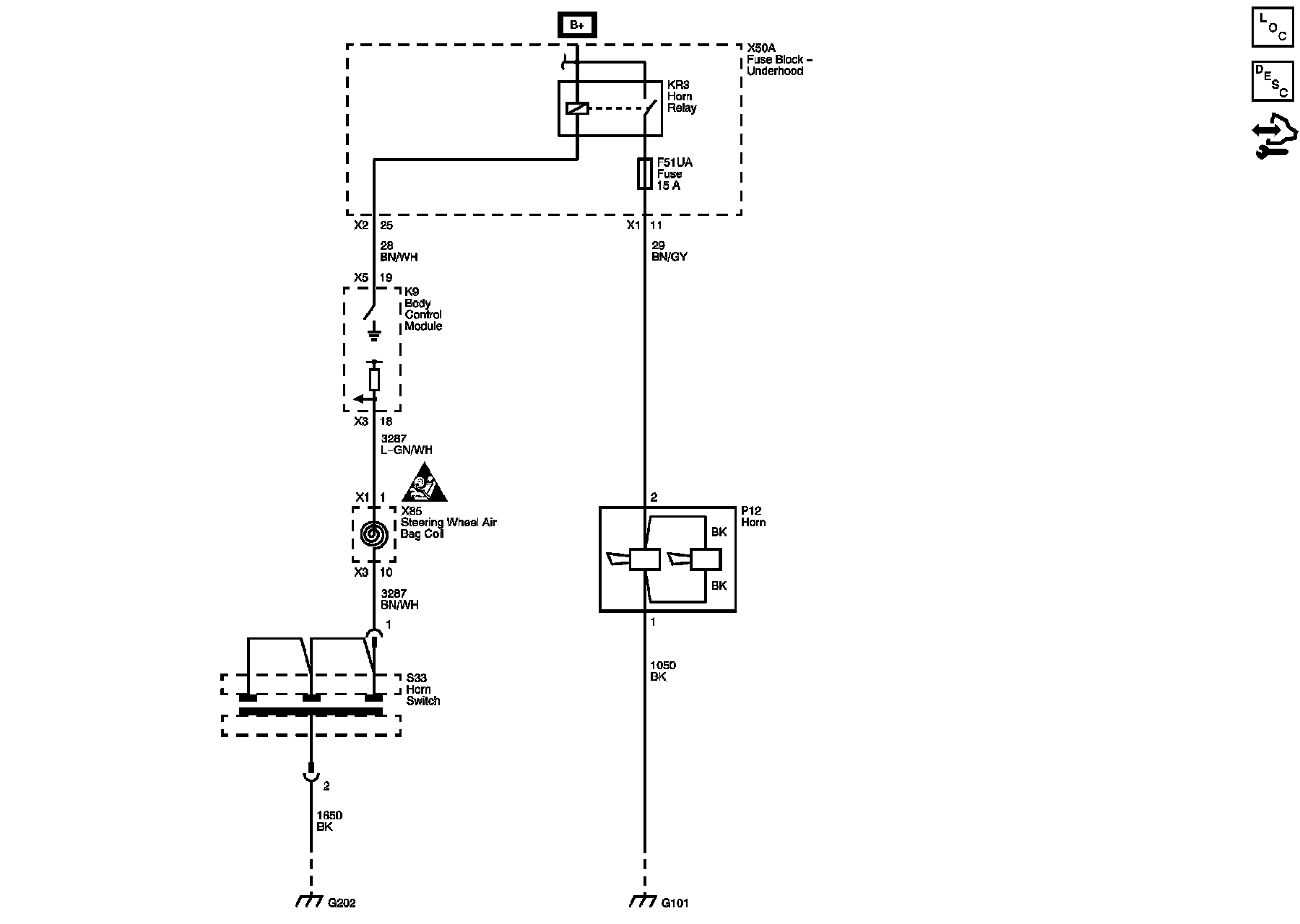

Horn Schematics

Horn





Master Electrical Component List
Horns System Description and Operation
Control Module References
