Home
>>
Chevrolet
>>
2013
>>
Cruze L4-1.4L Turbo
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
Connector End Views By Name
>>
Inside Rearview Mirror
Inside Rearview Mirror
Component Connector End Views

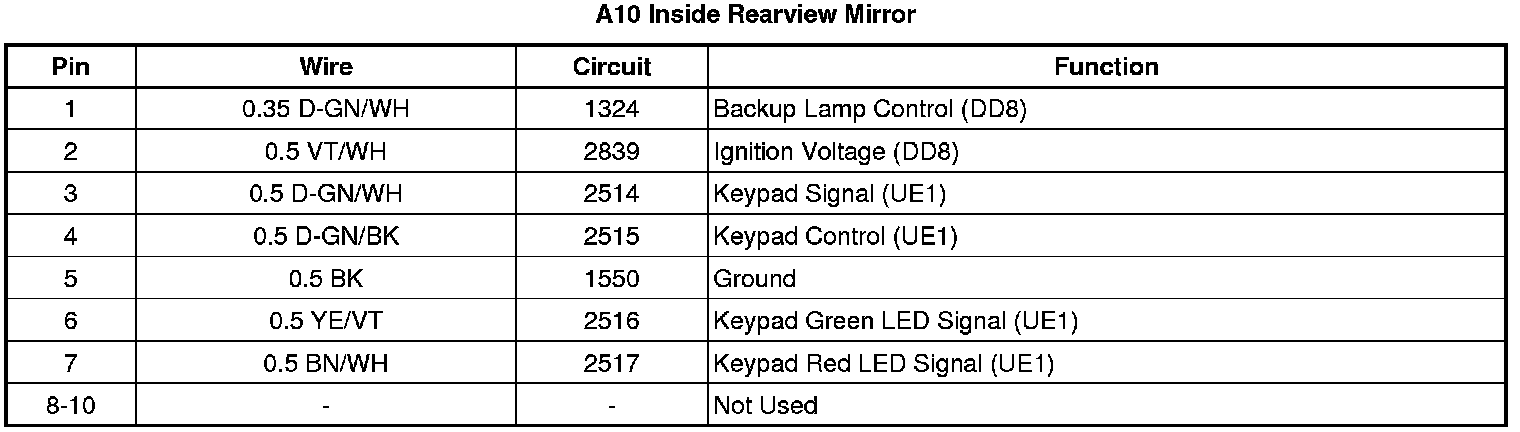

A10 Inside Rearview Mirror
