Cylinder Head Assembly

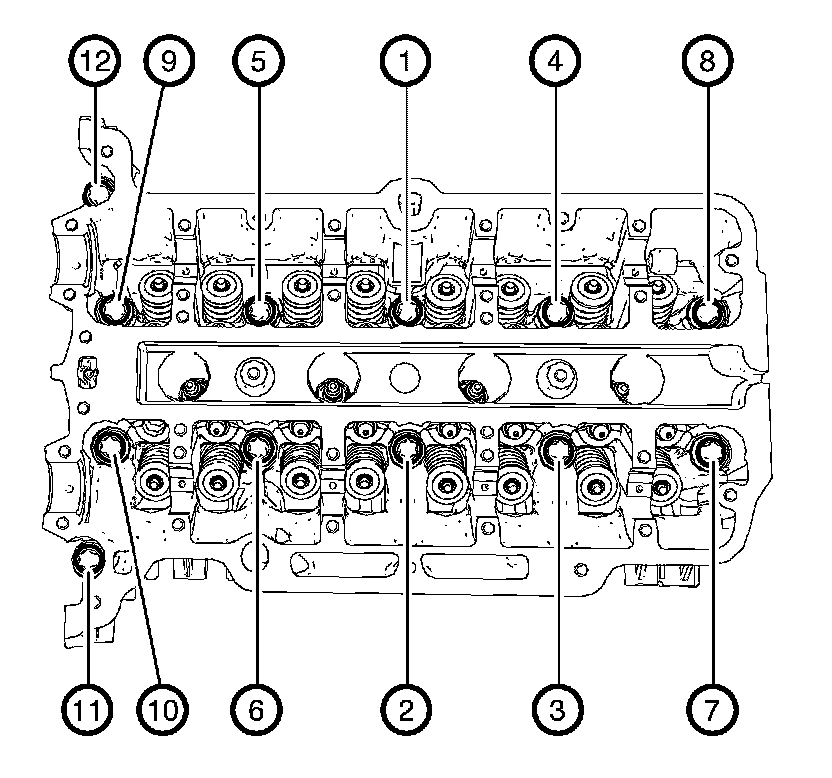

Tighten the cylinder head bolts in the sequence as shown and in the following order:
Tighten the cylinder head bolts to 35 Nm (26 lb ft)
Tighten the cylinder head bolts an additional 180°

Refer to Cylinder Head Replacement. Service and Repair

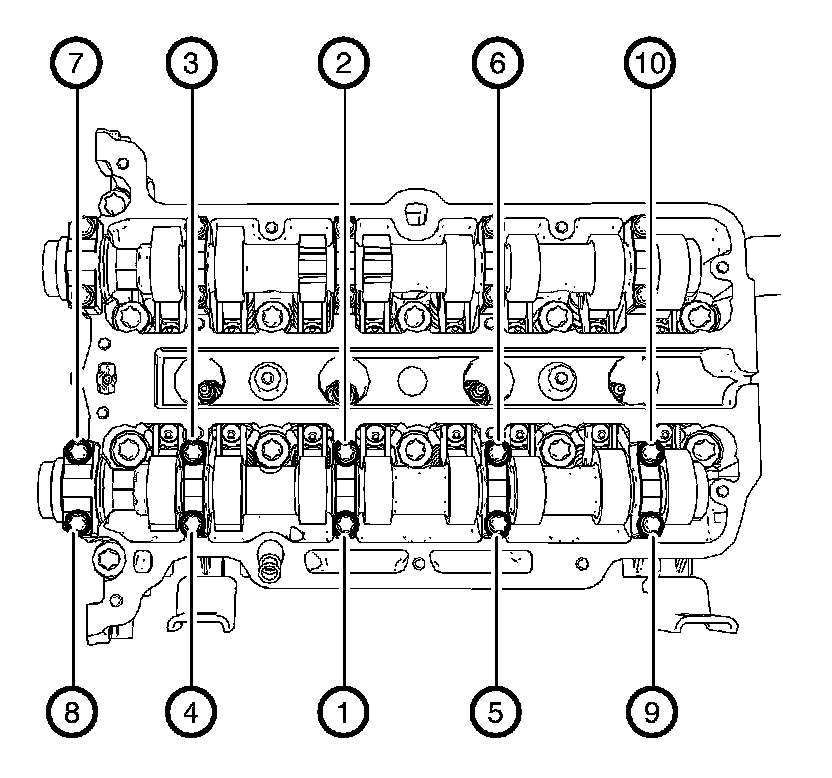

Camshaft Bearing Cap Bolts 8 Nm (71 lb in)

Refer to Camshaft Replacement. Service and Repair

Intake Manifold Service and Repair

Camshaft Gear Sprocket Service and Repair
