Intake Manifold Pressure and Air Temperature Sensor
Intake Manifold Pressure and Air Temperature Sensor
Component Connector End Views

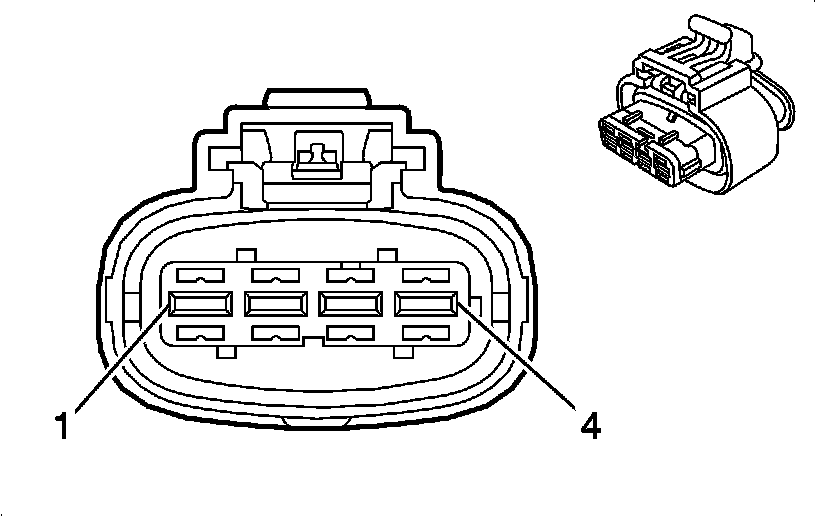

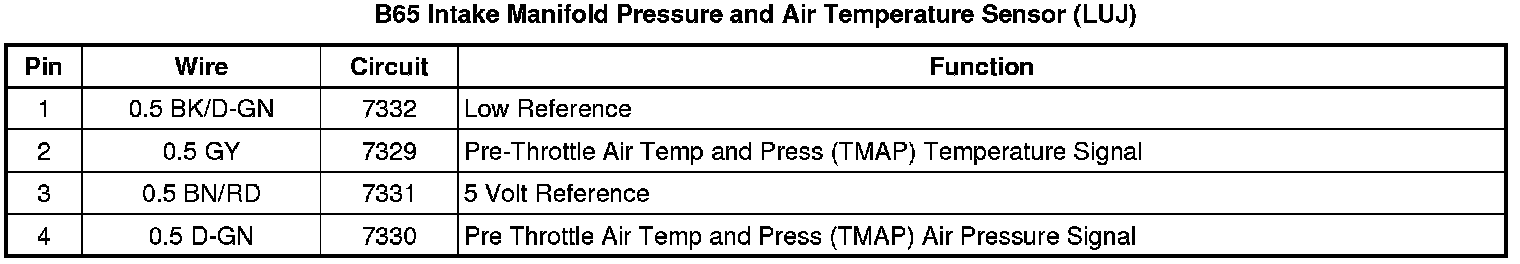

B65 Intake Manifold Pressure and Air Temperature Sensor (LUJ)
