Vehicle Speed Sensor (MF3 or MZ0)




Component Connector End Views

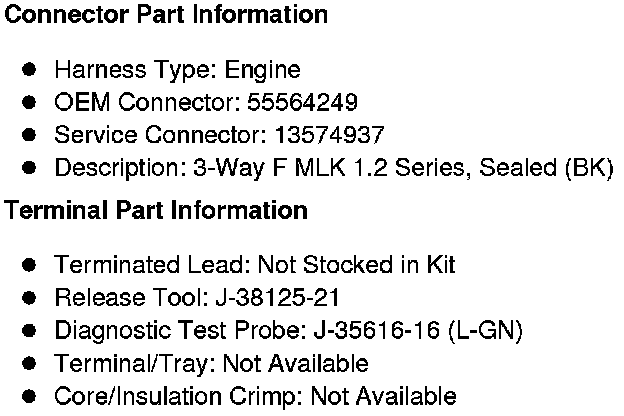

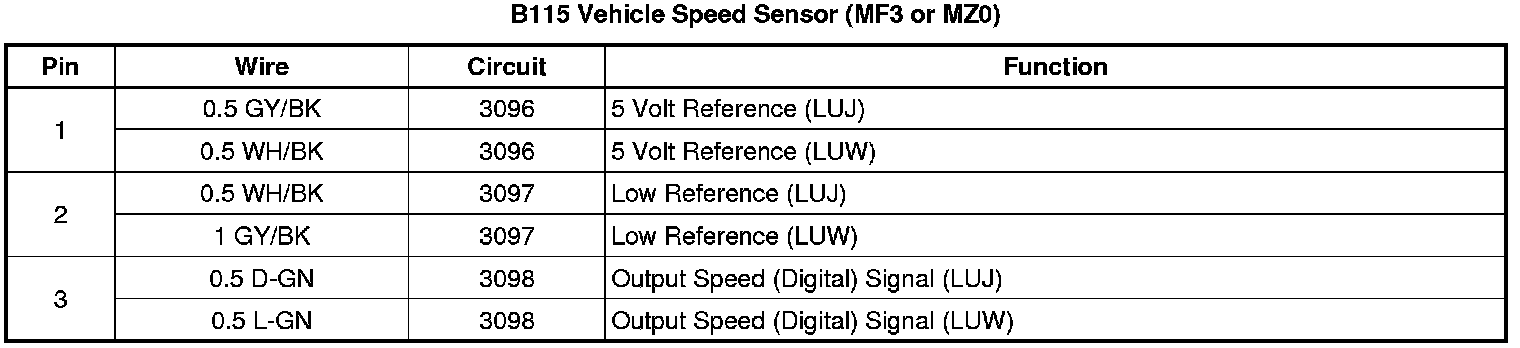

B115 Vehicle Speed Sensor (MF3 or MZ0)
