Side Marker Lamp - Left Front

Front of Vehicle/Engine Compartment Component Views

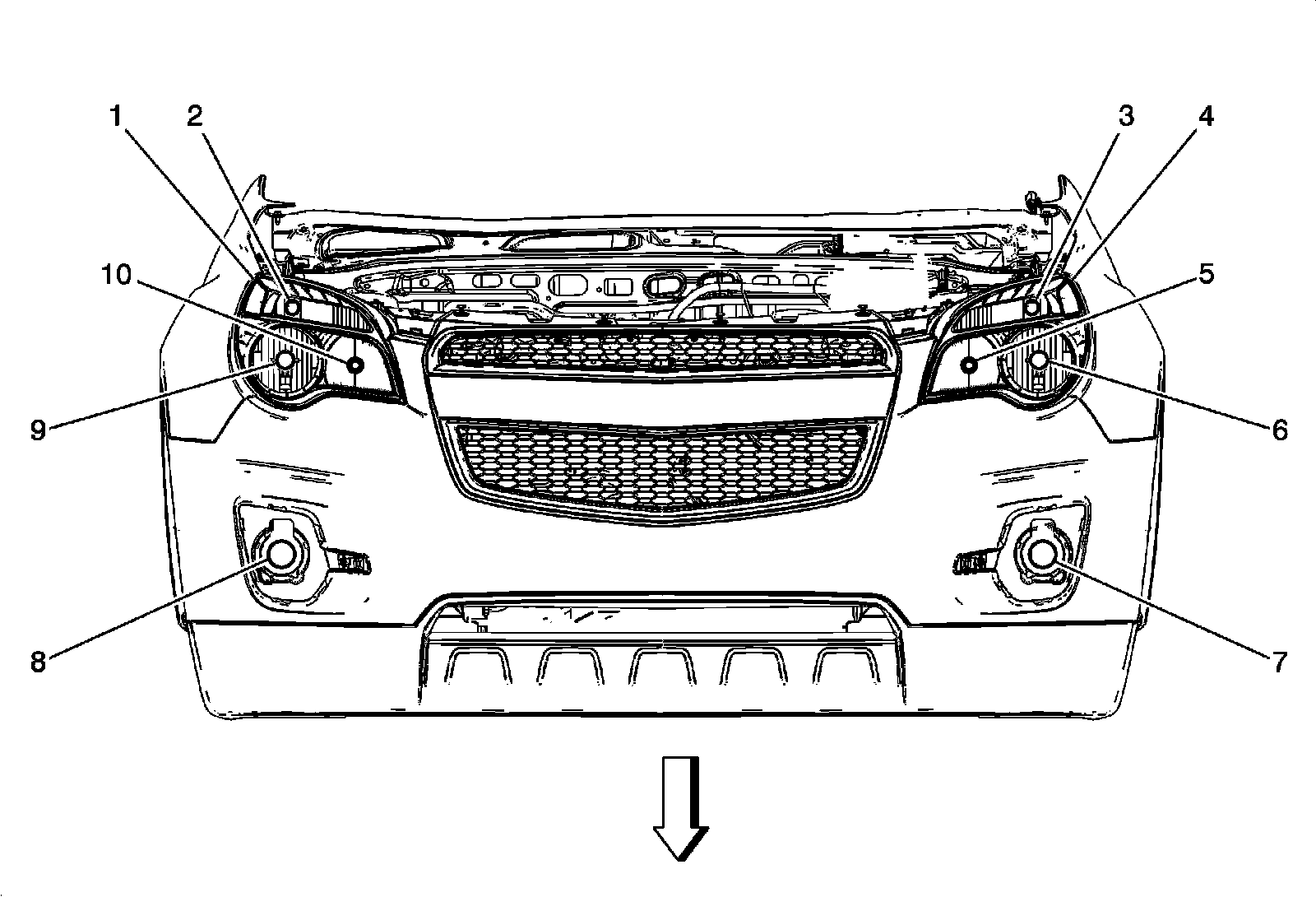

Front of Vehicle Components (Chevrolet)





1 - E2RF Side Marker Lamp - Right Front

2 - E4P Park/Turn Signal Lamp - Right

3 - E4N Park/Turn Signal Lamp - Left

4 - E2LF Side Marker Lamp - Left Front

5 - E4E Headlamp - Left High Beam

6 - E4G Headlamp - Left Low Beam

7 - E29LF Fog Lamp - Left Front (T96)

8 - E29RF Fog Lamp - Right Front (T96)

9 - E4H Headlamp - Right Low Beam

10 - E4F Headlamp - Right High Beam
