Steering Wheel Air Bag Coil X1
Steering Wheel Air Bag Coil X1

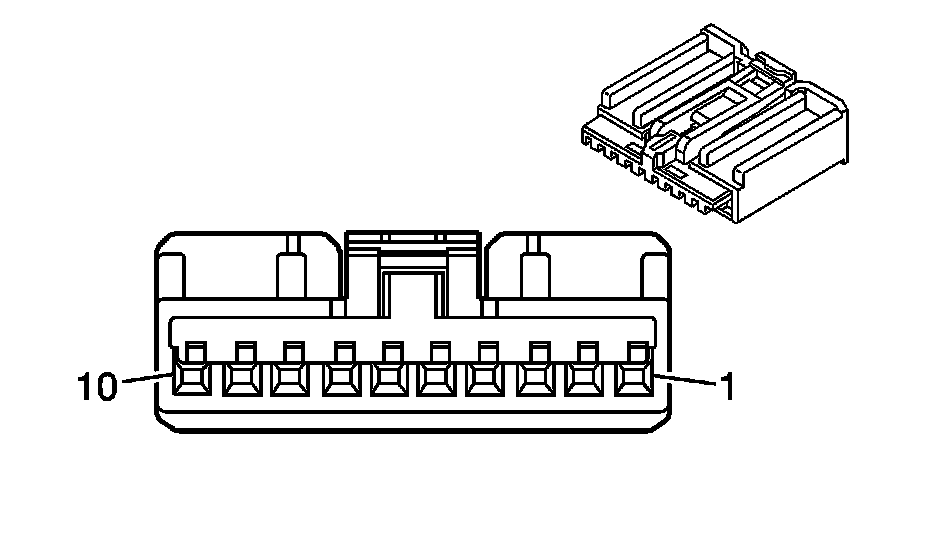

Component Connector End Views

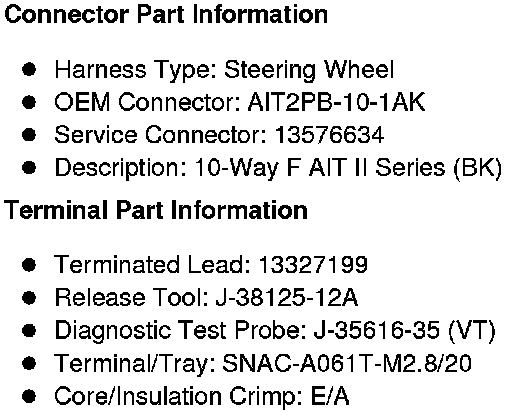

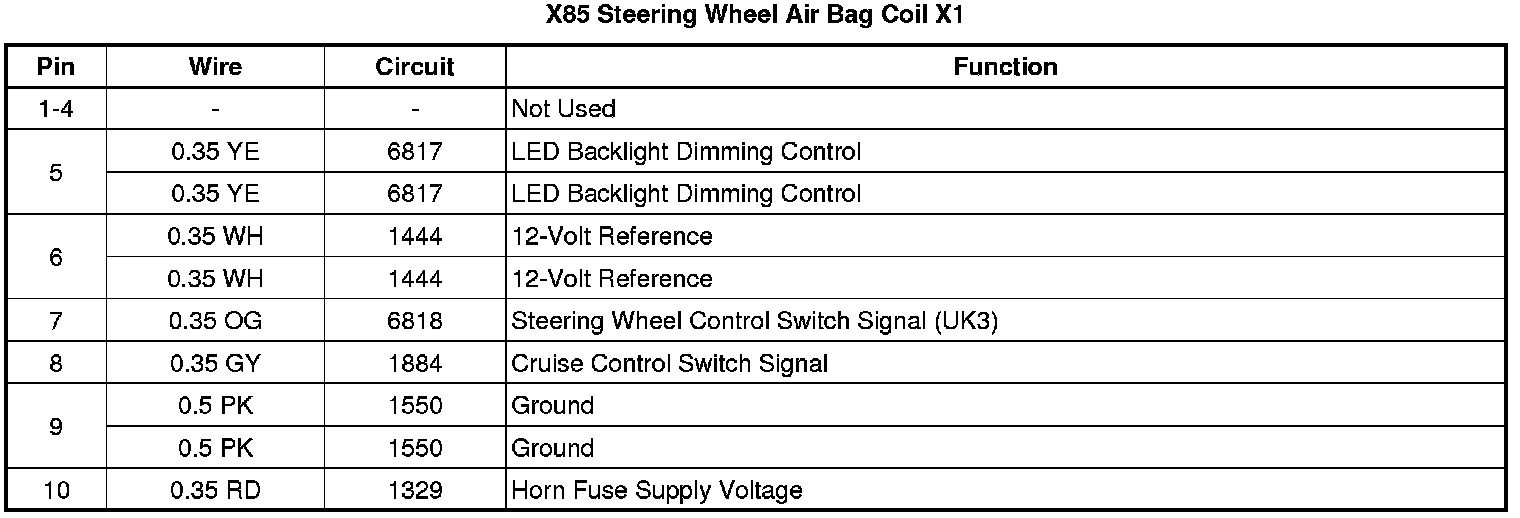

X85 Steering Wheel
Air Bag
Coil X1
