Ambient Temperature Sensor / Switch HVAC
Ambient Temperature Sensor / Switch HVAC

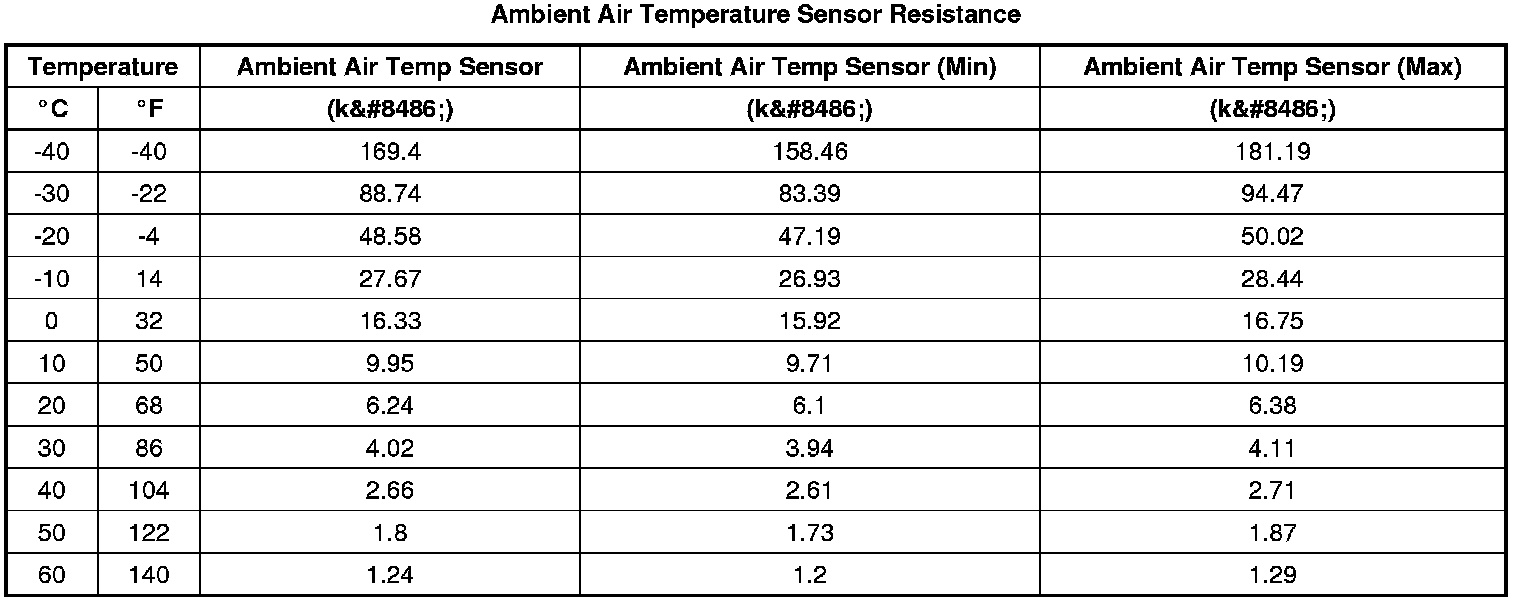

Ambient Air Temperature Sensor Resistance
