Home >> Chevrolet >> 2013 >> Equinox AWD L4-2.4L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 6T70/6T75 - Automatic Transmission >> Repair Instructions >> Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation

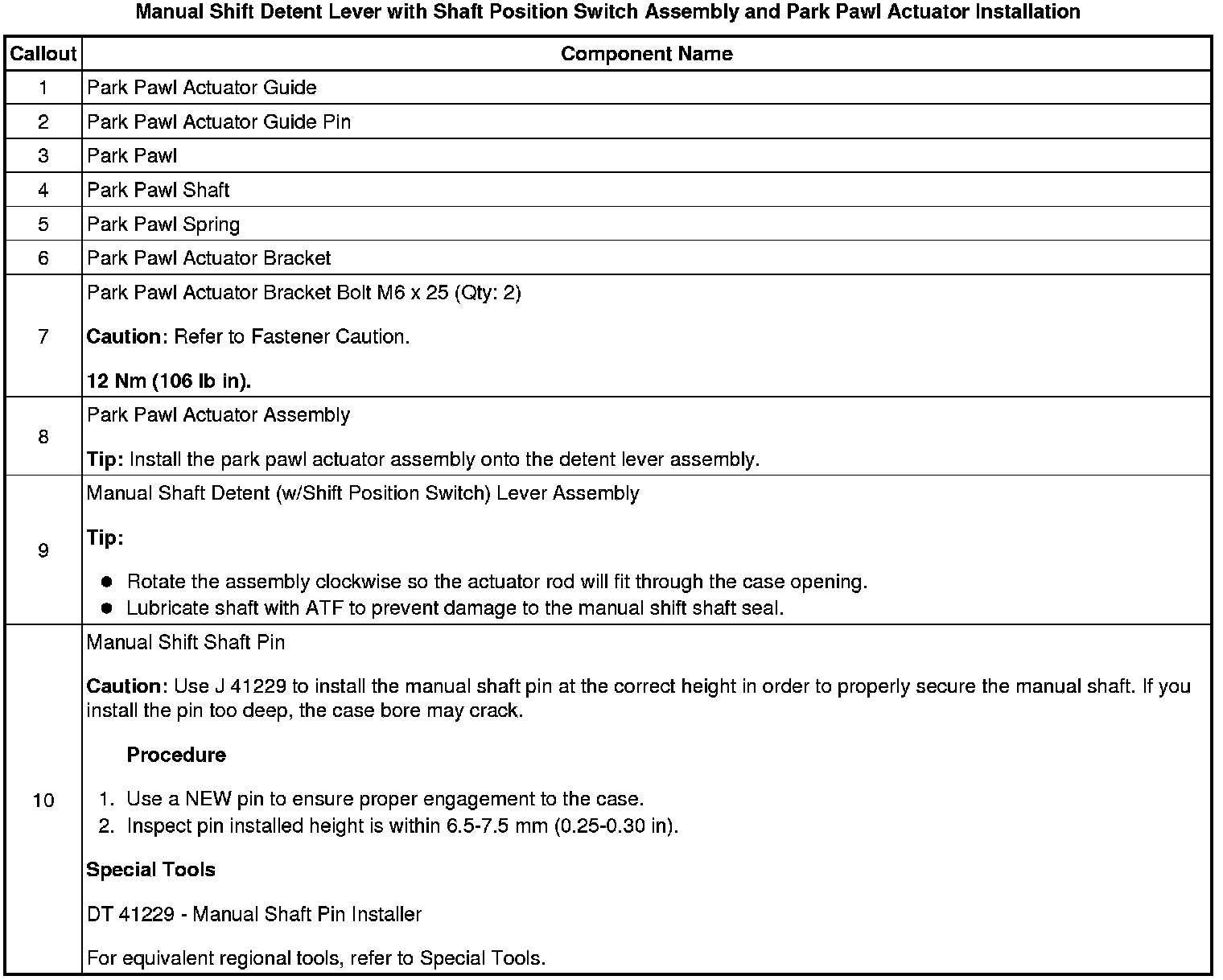

Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation




Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation
