B2555
DTC B2555
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptor
DTC B2555 02
- Passenger Compartment Lamp Control Circuit Short to Ground

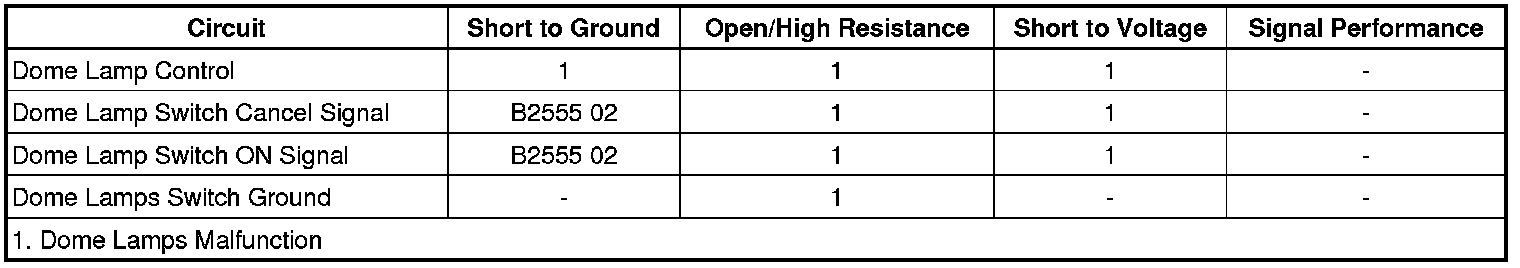

Diagnostic Fault Information
Circuit/System Description
The dome lamp switch has 3 positions: DOOR, OFF, and ON. The ON position provides a ground for continuous operation and the dome lamp will remain illuminated until the switch is placed in either the DOOR or OFF position. When in the DOOR position, the dome lamp operation is controlled by the body control module (BCM). When any door is opened, the door ajar switch contacts close and the BCM receives a door-open input. The BCM illuminates the dome lamp when any door is opened or a door lock/unlock request is activated with the key fob. After all doors have been closed, the dome lamp will remain illuminated approximately 3 seconds after the last door closes. When the driver places the dome lamp switch in the OFF position, the dome lamp will be disabled. In the event that the dome lamp were to remain illuminated for more than 10 minutes with the ignition switch in the OFF position and no doors opened, the BCM will deactivate the dome lamp control circuit to prevent total battery discharge.
Conditions for Running the DTC
Battery voltage must be between 9-16 V.
Conditions for Setting the DTC
* The BCM detects a short to ground in the dome lamp switch Cancel signal circuit.
* The BCM detects a short to ground in the dome lamp switch ON signal circuit.
Actions Taken When the DTC Sets
The dome lamps cannot be turned off when any door is in the open or ajar position.
Conditions for Clearing the DTC
* The condition responsible for setting the DTC no longer exists.
* A history DTC will clear once 100 consecutive malfunction free ignition cycles have occurred.
Reference Information
Schematic Reference
Interior Lights Schematics Interior Lights Schematics
Connector End View Reference
Component Connector End Views Sunshade - Left Front
Description and Operation
Interior Lighting Systems Description and Operation Interior Lighting Systems
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Scan Tool Reference
Control Module References Control Module References for scan tool information
Circuit/System Testing
1. Ignition OFF, scan tool disconnected, all doors closed, all accessories OFF, disconnect the harness connector at the S12 dome lamp switch. It may take up to 2 minutes for all vehicle systems to power down.
2. Test for less than 15 ohms between the ground circuit terminal 1 and ground.
• If 15 ohms or greater
1. Ignition OFF.
2. Test for less than 2 ohms in the ground circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 15 ohms
3. Ignition ON.
4. Verify the scan tool Interior/Courtesy Lighting Master Switch parameter is Door.
• If Cancel
1. Ignition OFF, disconnect the X7 harness connector at the K9 body control module.
2. Test for infinite resistance between the signal circuit terminal 2 and ground.
• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance, replace the K9 body control module.
• If On
1. Ignition OFF, disconnect the X7 harness connector at the K9 body control module.
2. Test for infinite resistance between the signal circuit terminal 3 and ground.
• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance, replace the K9 body control module.
• If Door
5. Install a 3 A fused jumper wire between the signal circuit terminal 2 and the ground circuit terminal 1.
6. Verify the scan tool Interior/Courtesy Lighting Master Switch parameter is Cancel.
• If not Cancel
1. Ignition OFF, disconnect the X7 harness connector at the K9 body control module, ignition ON.
2. Test for less than 1 V between the signal circuit terminal 2 and ground.
• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V
3. Test for less than 2 ohms in the signal circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 body control module.
• If Cancel
7. Install a 3 A fused jumper wire between the signal circuit terminal 3 and the ground circuit terminal 1.
8. Verify the scan tool Interior/Courtesy Lighting Master Switch parameter is On.
• If not On
1. Ignition OFF, disconnect the X7 harness connector at the K9 body control module, ignition ON.
2. Test for less than 1 V between the signal circuit terminal 3 and ground.
• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V
3. Test for less than 2 ohms in the signal circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 body control module.
• If On
9. Test or replace the S12 dome lamp switch.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the repair.
* Dome and Reading Lamp Switch Replacement Dome and Reading Lamp Switch Replacement
* Control Module References Control Module References for BCM replacement, programming, and setup
