X163

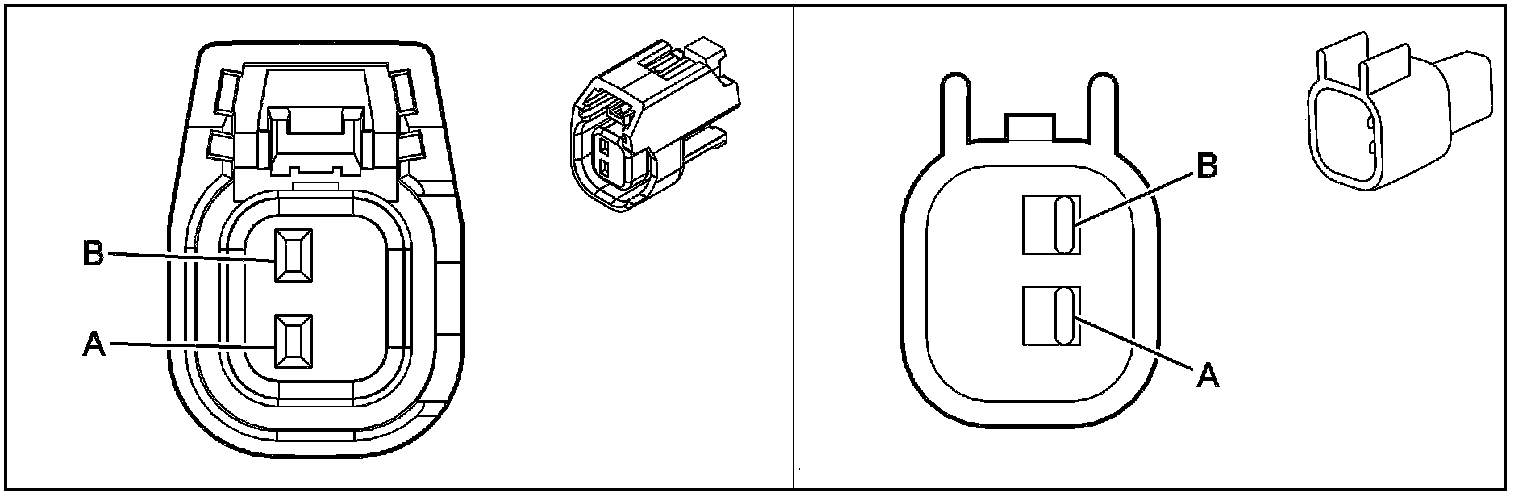

Inline Harness Connector End Views

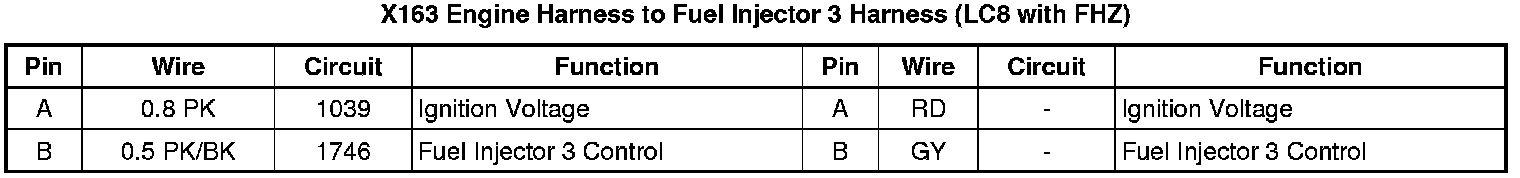

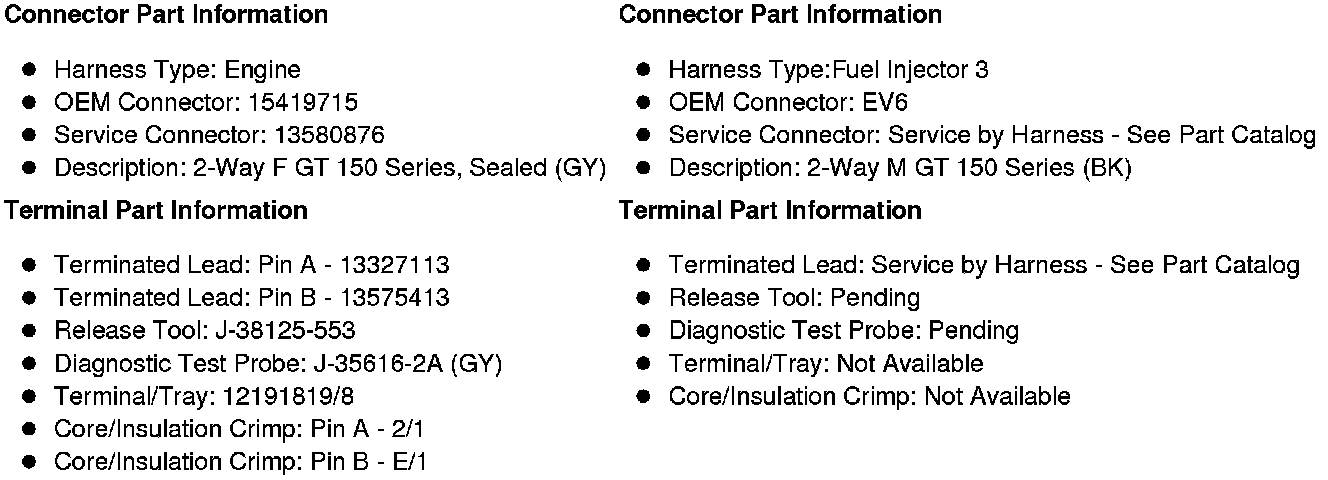

X163 Engine Harness to Fuel Injector 3 Harness (LC8 with FHZ)
















Inline Harness Connector End Views

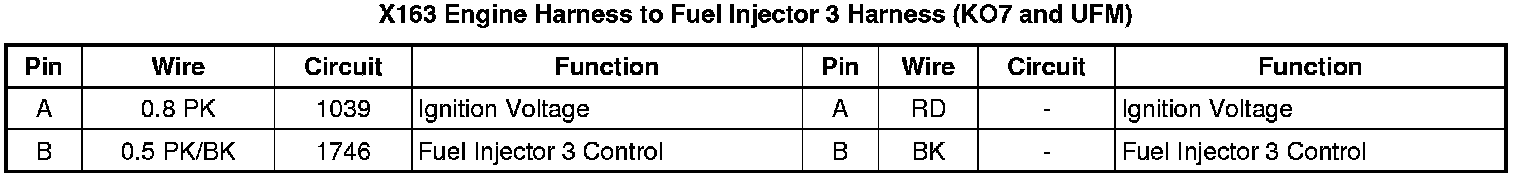

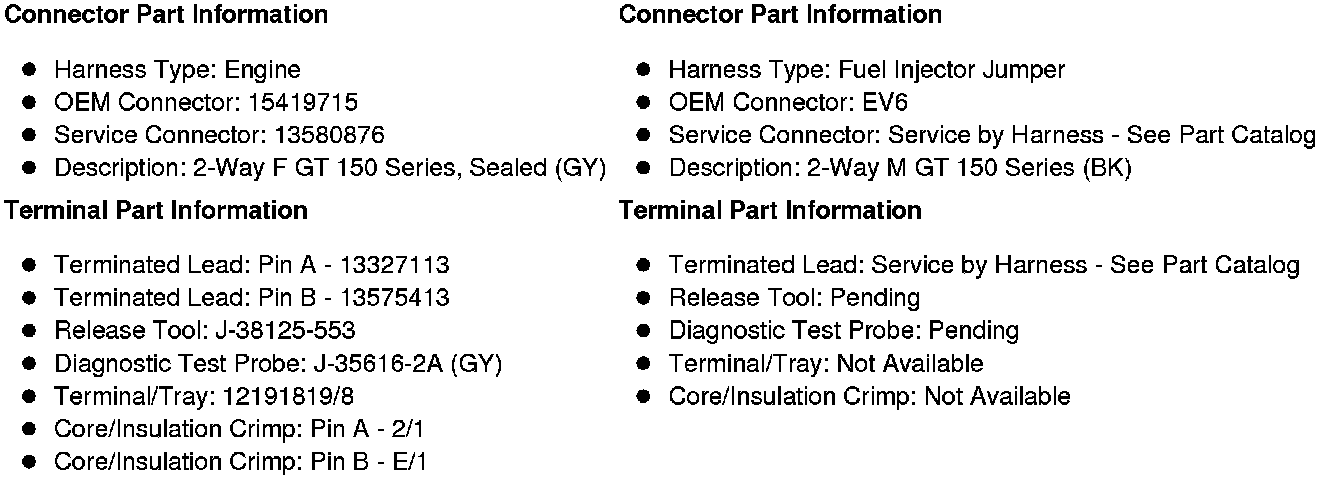

X163 Engine Harness to Fuel Injector 3 Harness (KO7 and UFM)
