Temperature Valve Actuator Replacement

Temperature Valve Actuator Replacement

Removal Procedure

1. Disconnect the air temperature actuator electrical connector.





2. Remove the air temperature actuator retaining screws.

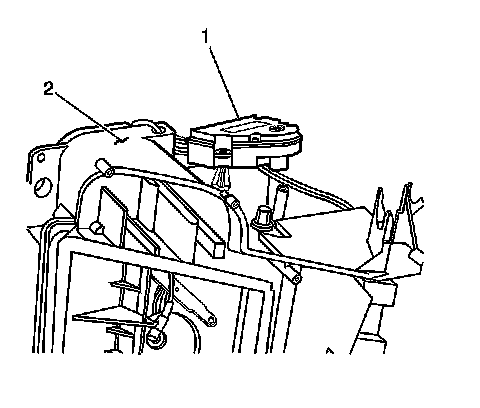

3. Remove the air temperature actuator (1) from the heater assembly (2).

Installation Procedure





1. Install the air temperature actuator (1) to the heater assembly (2).

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the air temperature actuator retaining screws and tighten to 1.9 Nm (17 lb in).

3. Connect the air temperature actuator electrical connector.
