Upper Left Side of the Engine

Powertrain Component Views

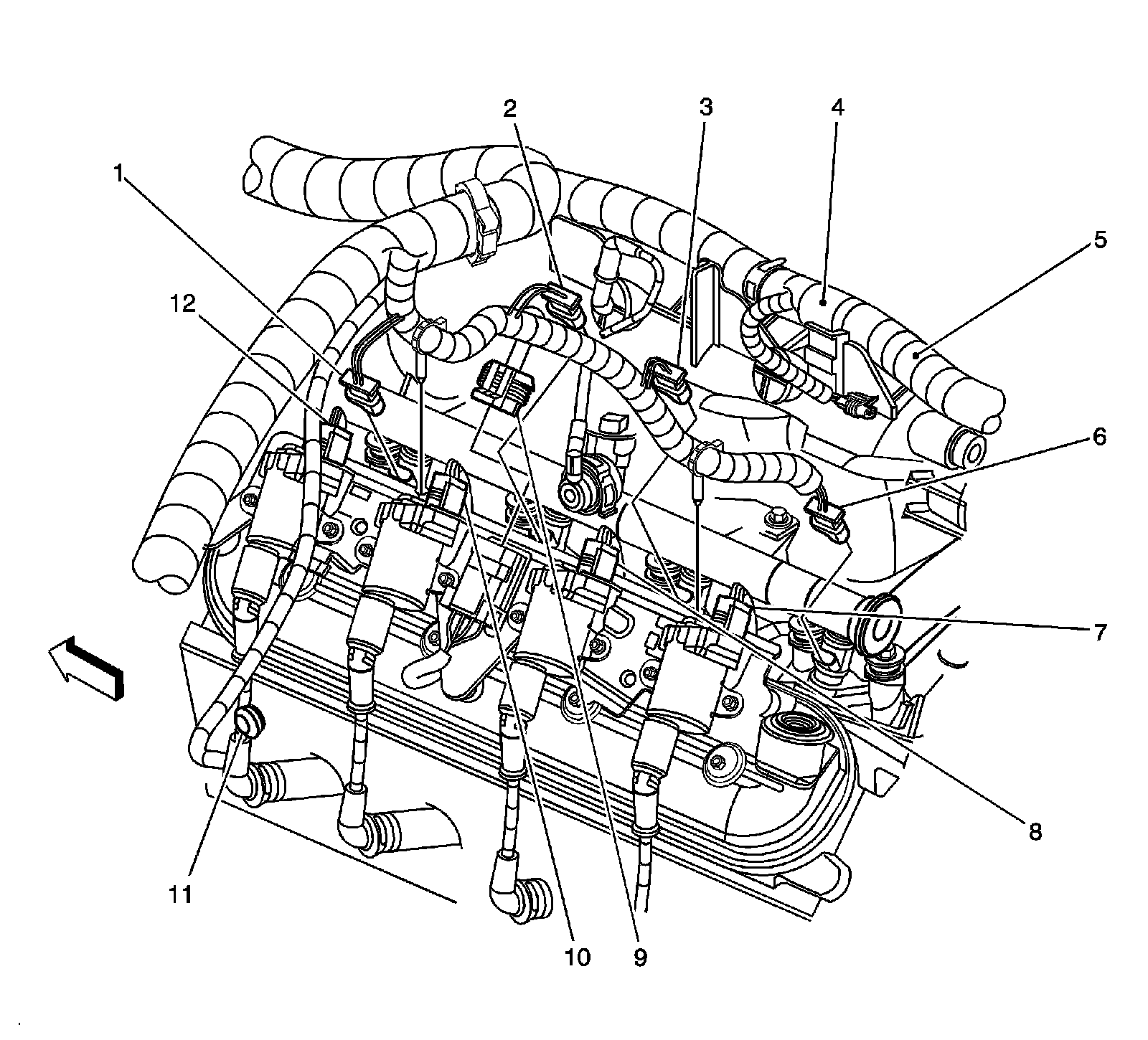

Upper Left Side of the Engine (LC8, LMF, L20, or L96)





1 - Fuel Injector 1 Connector

2 - Fuel Injector 3 Connector

3 - Fuel Injector 5 Connector

4 - J101

5 - J102

6 - Fuel Injector 7 Connector

7 - Ignition Coil 7 Connector

8 - Ignition Coil 5 Connector

9 - X126

10 - Ignition Coil 3 Connector

11 - Engine Coolant Temperature (ECT) Sensor Connector

12 - Ignition Coil 1 Connector
