Differential Oil Replacement (9.5LD Inch Axle)

Differential Oil Replacement (9.5LD Inch Axle)

Removal Procedure





1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.

2. Remove the drain plug.

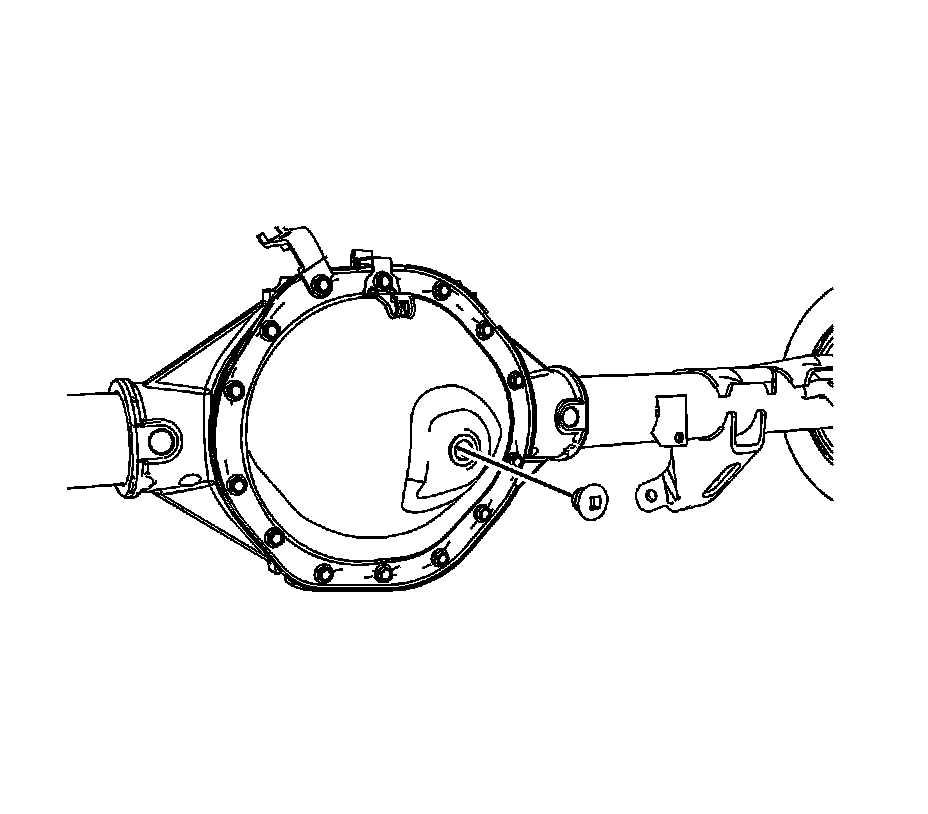

3. Remove the fill plug.

Installation Procedure





Caution:
Refer to Fastener Caution Fastener Caution.

1. Install the drain plug and tighten to 33 Nm (24 lb ft).

2. Fill the rear drive axle.

* Use the proper fluid, refer to Approximate Fluid Capacities [1][2]Maintenance.

* For the proper capacity, refer to Fluid and Lubricant Recommendations Fluids.





3. Install the fill plug and tighten to 33 Nm (24 lb ft).

4. Remove the support and lower the vehicle.
