Low and Reverse Clutch Piston Removal

Low and Reverse Clutch Piston Removal

Special Tools

* J 23327-1 - Forward Clutch Spring Compressor (Bridge)

* J 34627 - Snap Ring Remover and Installer

* J-42628 - Plate

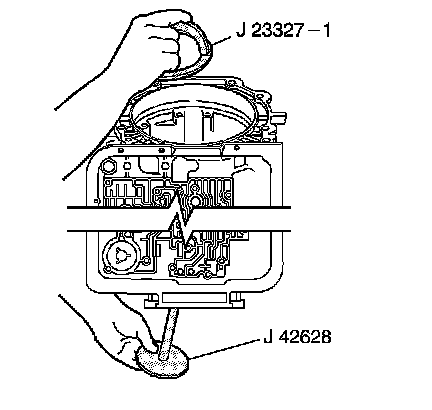

1. Install the J 23327-1 - compressor (bridge) and the J-42628 - plate.





2. Tighten the J 23327-1 - compressor (bridge).

3. Remove the low and reverse clutch retainer ring (693) using the J 34627 - remover and installer.

4. Remove the low and reverse clutch spring assembly (694).

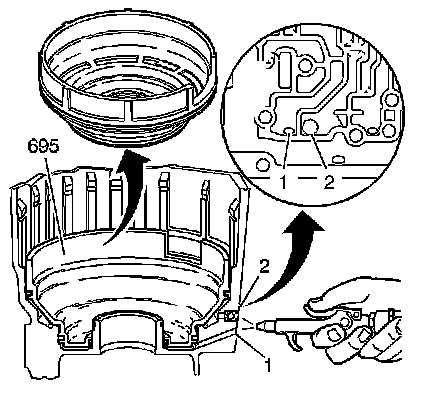

5. Blow compressed air into the case passage to remove the low and reverse clutch piston (695).

* (1) LO Feed Passage

* (2) REV Feed Passage
