Lower Intake Manifold Cover Installation - Right Side

Lower Intake Manifold Cover Installation - Right Side





1. Apply a 2-3 mm wide by 0.5-1.5 mm high bead of GM P/N 12378521 (Canadian P/N 88901148) sealant on the intake manifold mating surface.

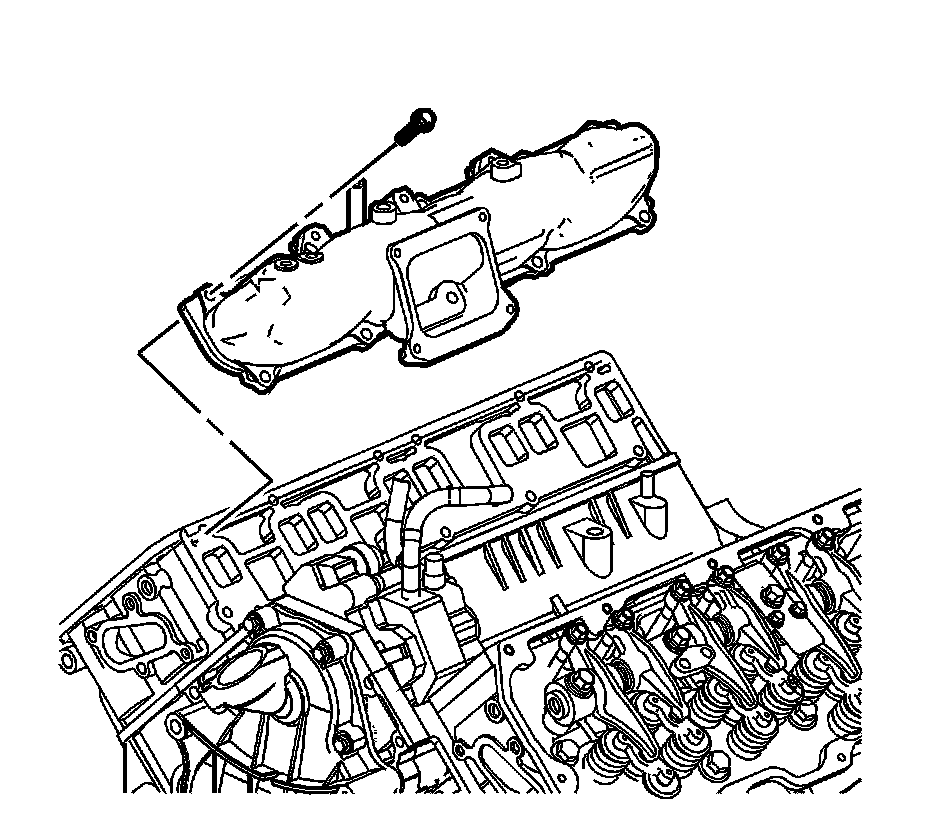

2. Install the intake manifold.

Right:

Caution:
Refer to Fastener Caution Fastener Caution.

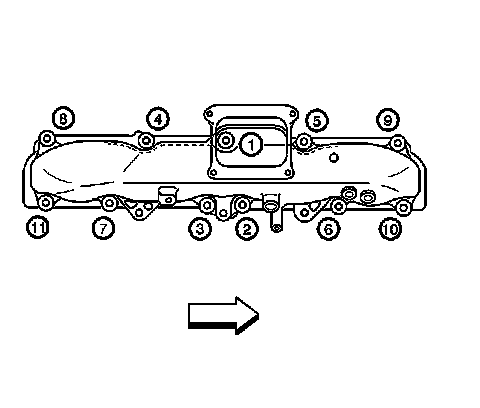

3. Install the intake manifold bolts and nuts and tighten to 25 Nm (18 lb ft).
