Lower Intake Manifold Cover Removal - Left Side

Lower Intake Manifold Cover Removal - Left Side

Special Tools

J 37228 - Seal Cutter

For equivalent regional tools, refer to Special Tools Special Tools.

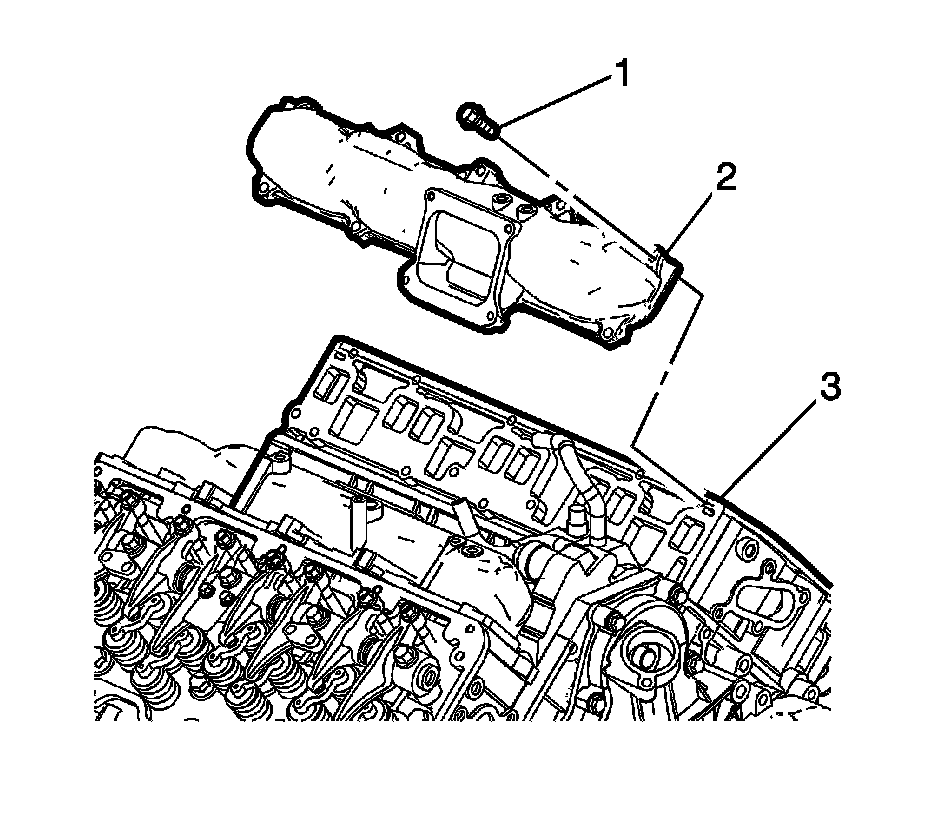

1. Remove the left intake manifold bolts (1). Do not forget to remove the bolt inside the intake manifold tube.

2. Separate the intake manifold from the cylinder head (3) using J 37228 - cutter.

3. Remove the left intake manifold (2).
