Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal Position Sensor Replacement

Removal Procedure

Caution:
Handle the electronic throttle control components carefully. Use cleanliness in order to prevent damage. Do not drop the electronic throttle control components. Do not roughly handle the electronic throttle control components. Do not immerse the electronic throttle control components in cleaning solvents of any type.





1. Remove the connector position assurance (CPA) retainer.

2. Disconnect the electrical connector from the accelerator pedal position (APP) sensor.

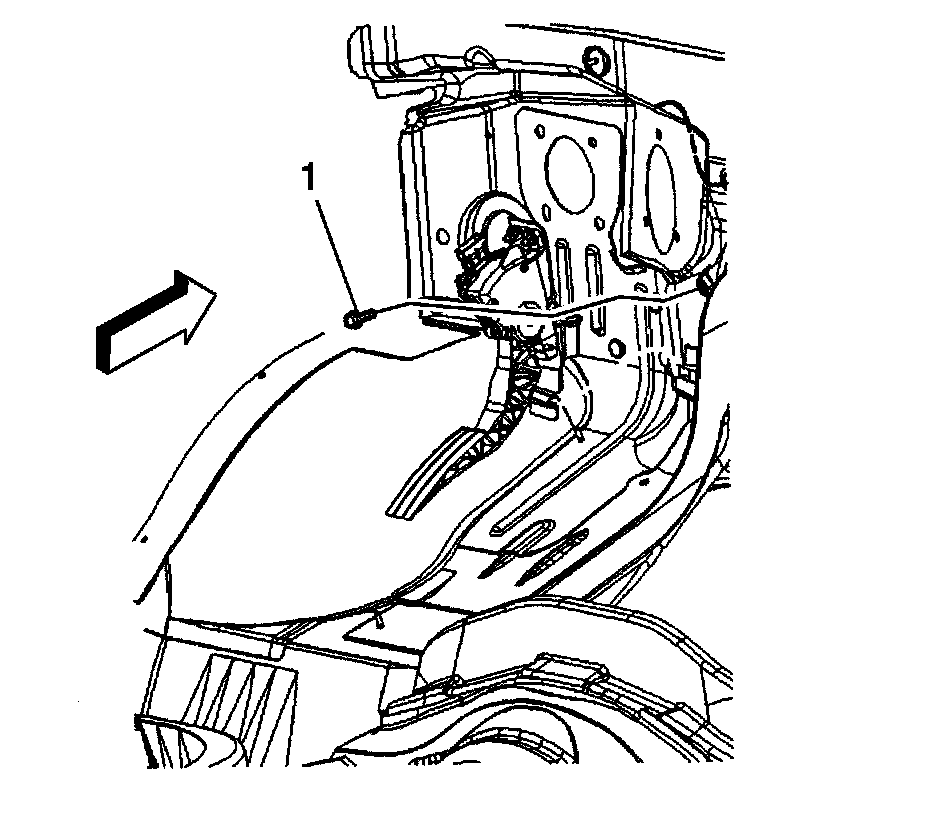

3. Remove the accelerator pedal bolt (1).

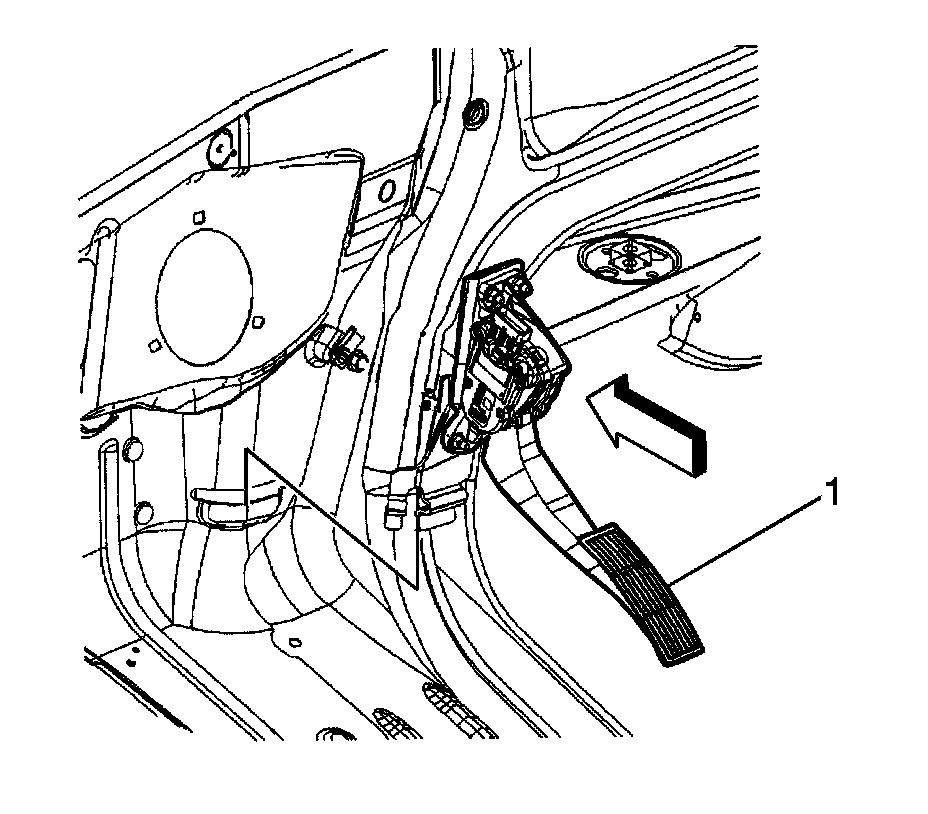

4. Remove the accelerator pedal assembly (1) from the dash panel.

Installation Procedure





1. Install the accelerator pedal assembly (1) to the dash panel.





Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the accelerator pedal bolt (1) and tighten to 33 Nm (24 lb ft).

3. Connect the electrical connector to the APP sensor.

4. Install the CPA retainer.

5. Connect a scan tool in order to test for proper throttle-opening and throttle-closing range.

6. Operate the accelerator pedal and monitor the throttle angles. The accelerator pedal should operate freely, without binding, between a closed throttle, and a wide open throttle (WOT).

7. Verify that the vehicle meets the following conditions:

* The vehicle is not in a reduced engine power mode.

* The ignition is ON.

* The engine is OFF.
