Low and Reverse Clutch Plate Installation
Low and Reverse Clutch Plate Installation
1. Install the waved plate.
2. Install the correct selective spacer plate (from the selection procedure).
3. Install the five fiber plate assemblies and four steel plates, starting with one fiber plate assembly and alternating with steel.

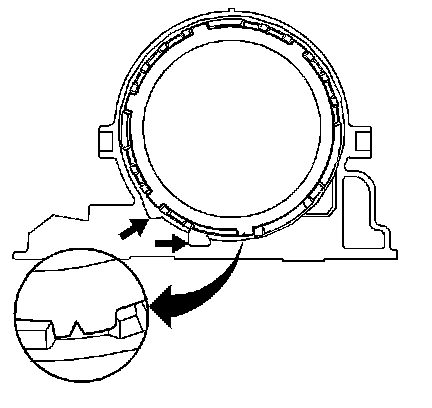

4. Index the steel plate splines in the case as shown.
