Door Lock/Indicator Schematics





Door Lock/Indicator Schematics

Indicators and Switches

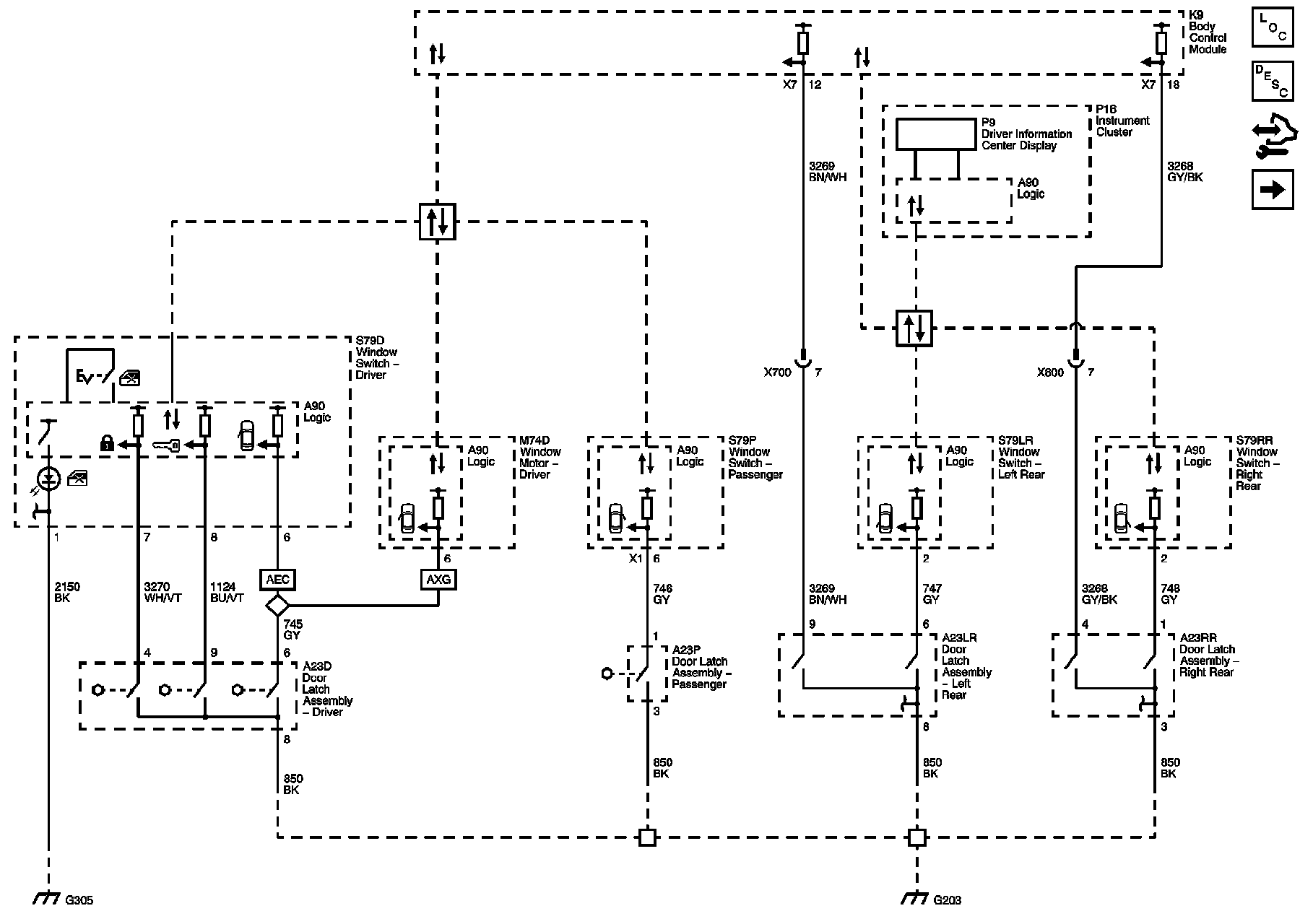

Switches

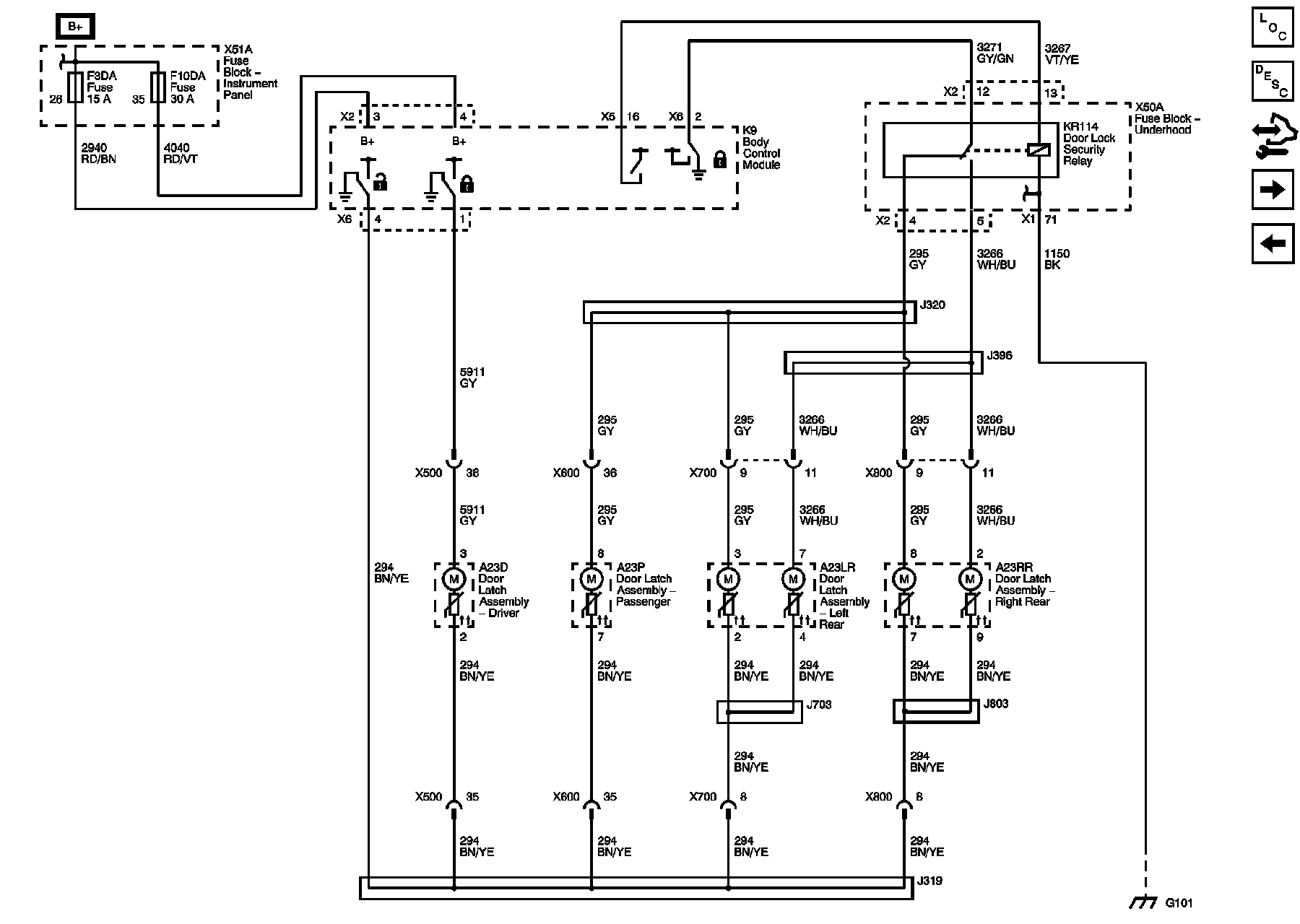

Actuators (without ATH)

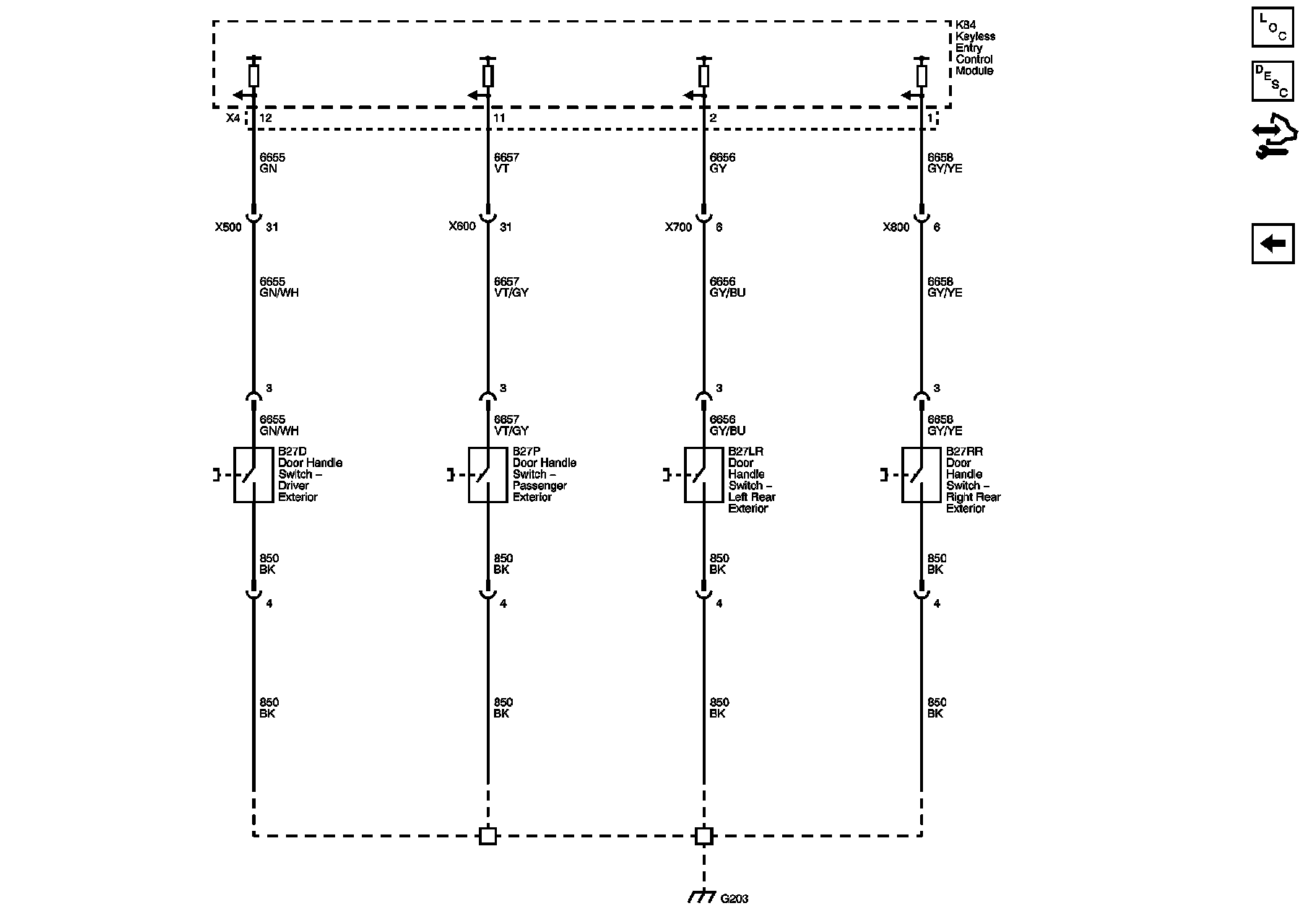

Door Handle Switches (ATS)
