Accent Lamp - Right Instrument Panel
Accent Lamp - Right Instrument Panel

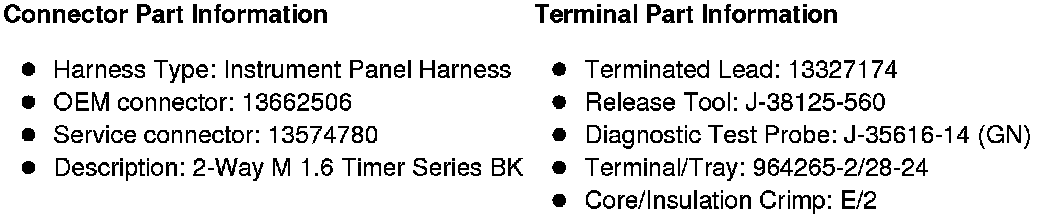

Component Connector End Views
E1H Accent Lamp - Right Instrument Panel
