Control Solenoid Valve Assembly X1 (MHH, MH8)

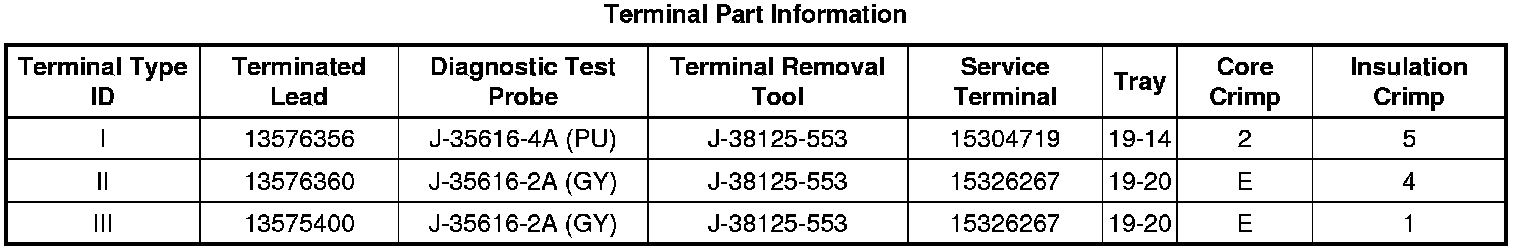

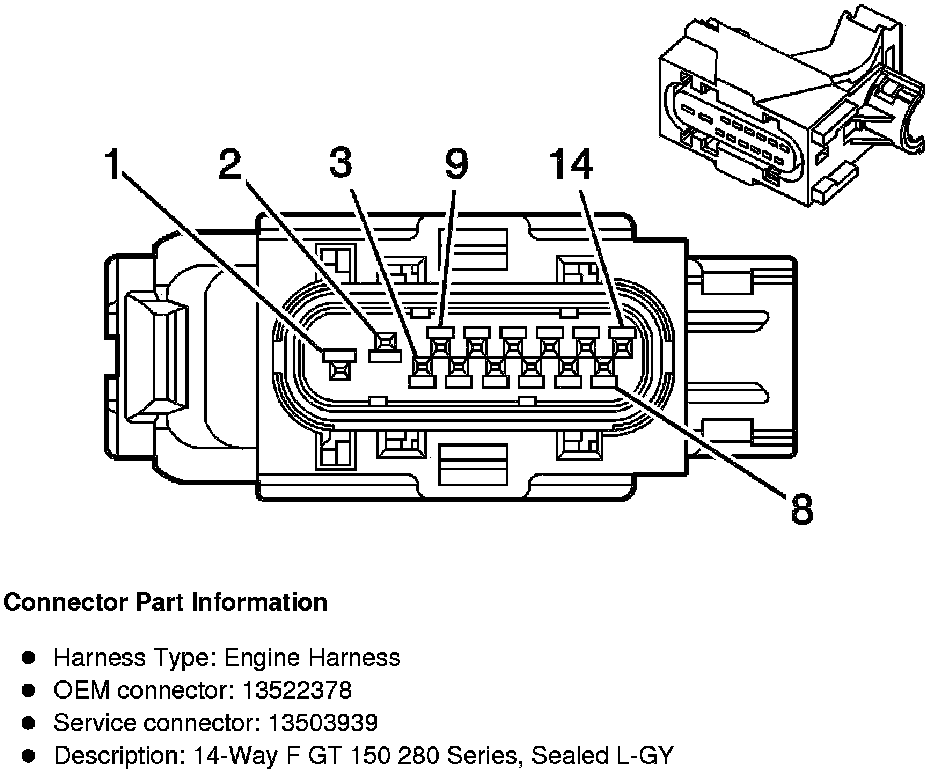

Component Connector End Views

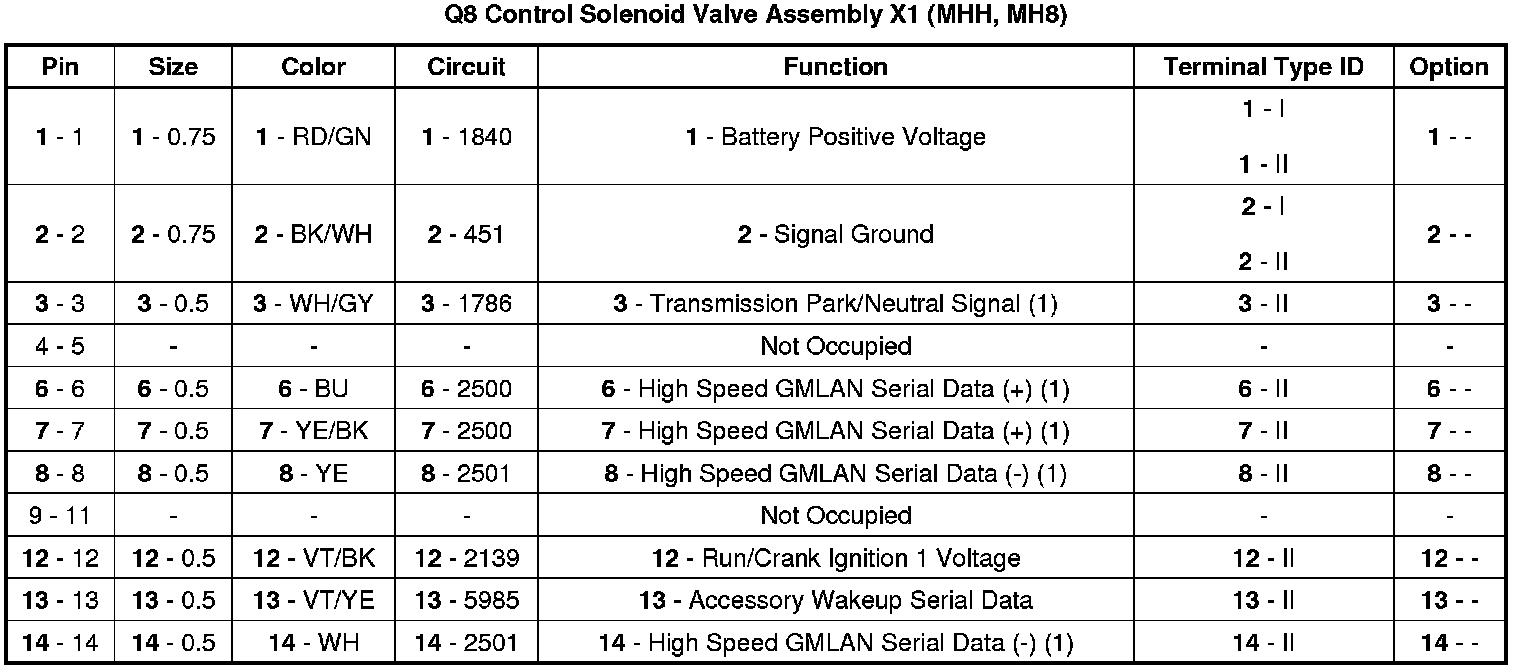

Q8 Control Solenoid Valve Assembly X1 (MHH, MH8)
