Multimedia Player Interface Module
Multimedia Player Interface Module

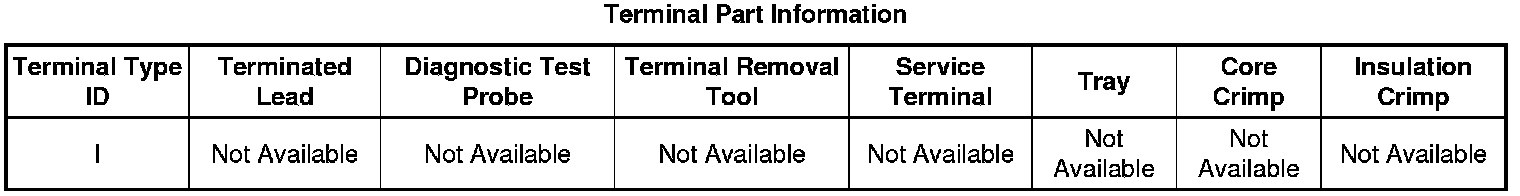

Component Connector End Views

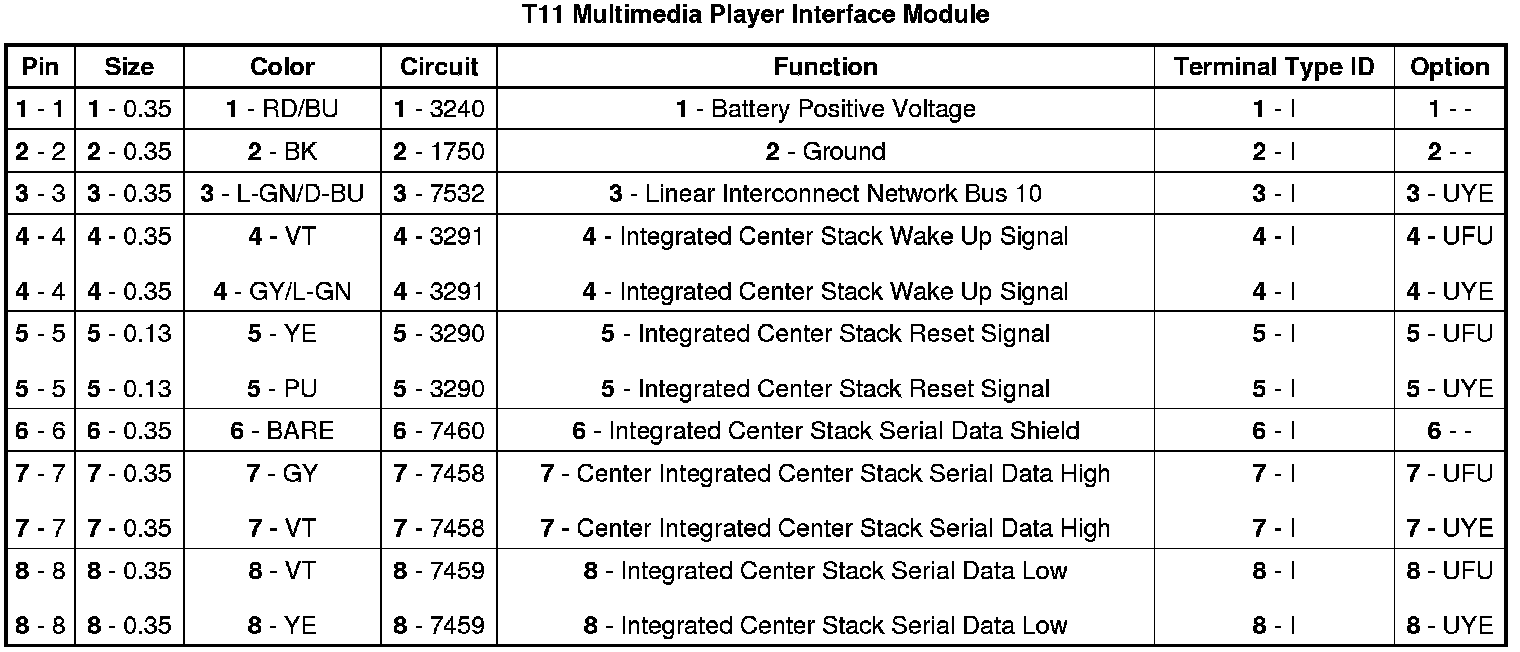

T11 Multimedia Player Interface Module
