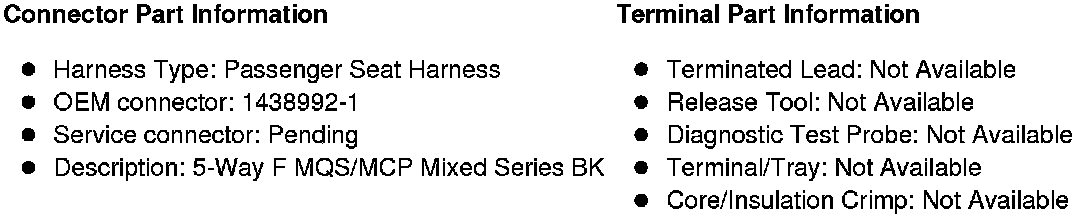

Seat Memory Control Module X1 (KA1 with A45)
Seat Memory Control Module X1 (KA1 with A45)

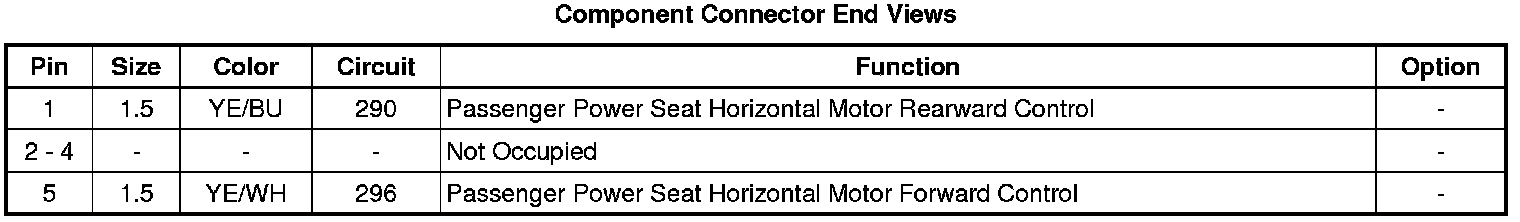

Component Connector End Views

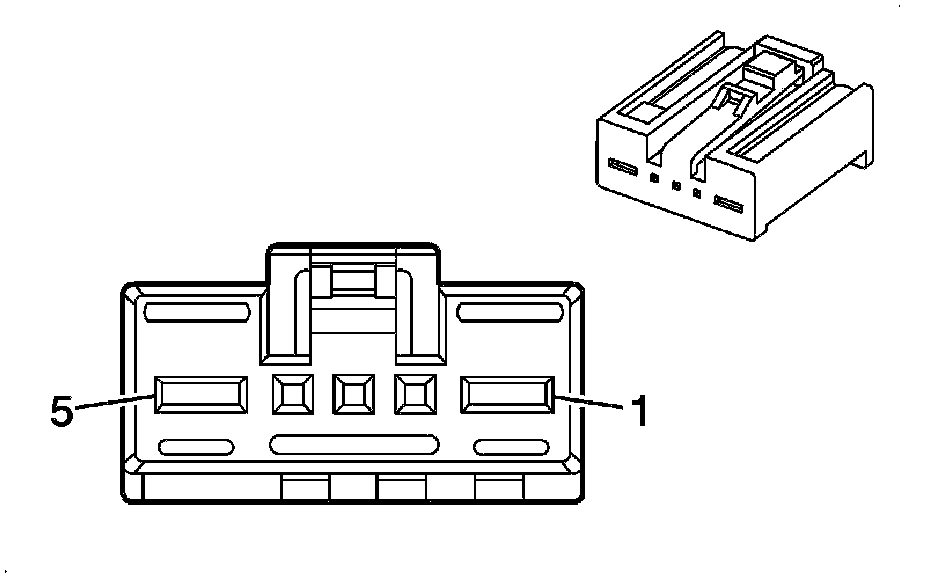

K40 Seat Memory
Control Module
X1 (KA1 with A45)
