X610
X610
Inline Harness Connector End Views

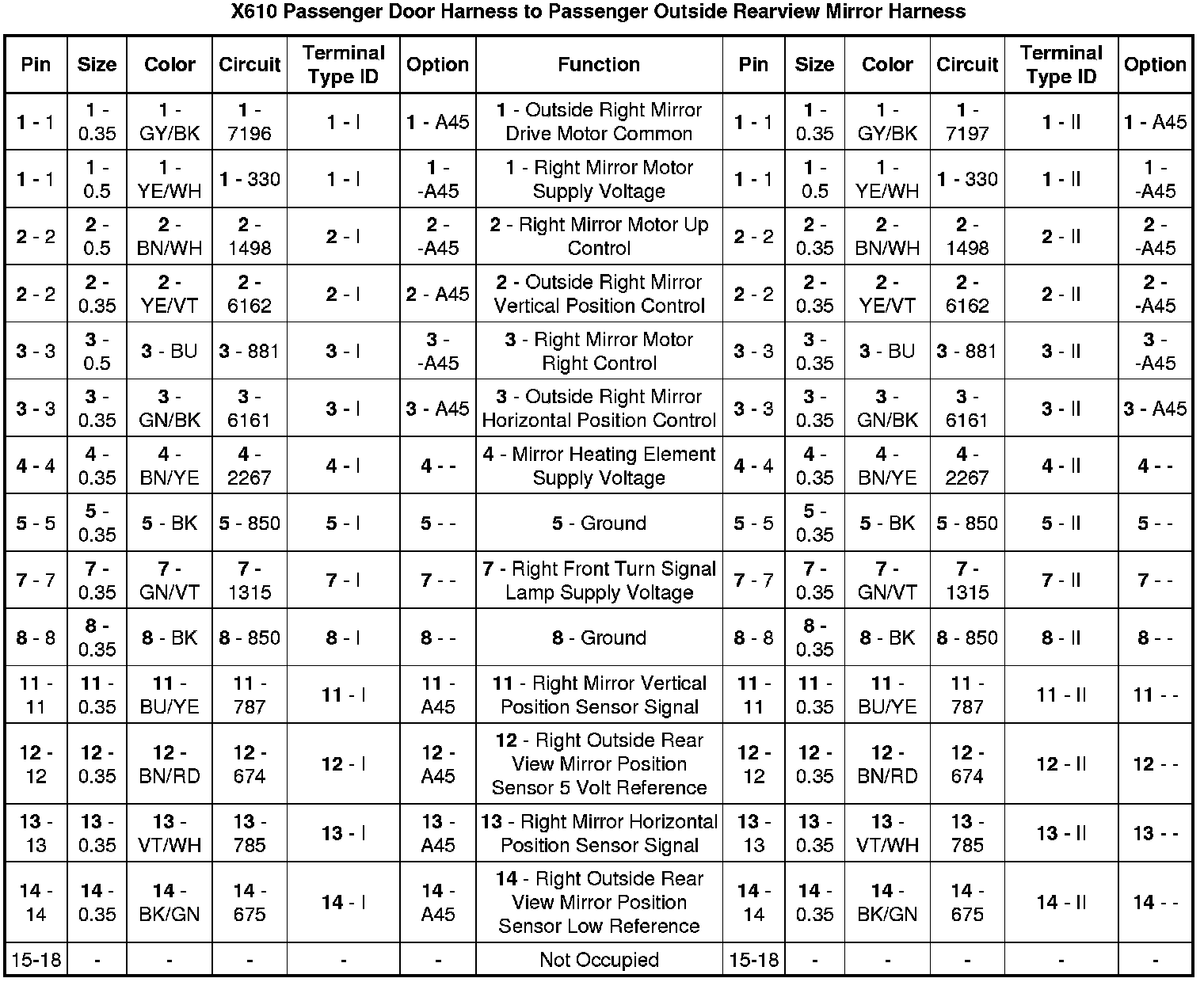

X610 Passenger Door Harness to Passenger Outside Rearview Mirror Harness
