Fuel Pump Driver Control Module





Component Connector End Views

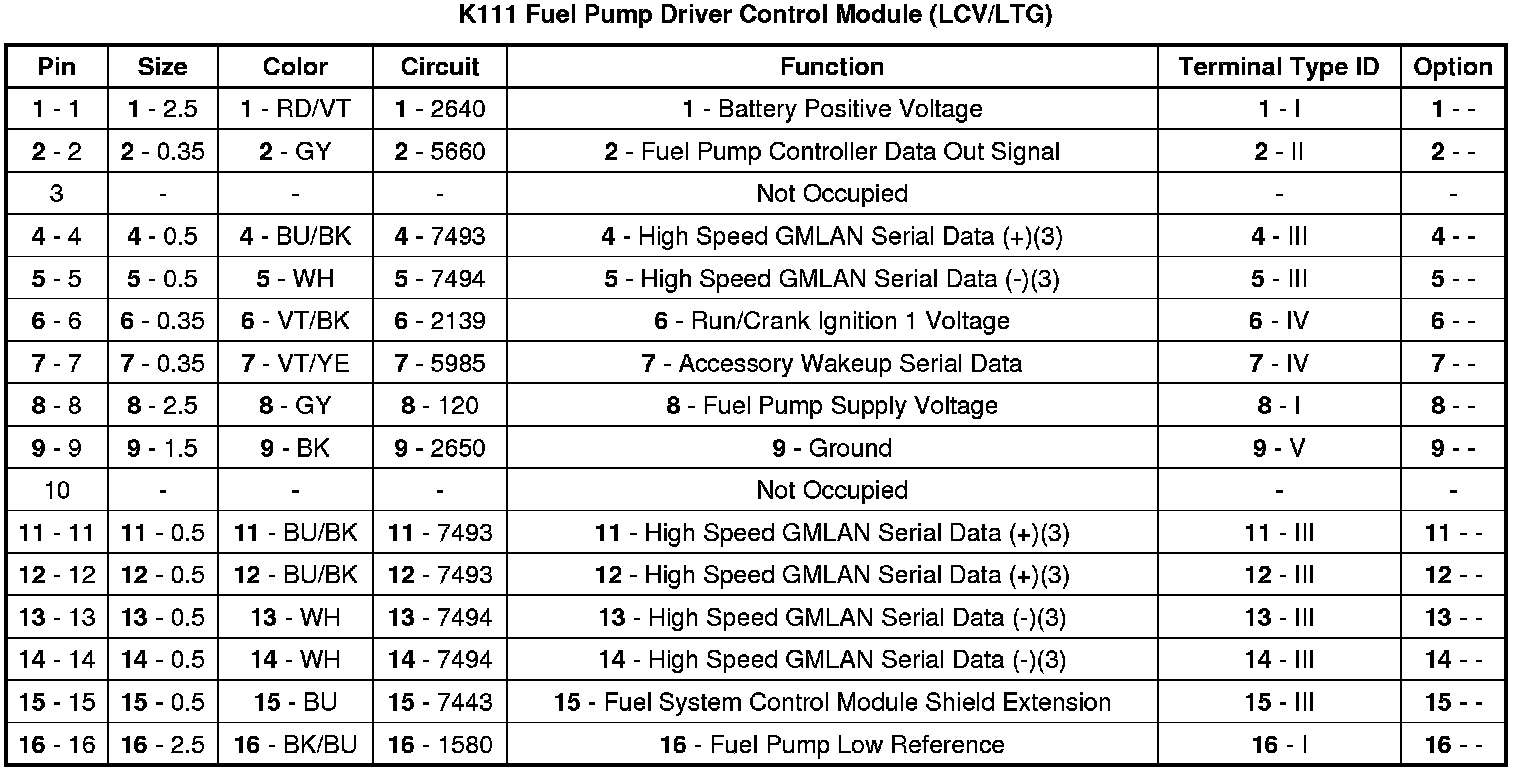

K111 Fuel Pump Driver Control Module (LCV/LTG)
