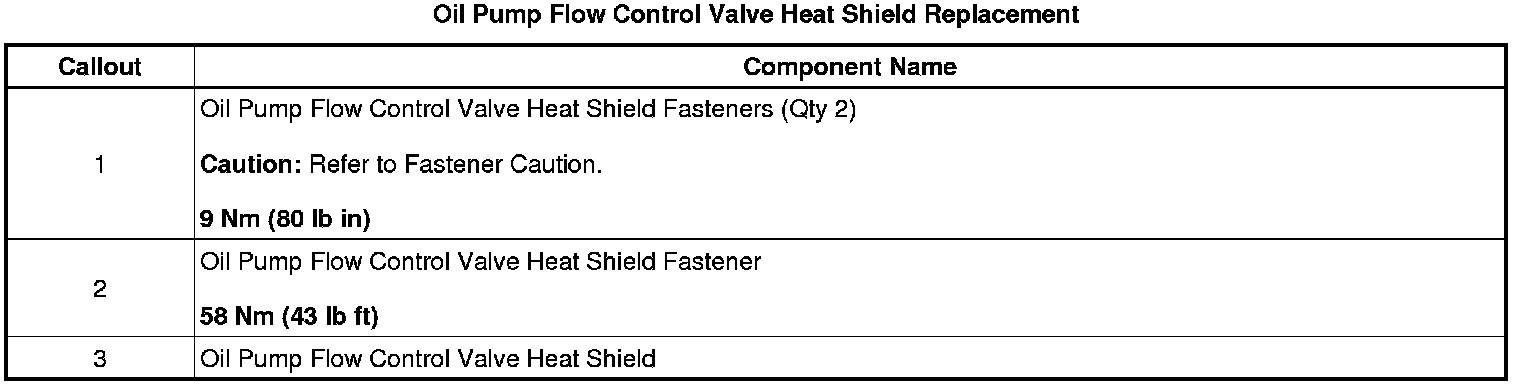

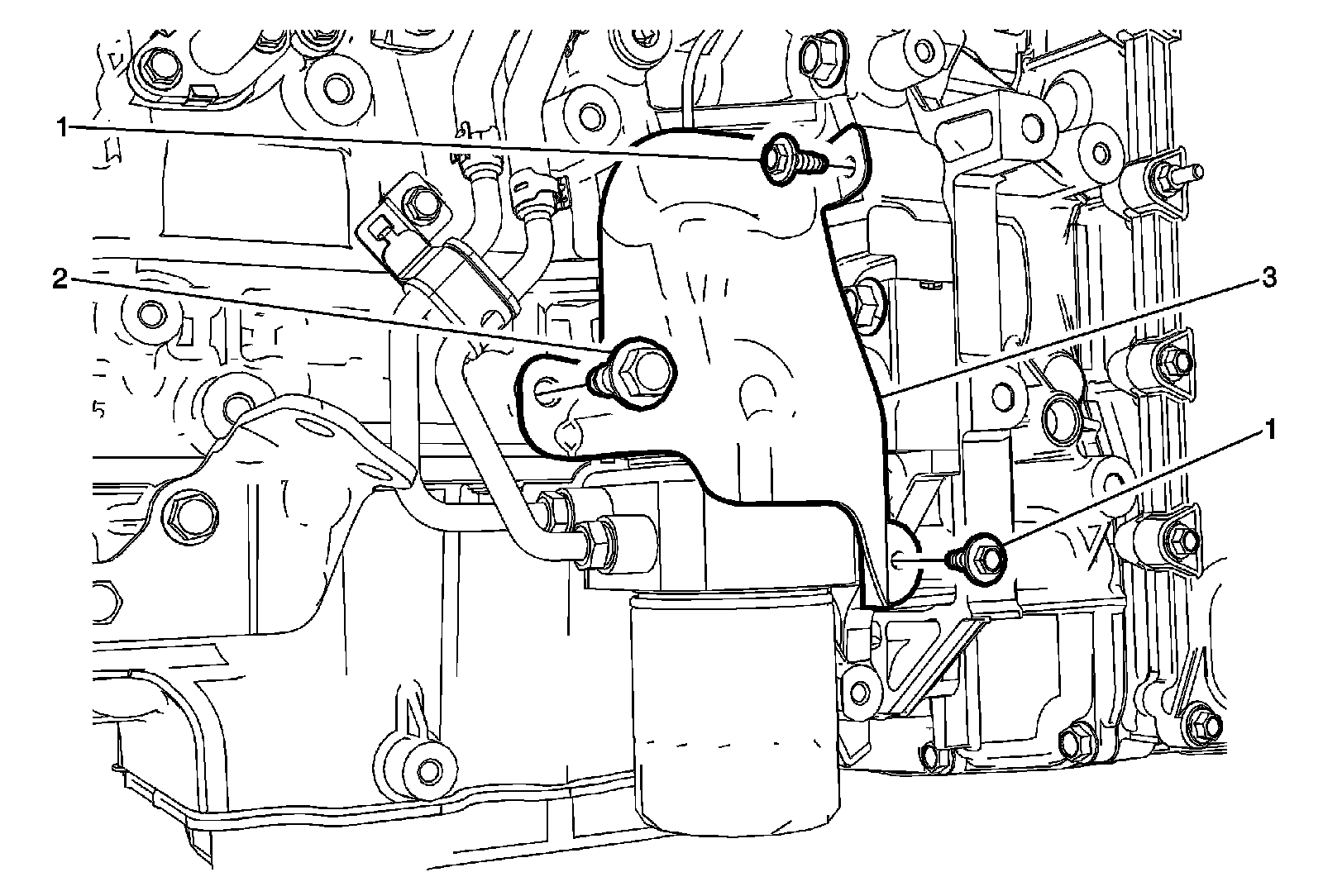

Oil Pump Flow Control Valve Heat Shield Replacement





Oil Pump Flow Control Valve Heat Shield Replacement
