Oil Pressure Sensor: Locations





Powertrain Component Views

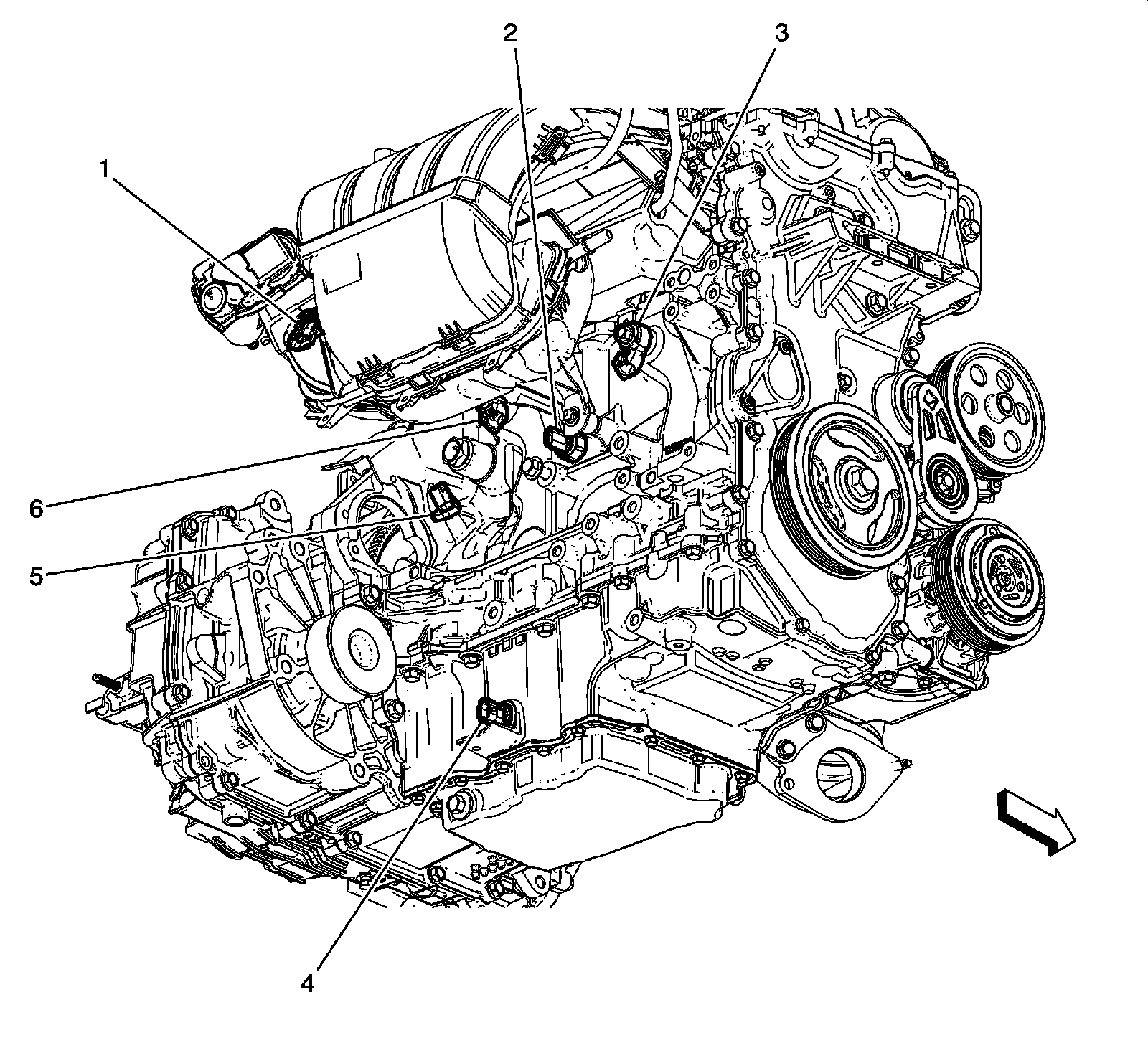

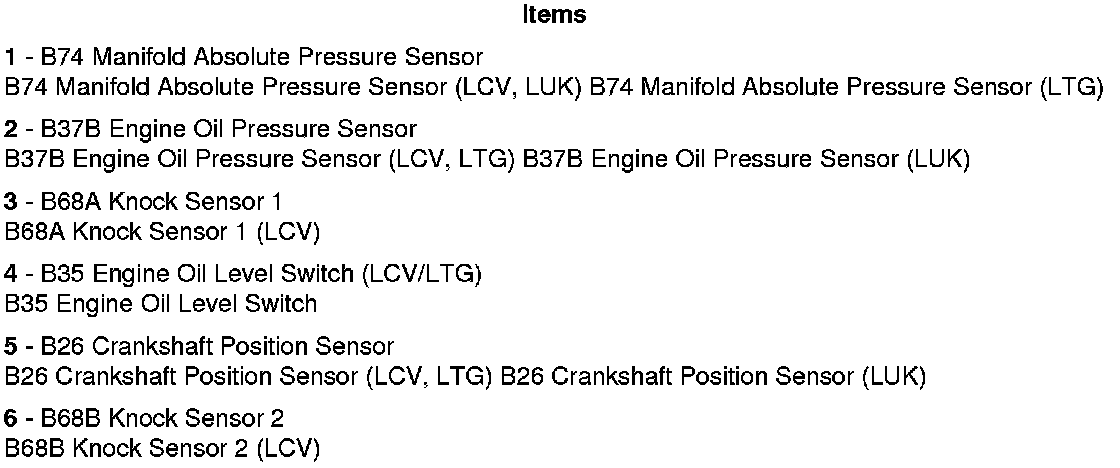

Lower Right Rear of Engine Components (LCV)
