Secondary Air Injection Check Valve Removal

Secondary Air Injection Check Valve Removal

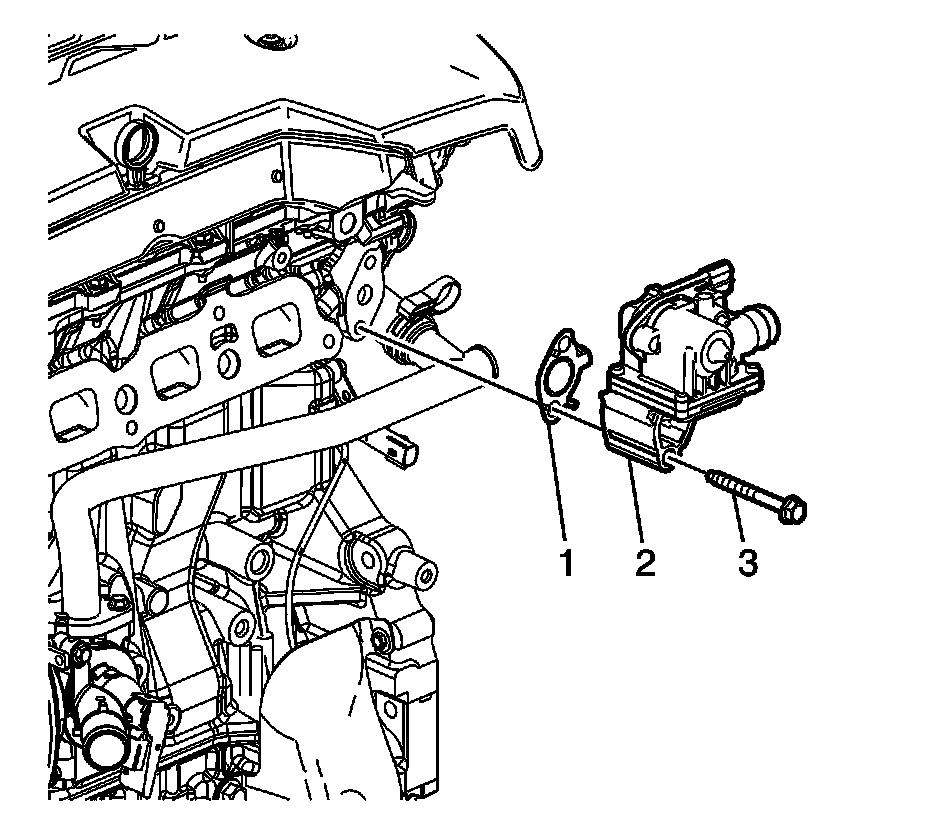

1. Remove the secondary air injection check valve bolts (3).

2. Remove the secondary air injection check valve assembly (2).

3. Remove and discard the check valve gasket (1).
