Thread Repair Specifications
Thread Repair Specifications

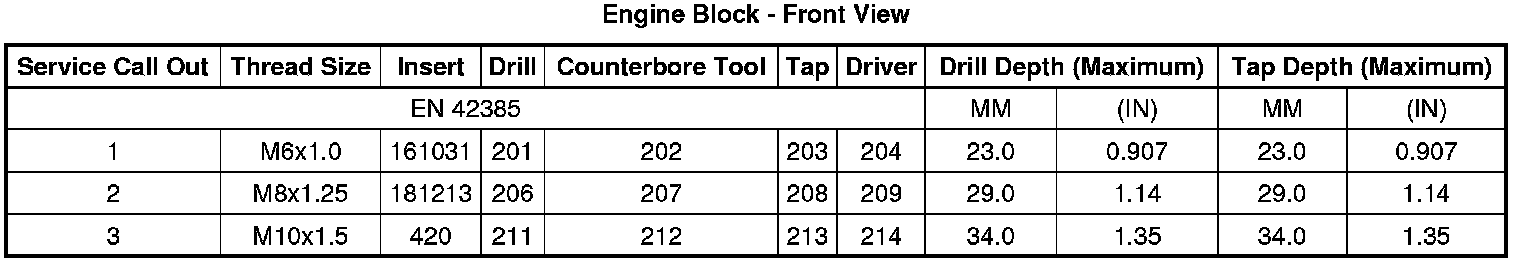

Engine Block - Front View
Engine Block - Back View

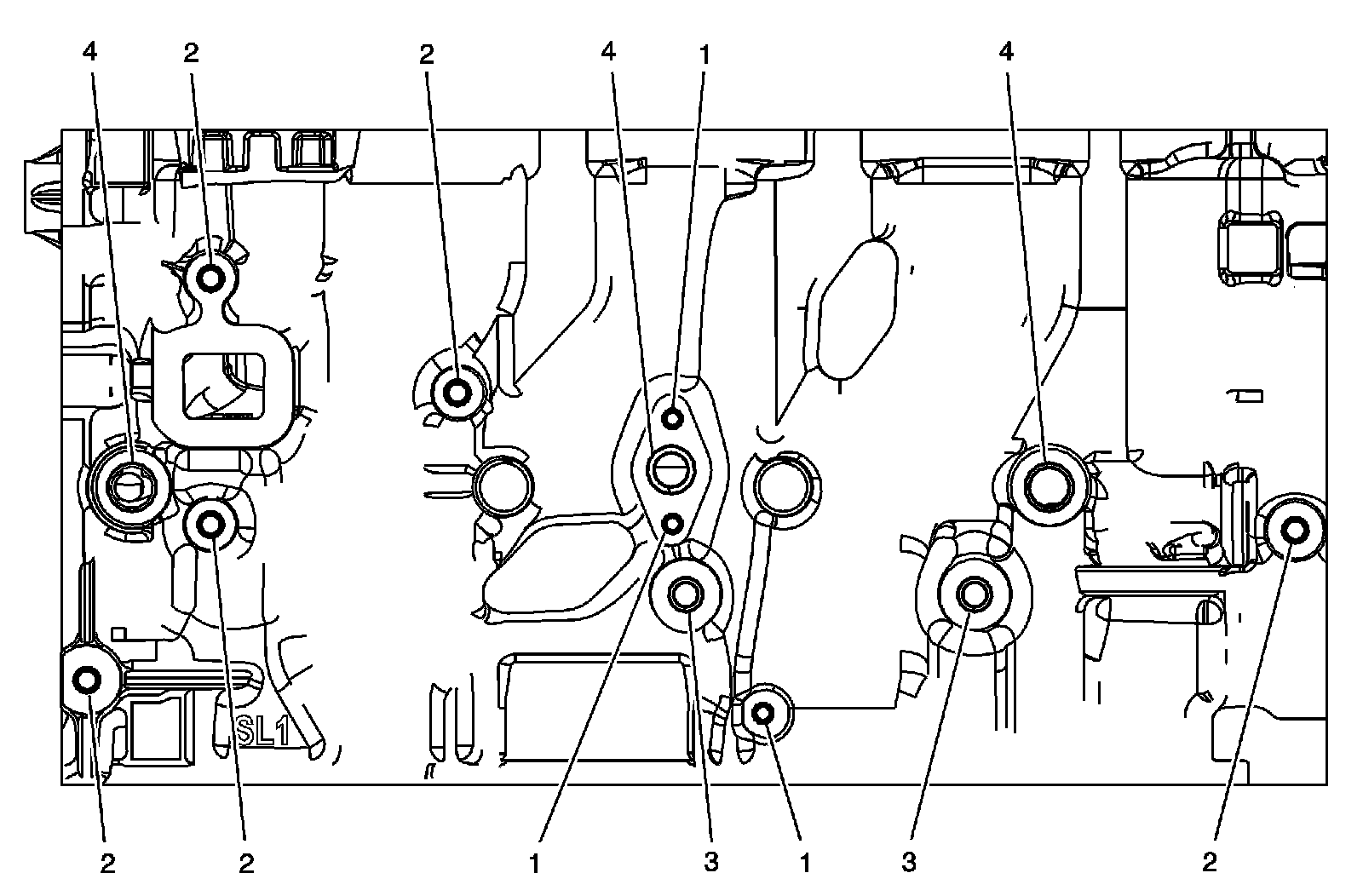

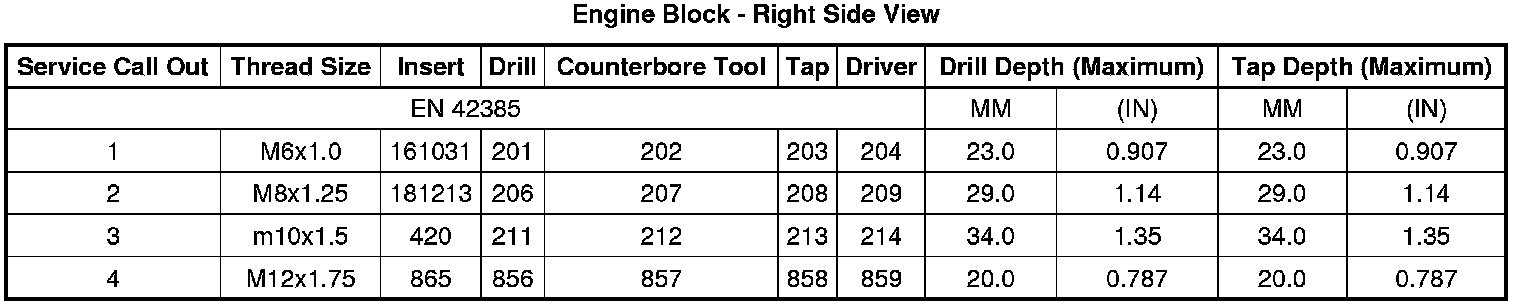

Engine Block - Right Side View

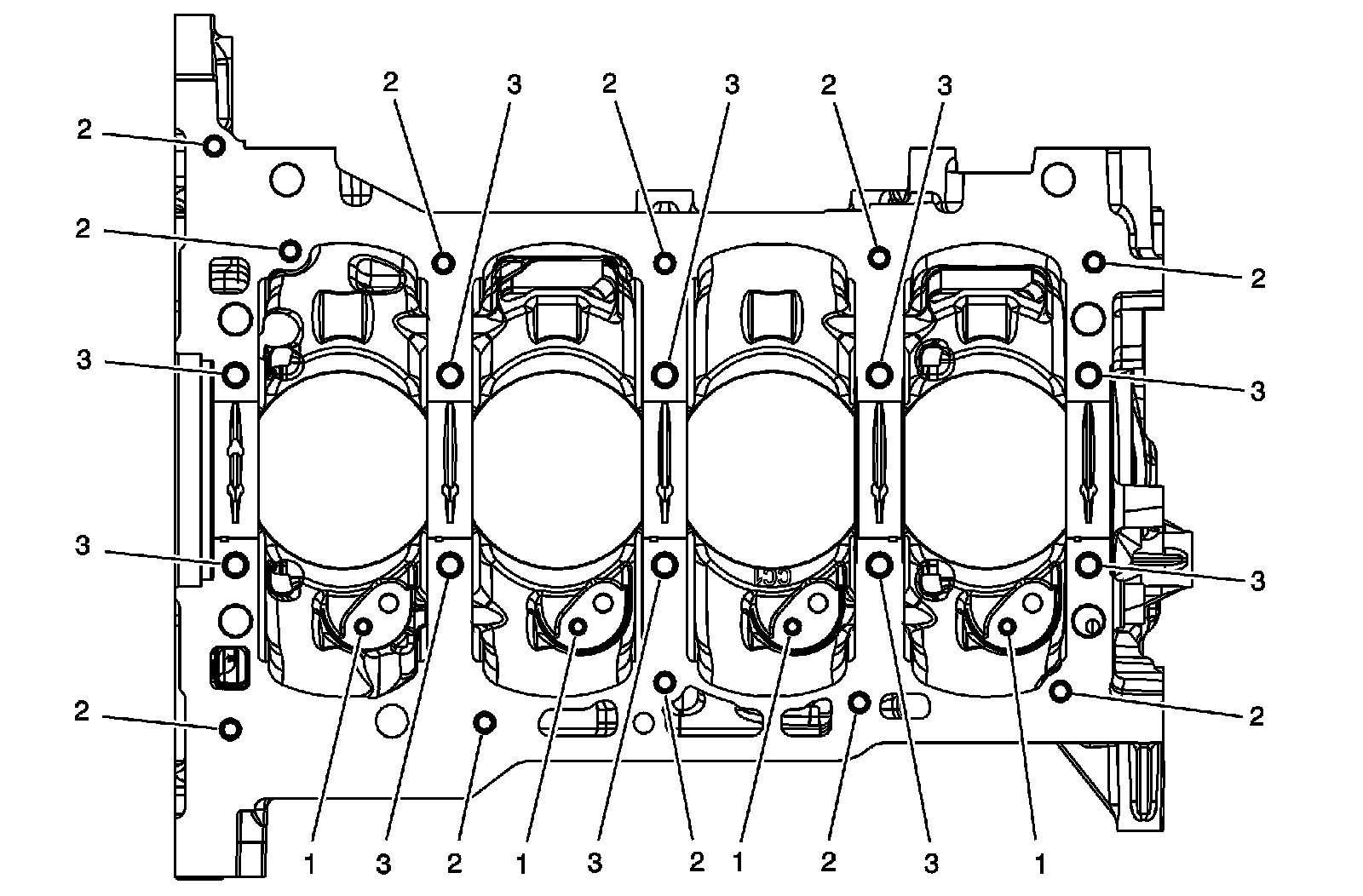

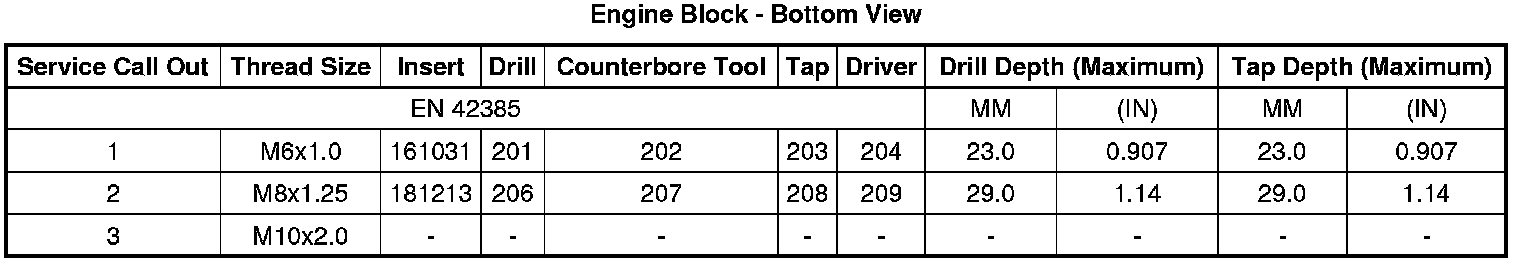

Engine Block - Bottom View

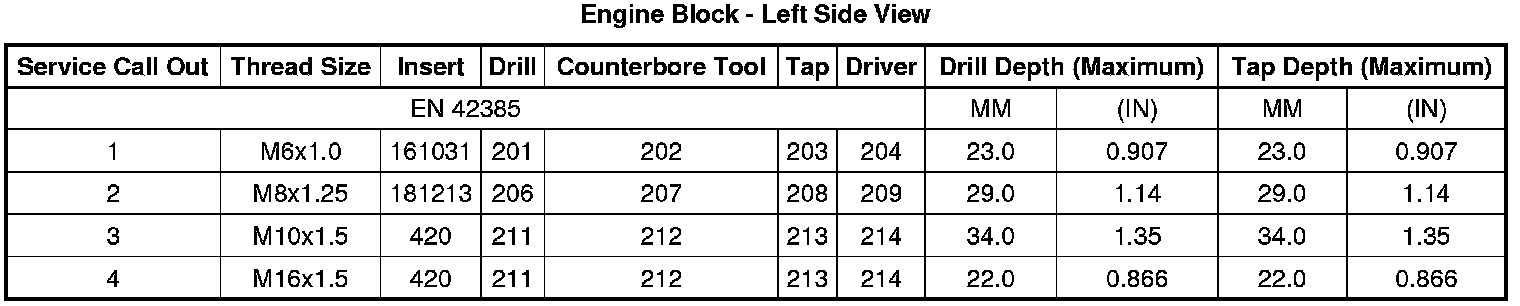

Engine Block - Left Side View

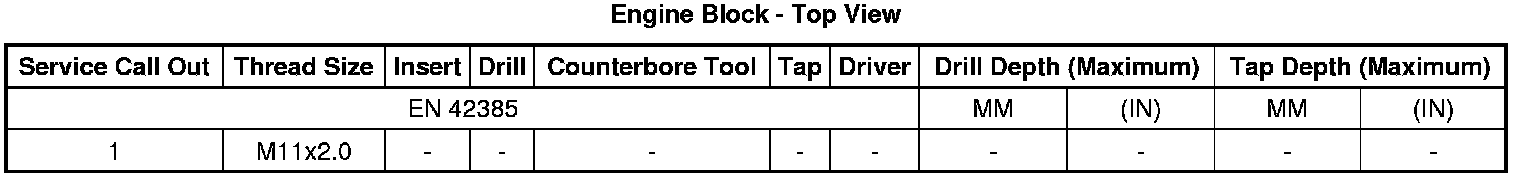

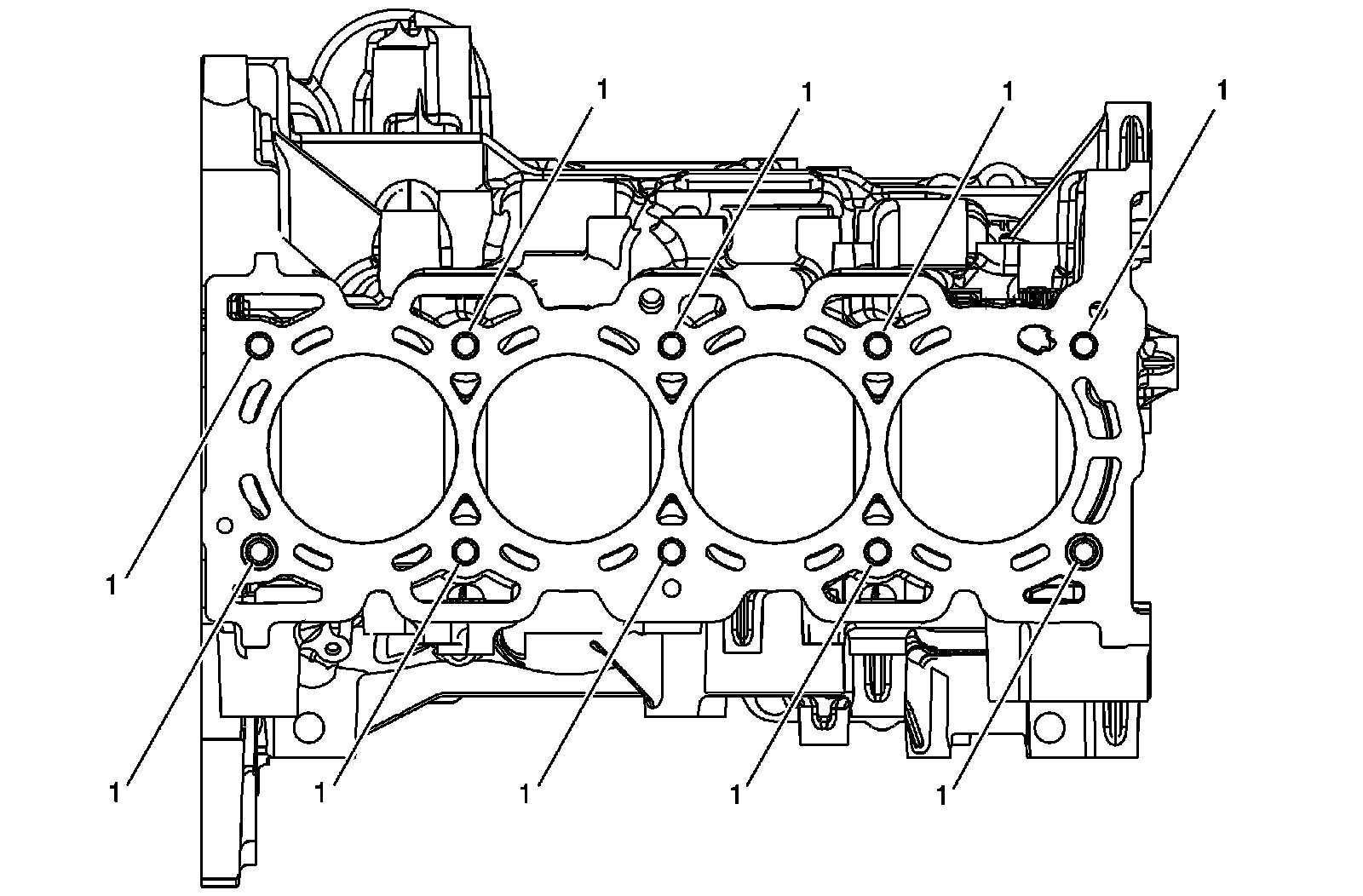

Engine Block - Top View

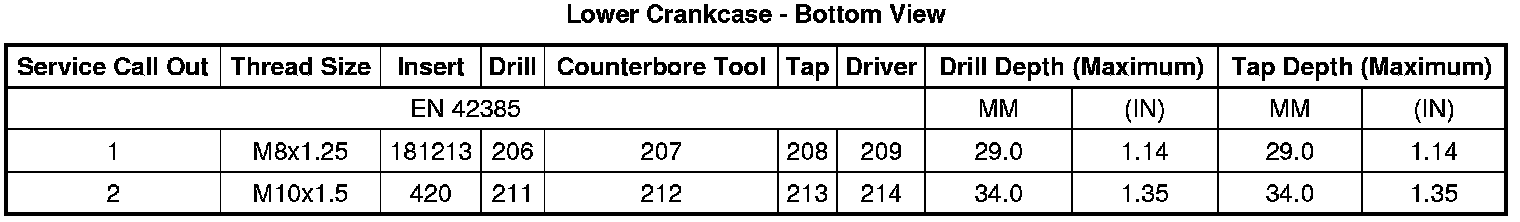

Lower Crankcase - Bottom View

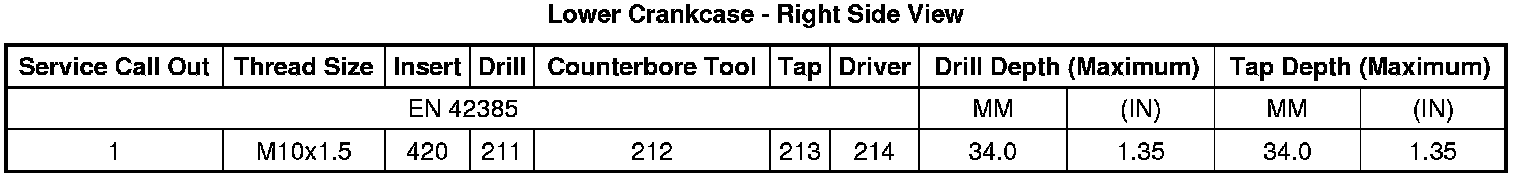

Lower Crankcase - Right Side View
Lower Crankcase - Left Side View

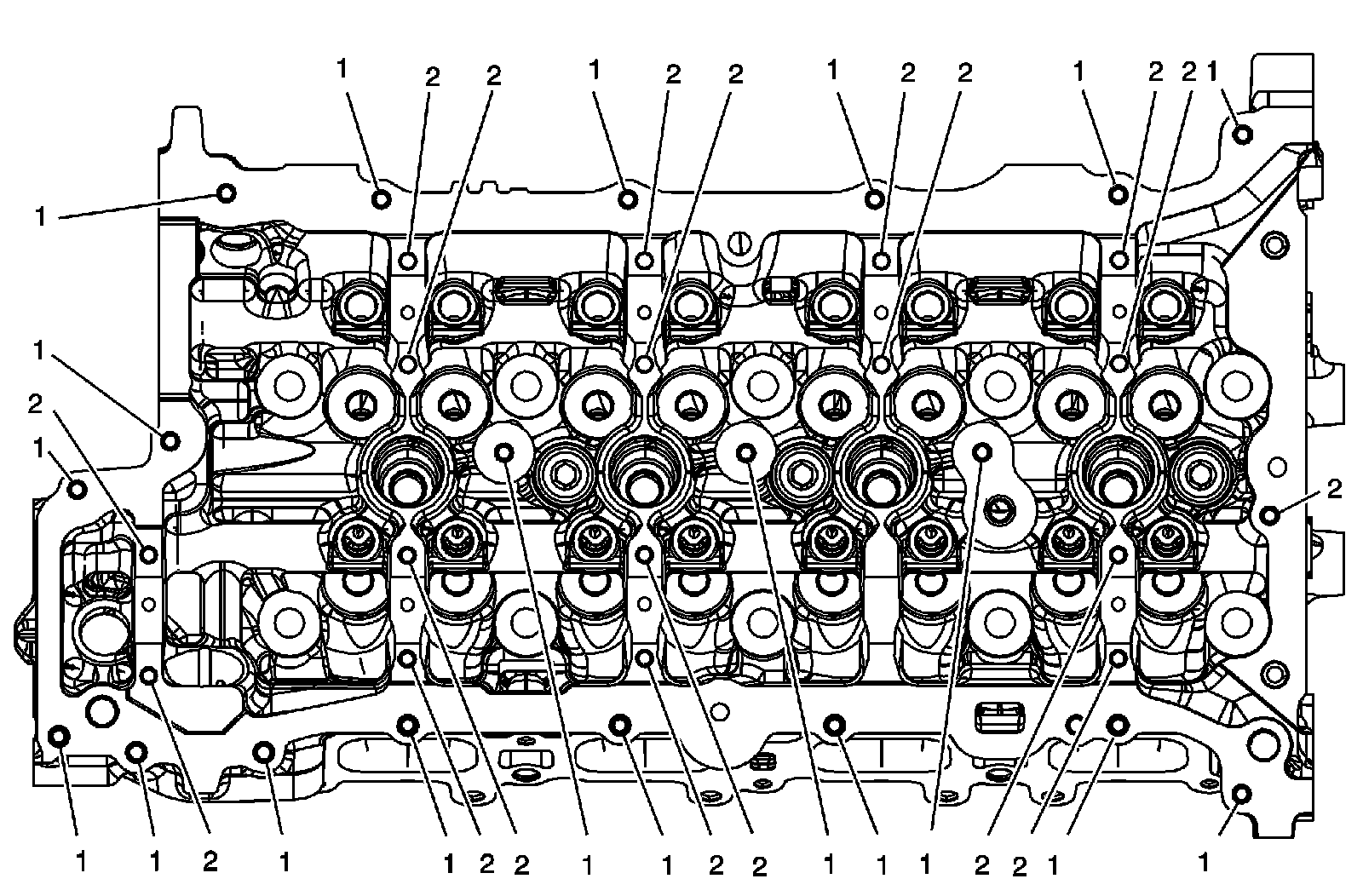

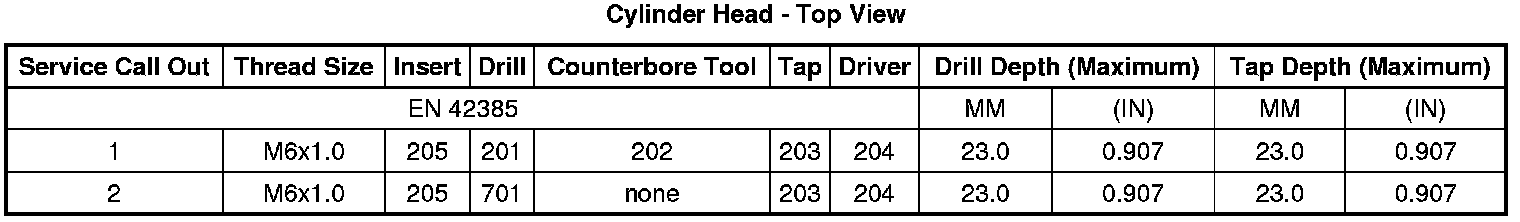

Cylinder Head - Top View

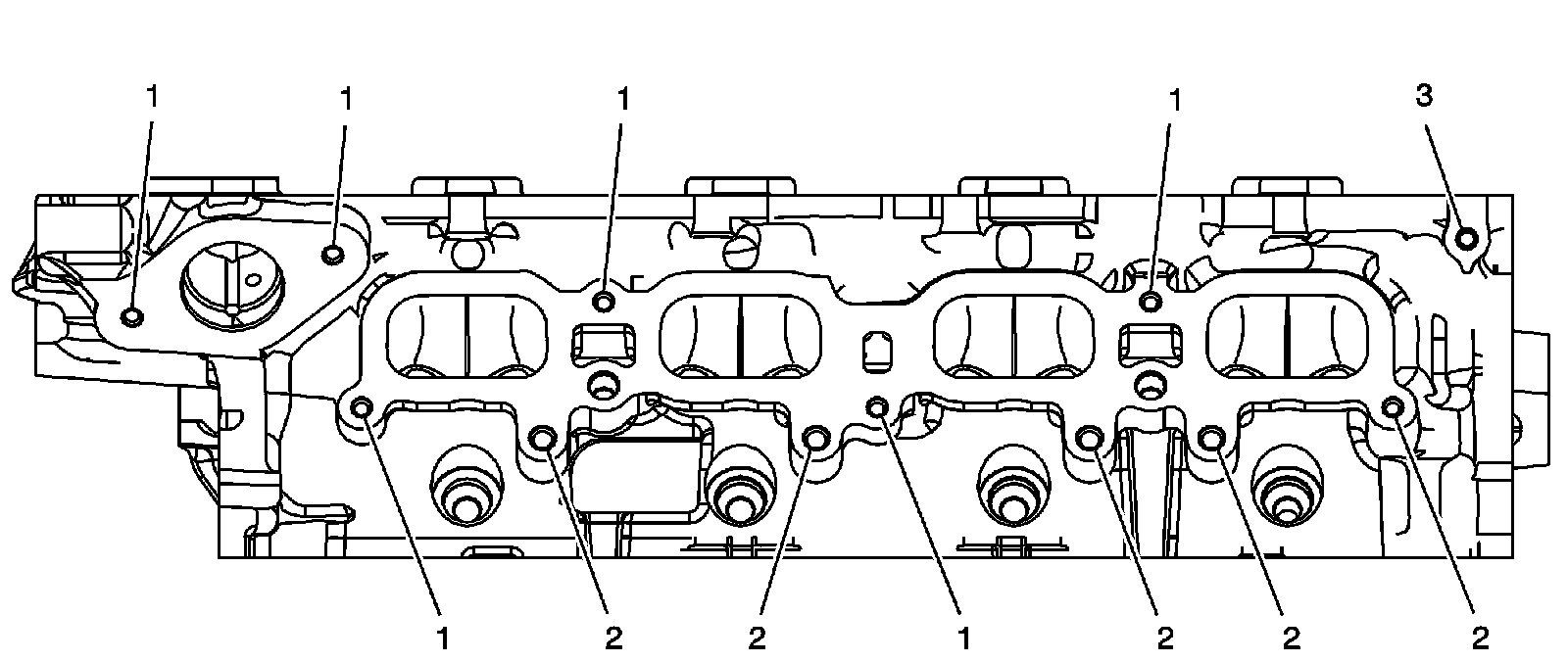

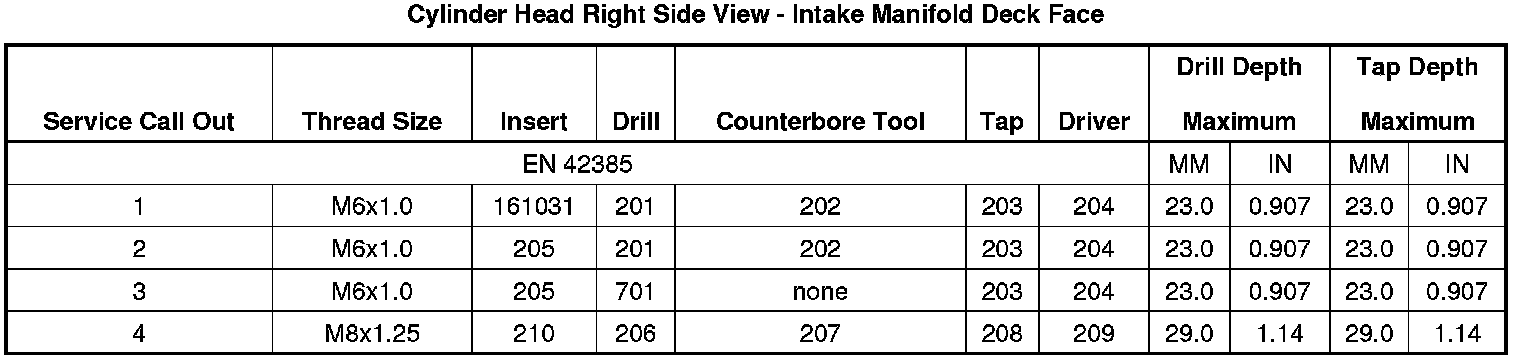

Cylinder Head Right Side View - Intake Manifold Deck Face

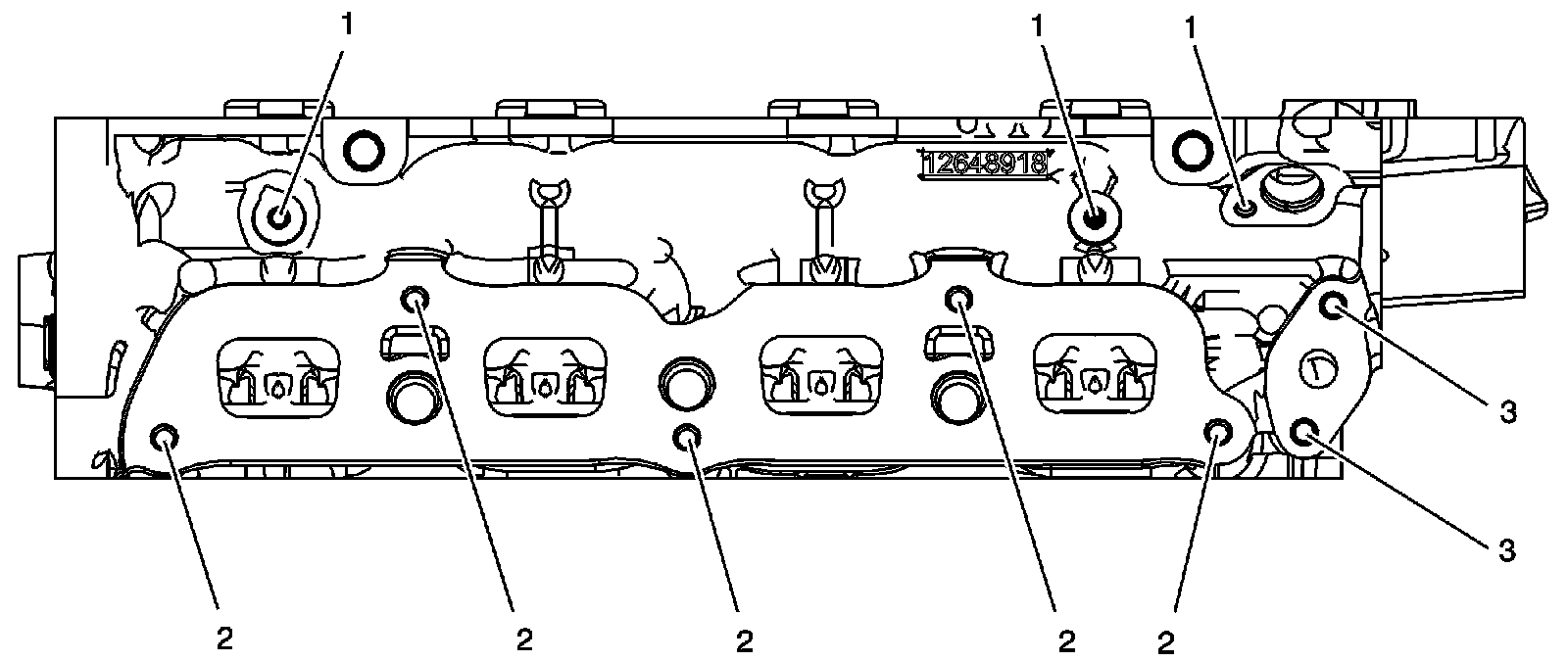

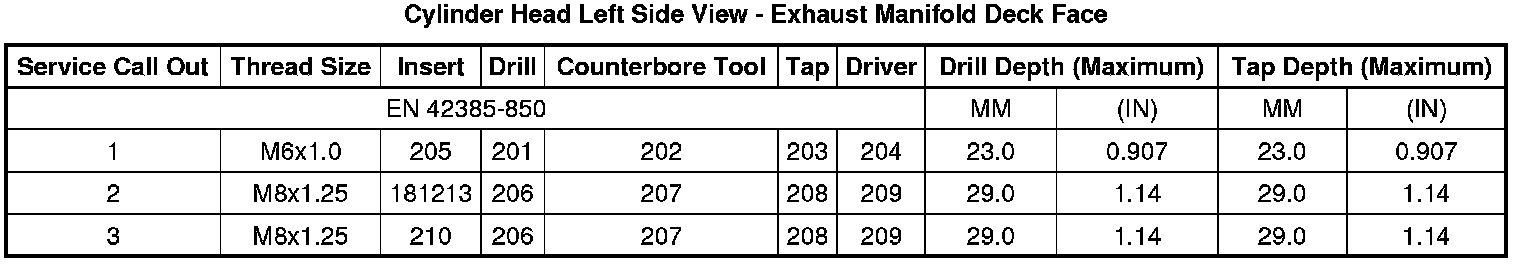

Cylinder Head Left Side View - Exhaust Manifold Deck Face

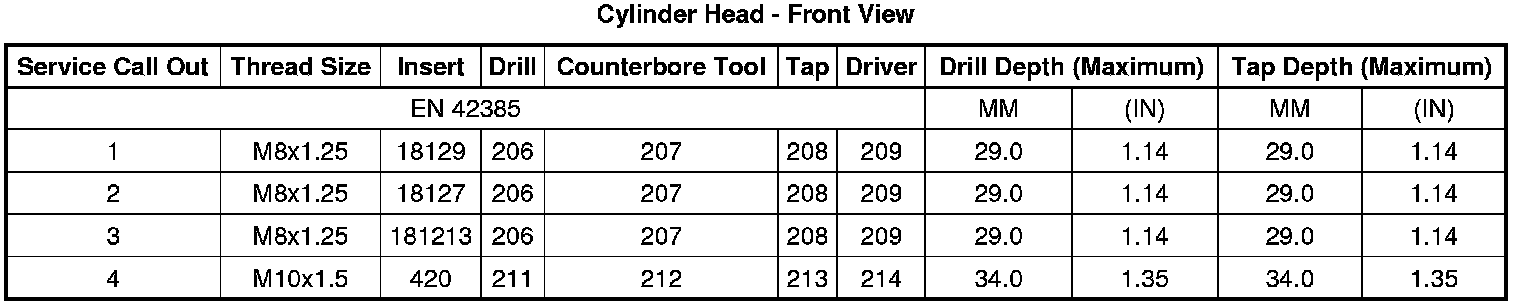

Cylinder Head - Front View

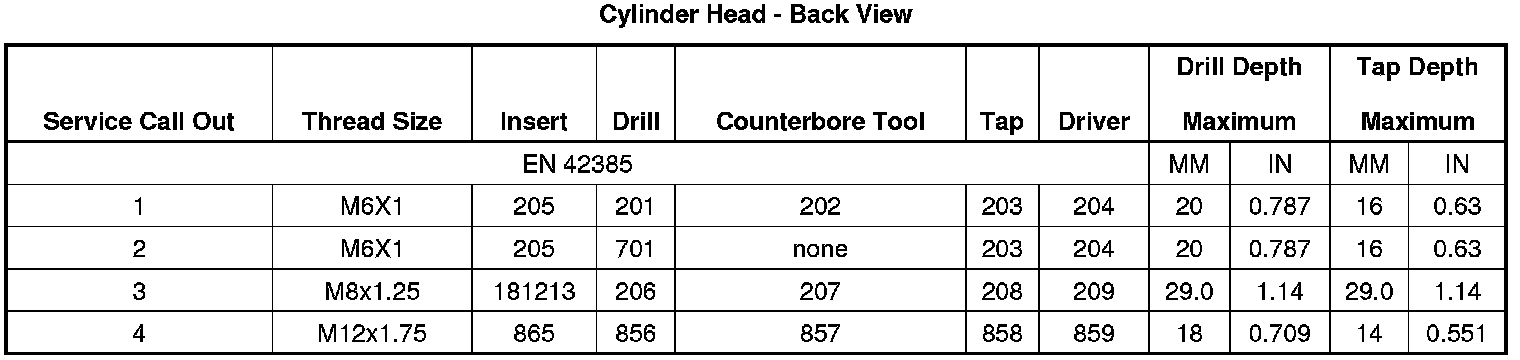

Cylinder Head - Back View

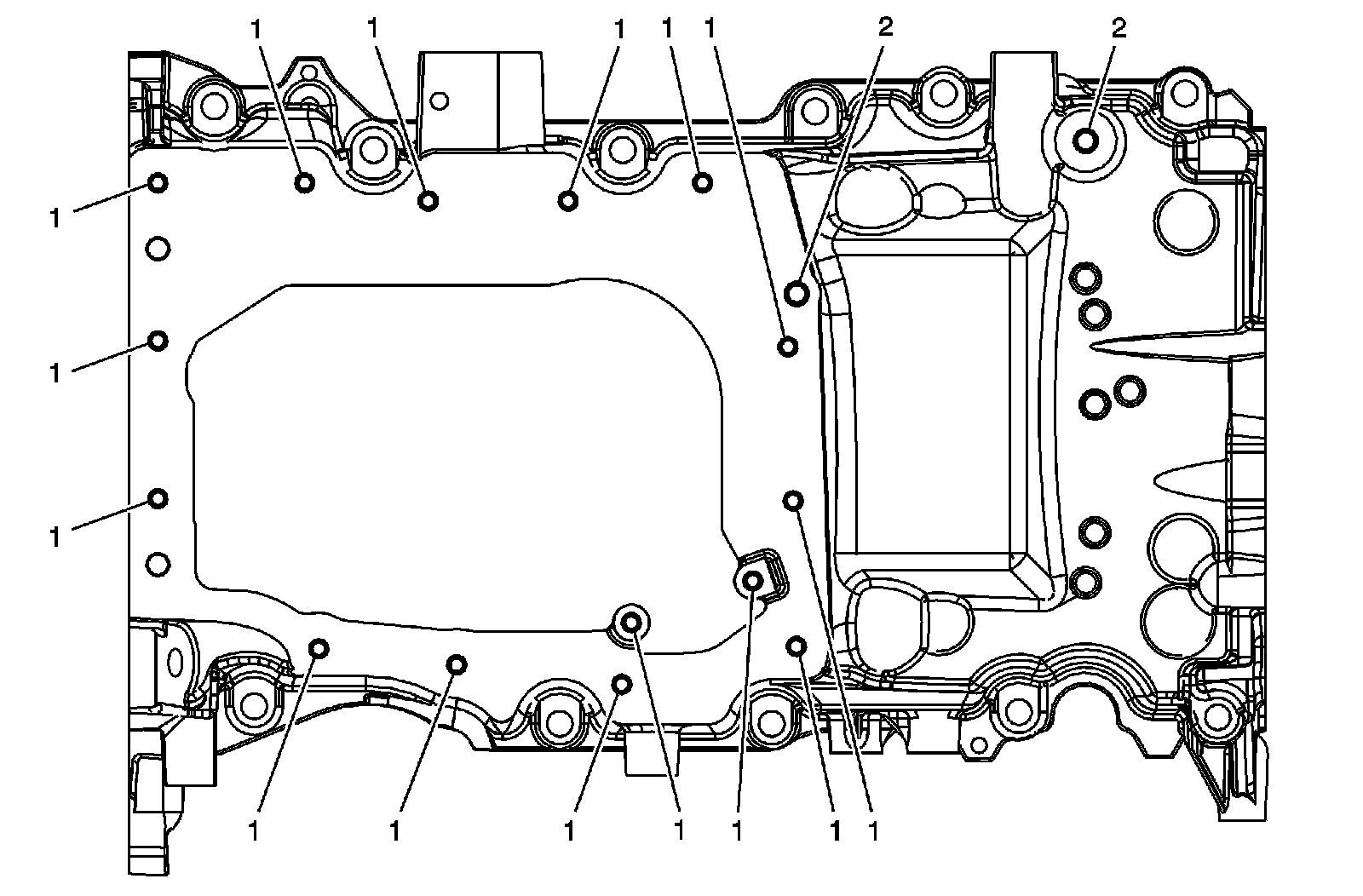

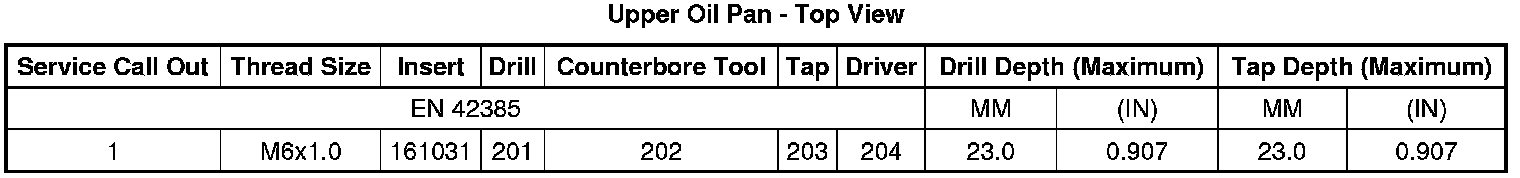

Upper Oil Pan - Top View

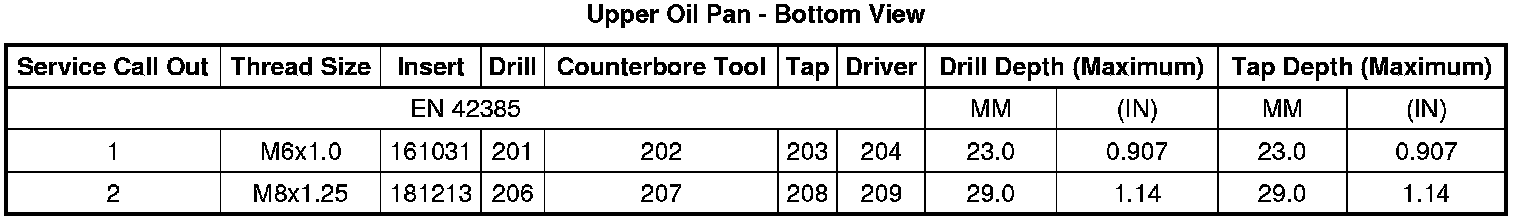

Upper Oil Pan - Bottom View

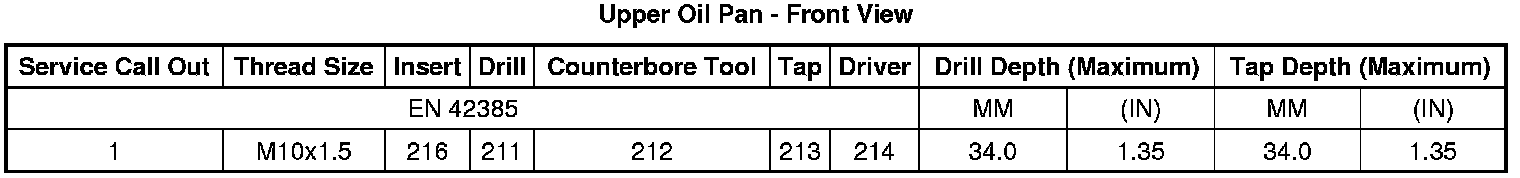

Upper Oil Pan - Front View

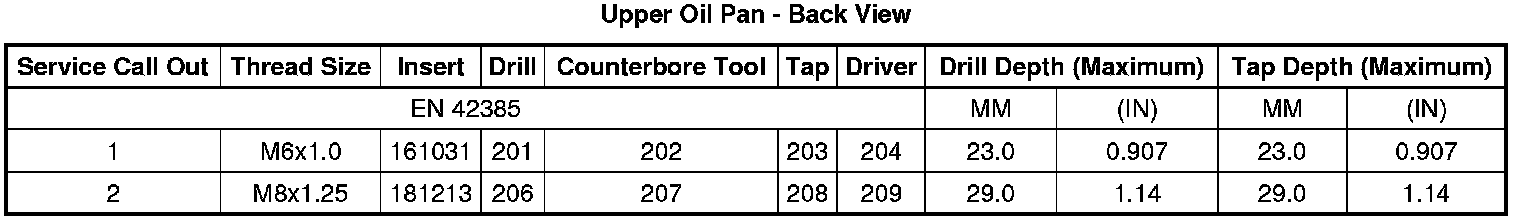

Upper Oil Pan - Back View

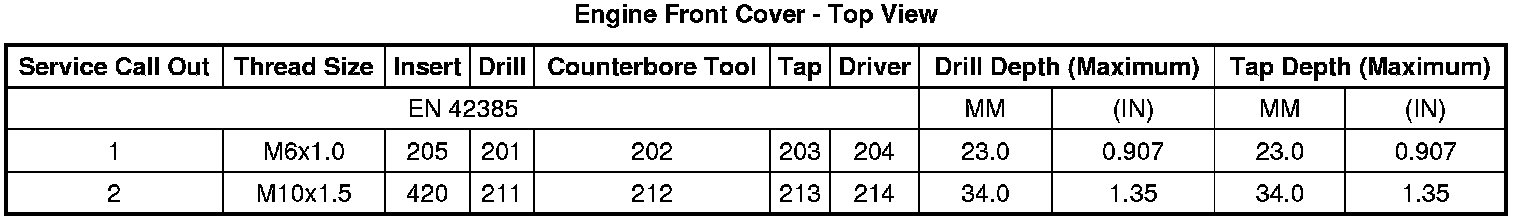

Engine Front Cover - Top View

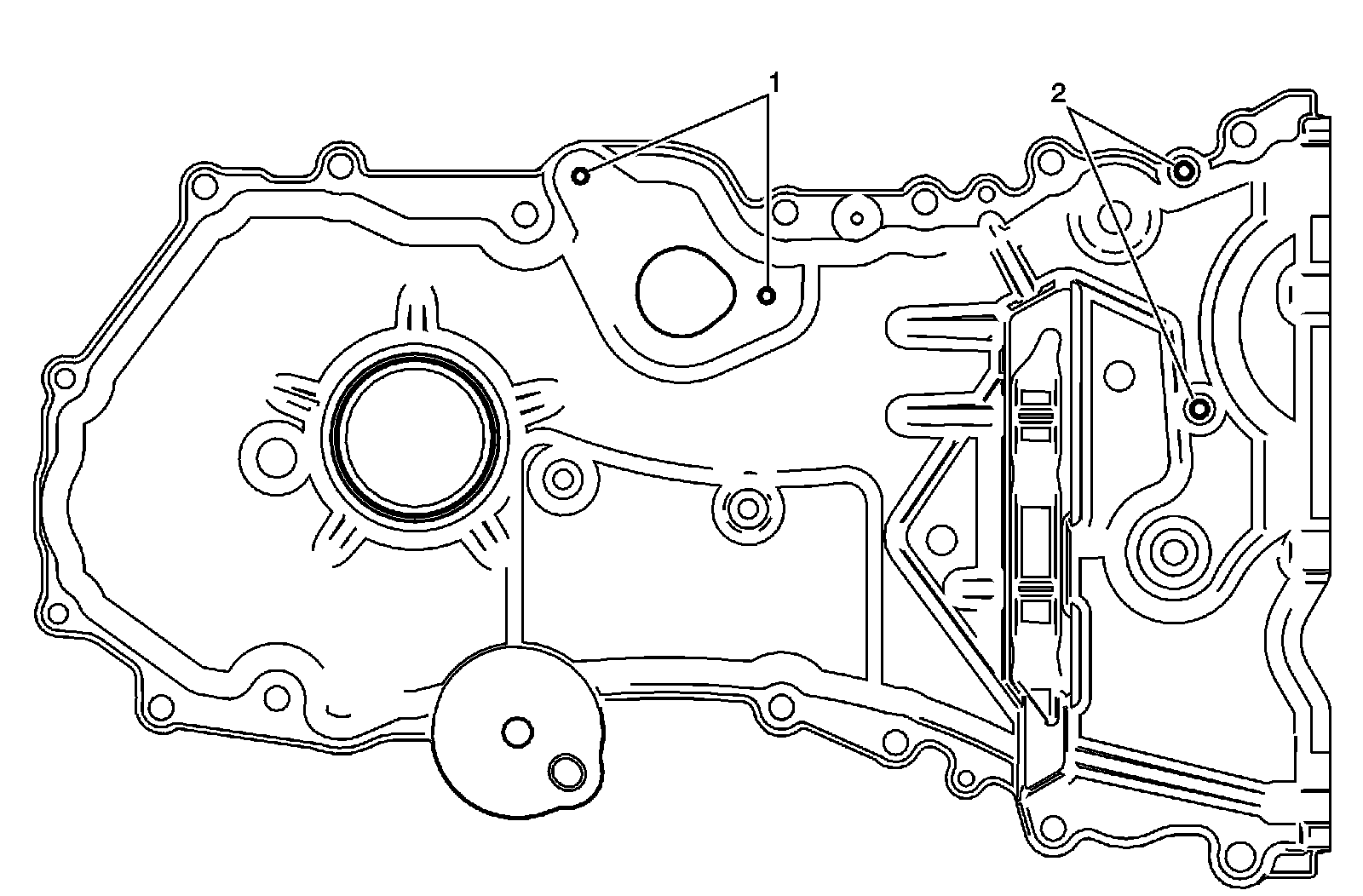

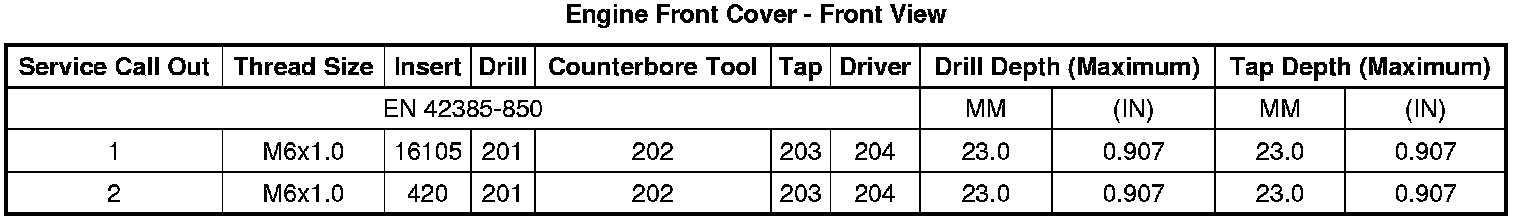

Engine Front Cover - Front View
