Cabin Air Filter / Purifier: Service and Repair

PASSENGER COMPARTMENT AIR FILTER
The filter removes dust, pollen, and other airborne irritants from outside air that is pulled into the vehicle.

The filter should be replaced as part of routine scheduled maintenance.






1. Open the glove box completely.

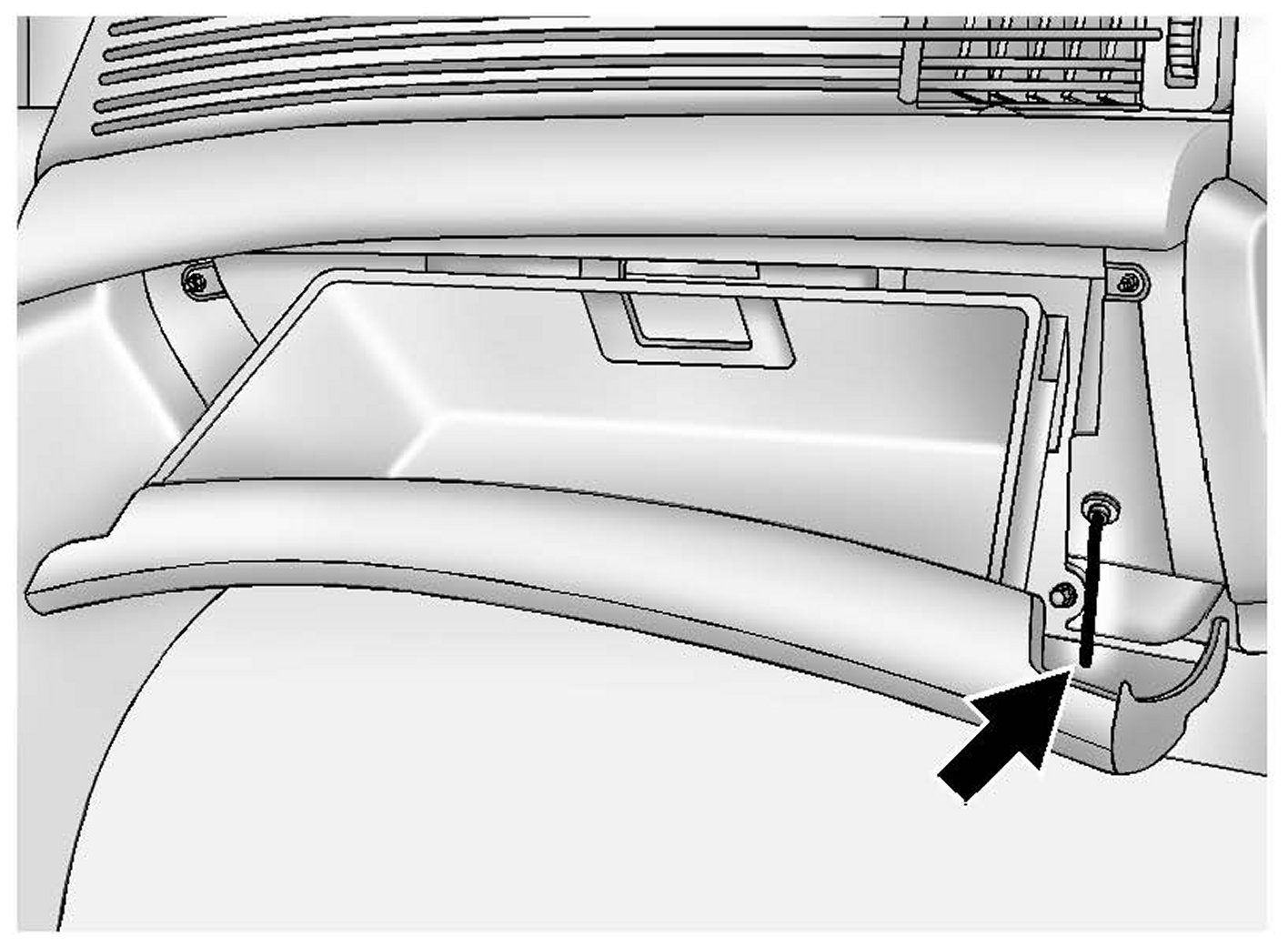

2. Disconnect the glove box door dampener string from the glove box door assembly. Please note: a pen or pencil may be inserted through the end of the dampener string to prevent the string from slipping inside the door assembly.






3. Squeeze both sides of the glove box door to open beyond the stops.

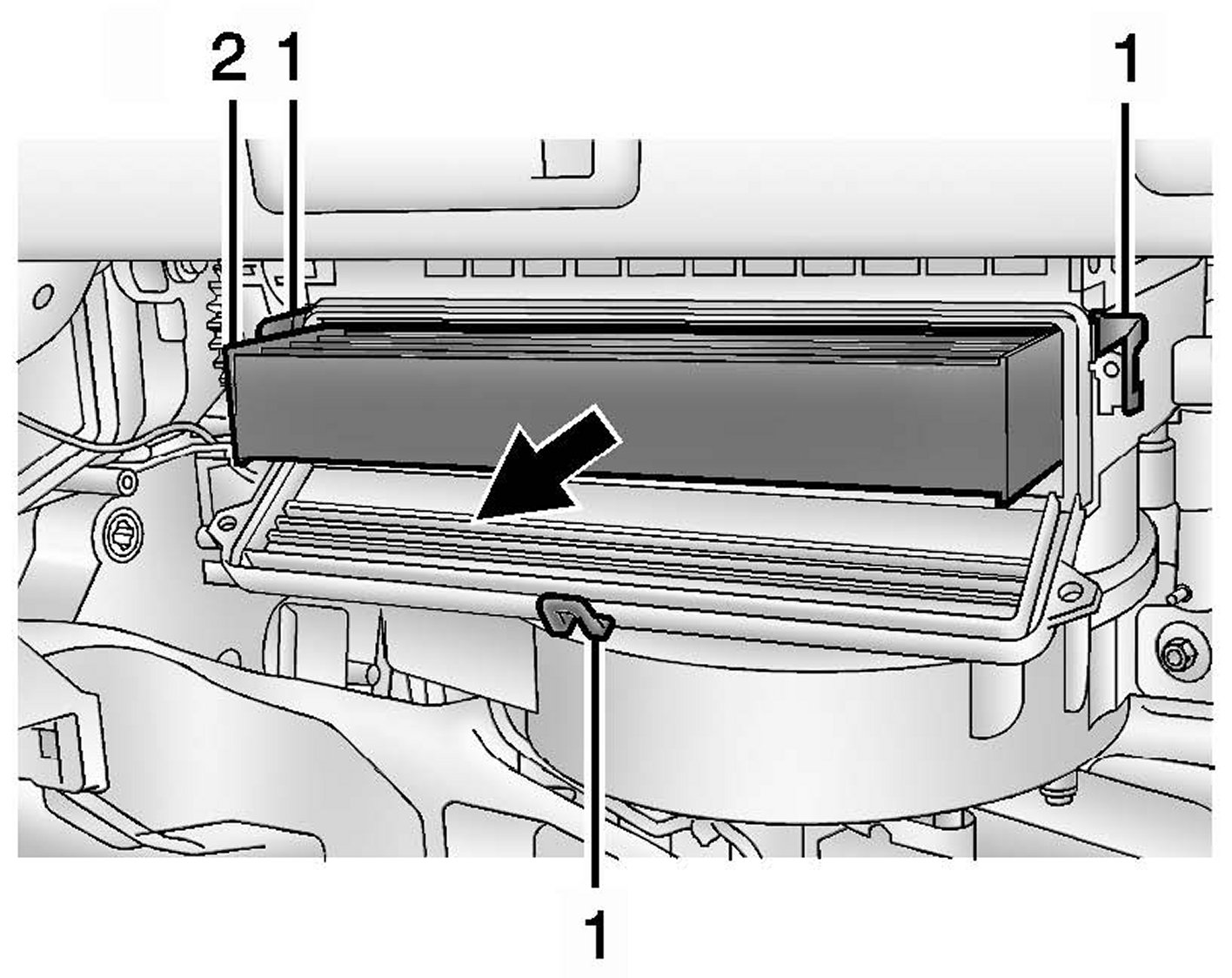

4. Release the retainer clips (1) holding the service door. Open the service door and remove the old filter (2).

5. Install the new air filter.

6. Close the service door and retainer clips.

7. Reverse the steps to reinstall the glove box.
