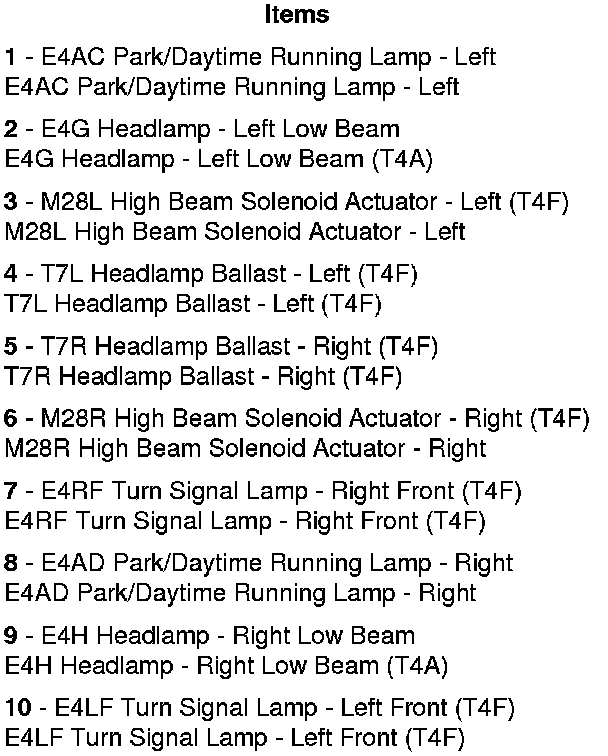

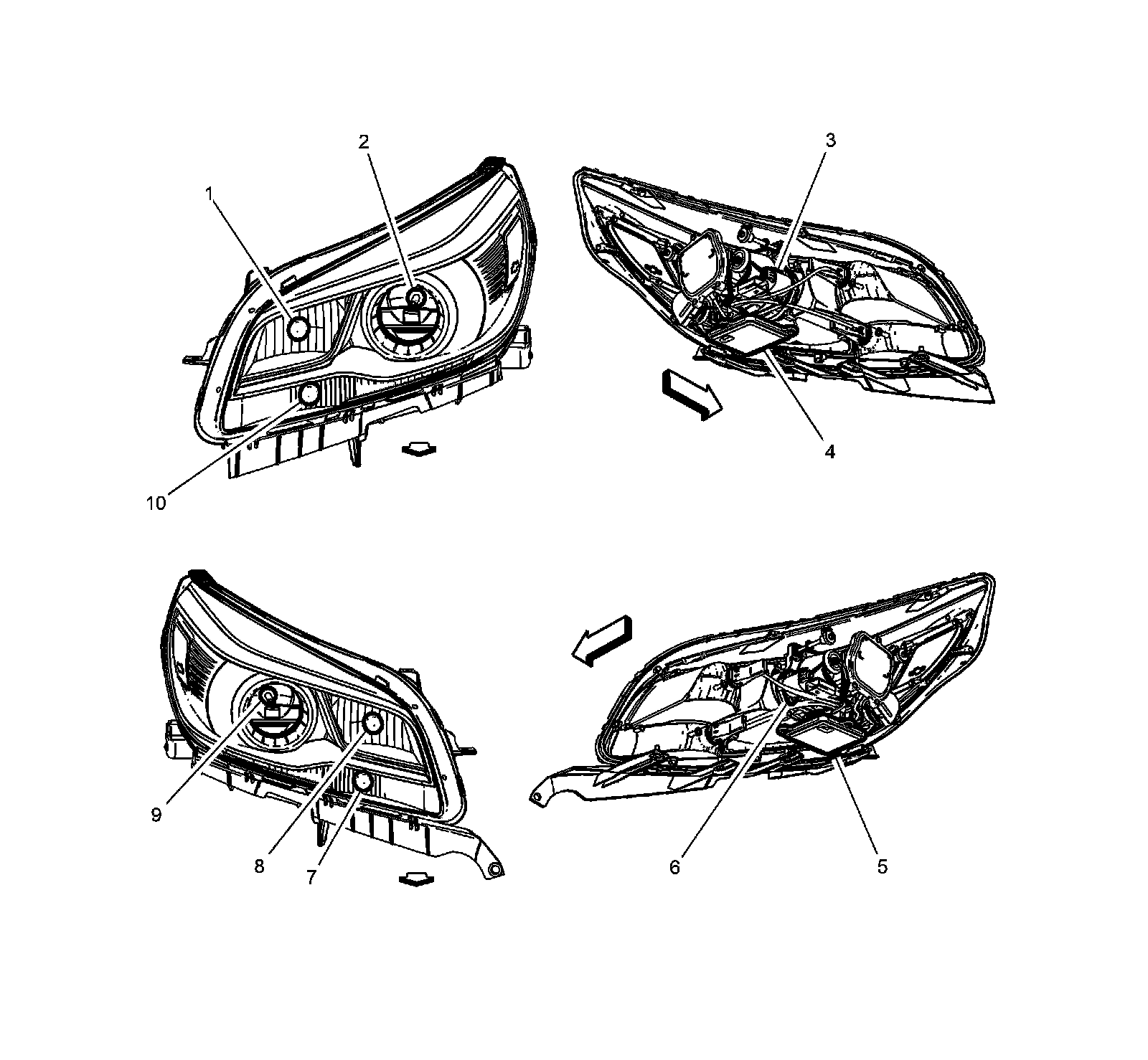

Headlamp Assembly Components (T4F)





Front of Vehicle/Engine Compartment Component Views

Headlamp Assembly Components (T4F)
