Power Moding Schematics
Power Moding Schematics

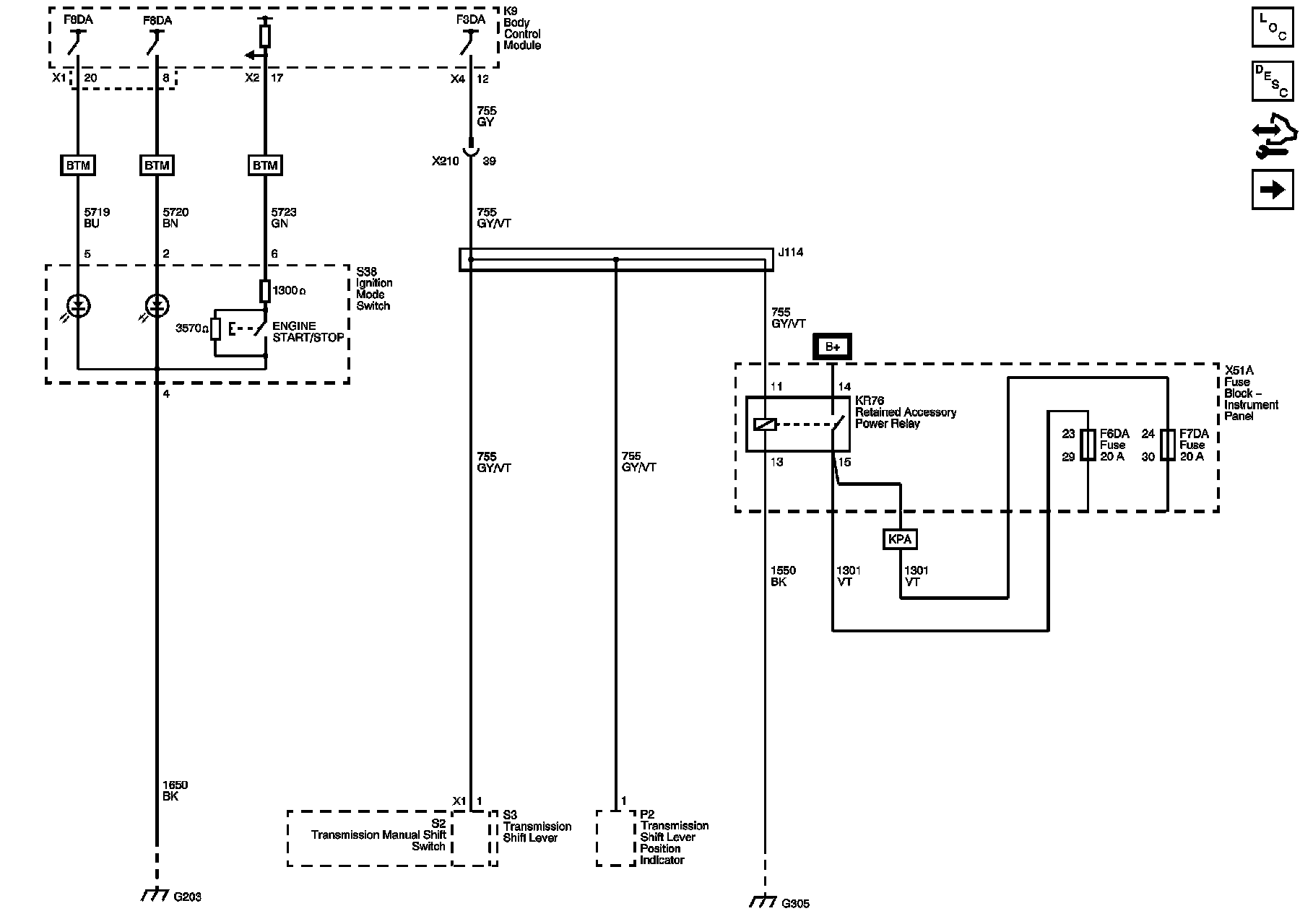

Ignition Mode Switch and KR76 Retained Accessory Power Relay
KR73 Ignition Main Relay
