Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2013
>>
Malibu L4-2.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
Connector End Views By Name
>>
Seat Lumbar Support Switch - Driver (APG)
Seat Lumbar Support Switch - Driver (APG)

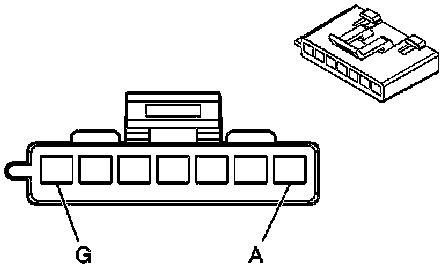

Component Connector End Views

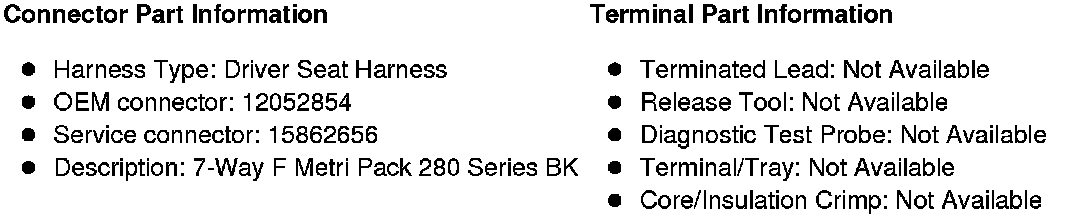

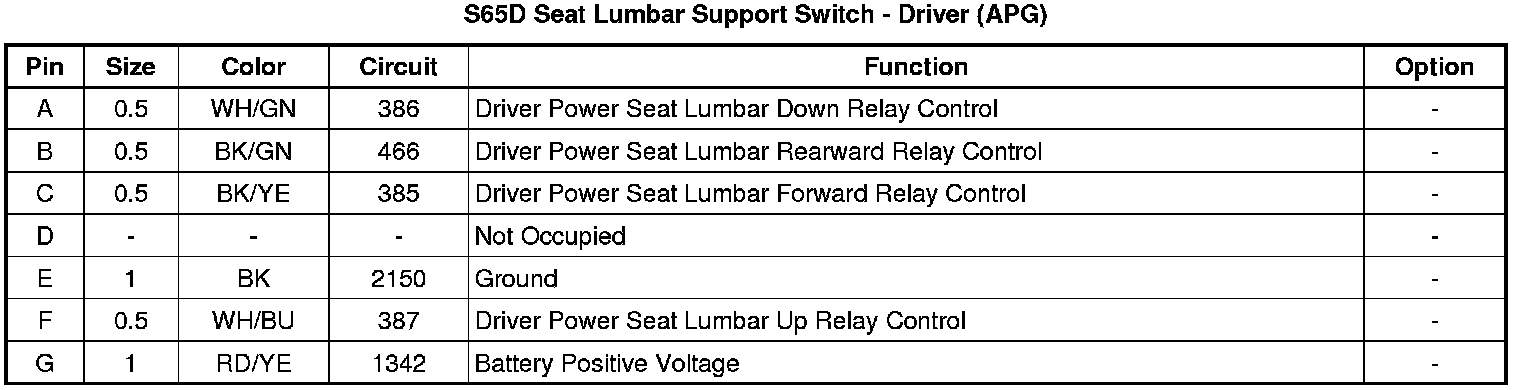

S65D Seat Lumbar Support Switch - Driver (APG)
