Dome Lamp Switch: Locations





Passenger Compartment/Roof Component Views

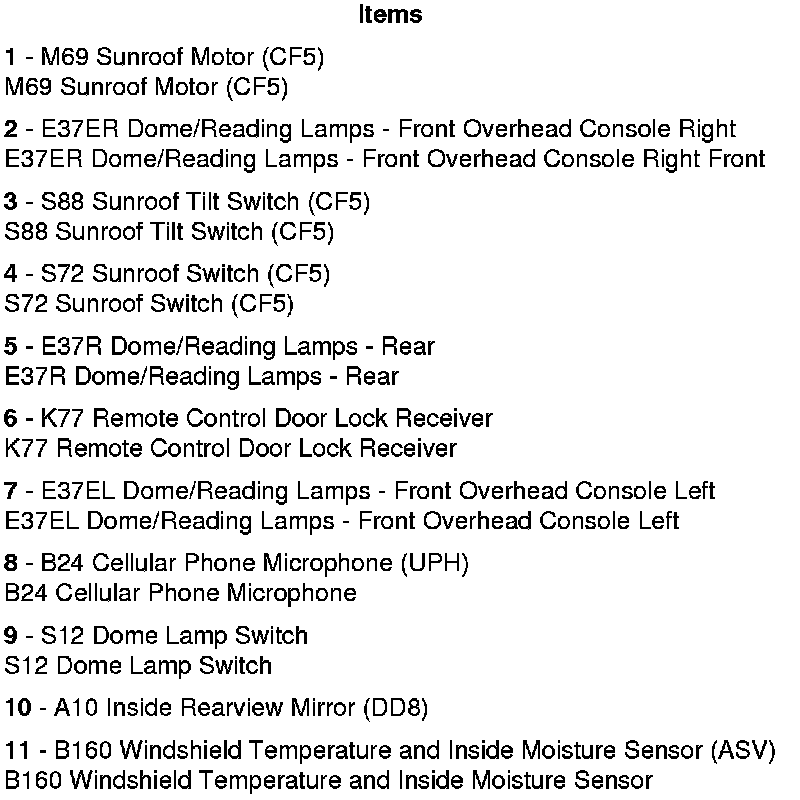

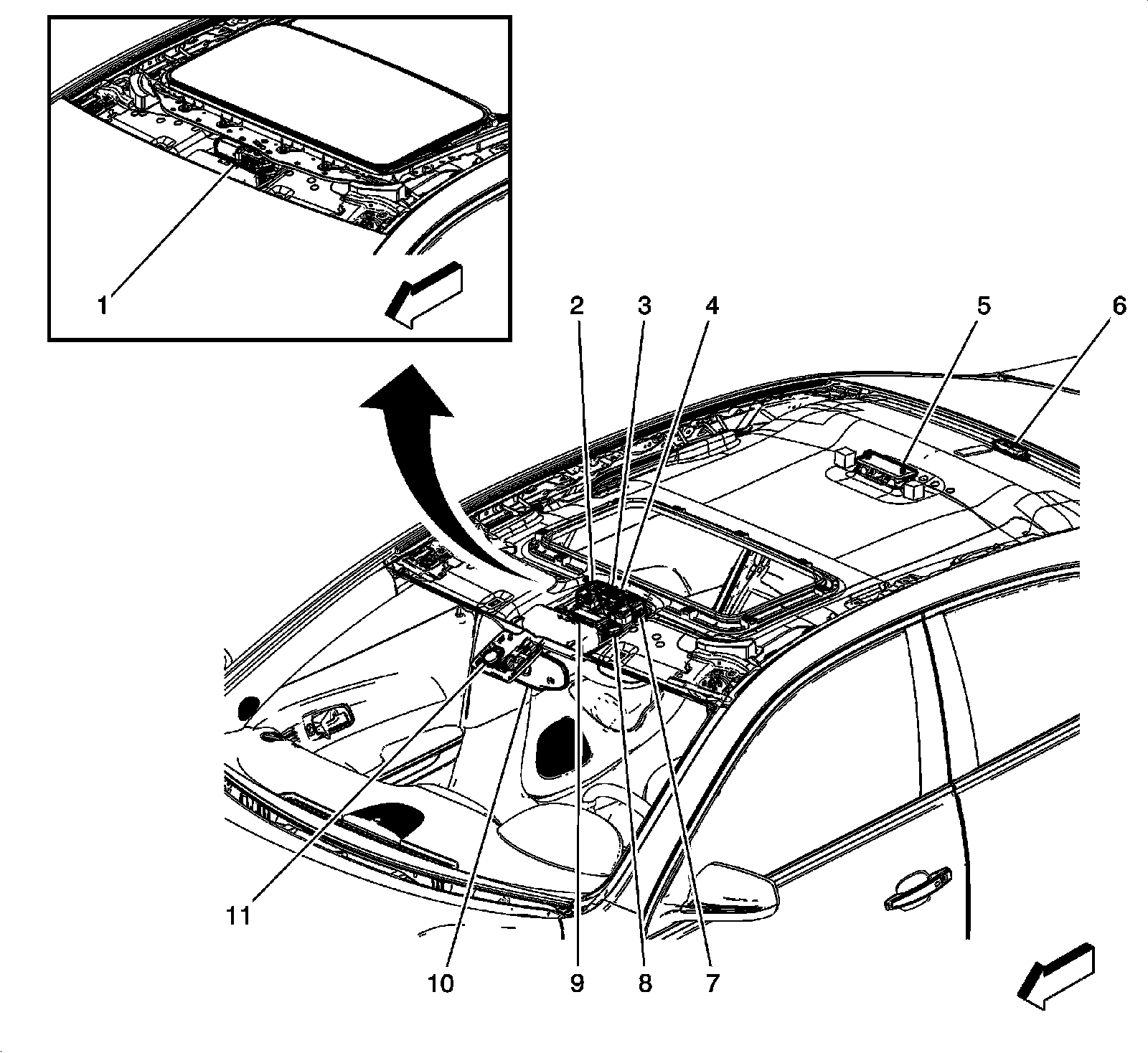

Headliner Components (CF5)
