Specifications
>>
Mechanical Specifications
>>
Exhaust System
>>
Exhaust Manifold
Exhaust Manifold
NEW
Exhaust Manifold
Bolt/Stud/Nut*
20 Nm (21 lb ft)

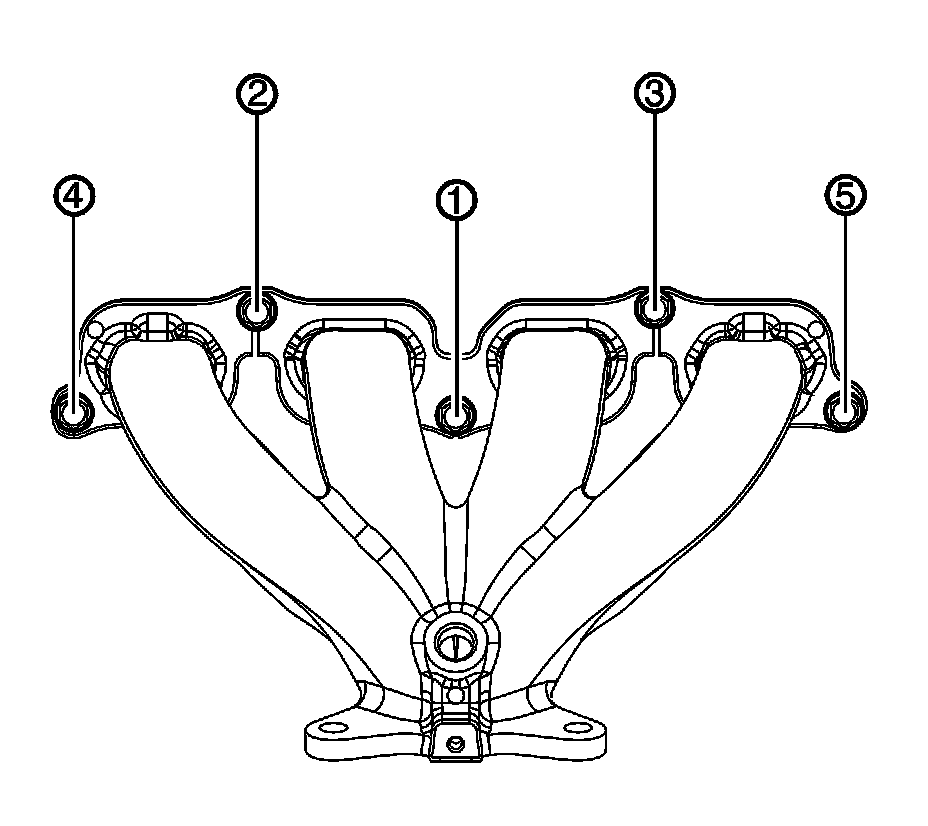

*Tighten the
exhaust manifold
fasteners in 3 passes
