Accent Lamp - Left Instrument Panel

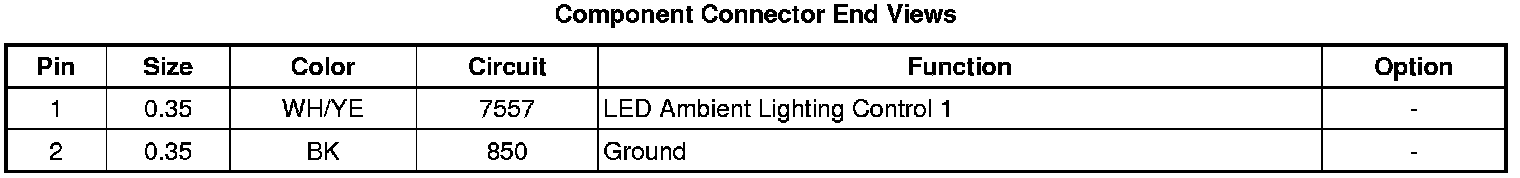

Component Connector End Views

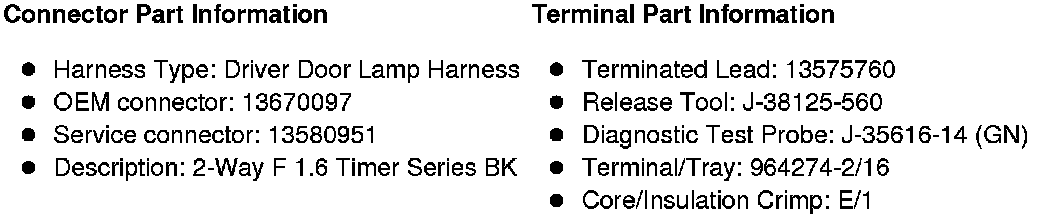

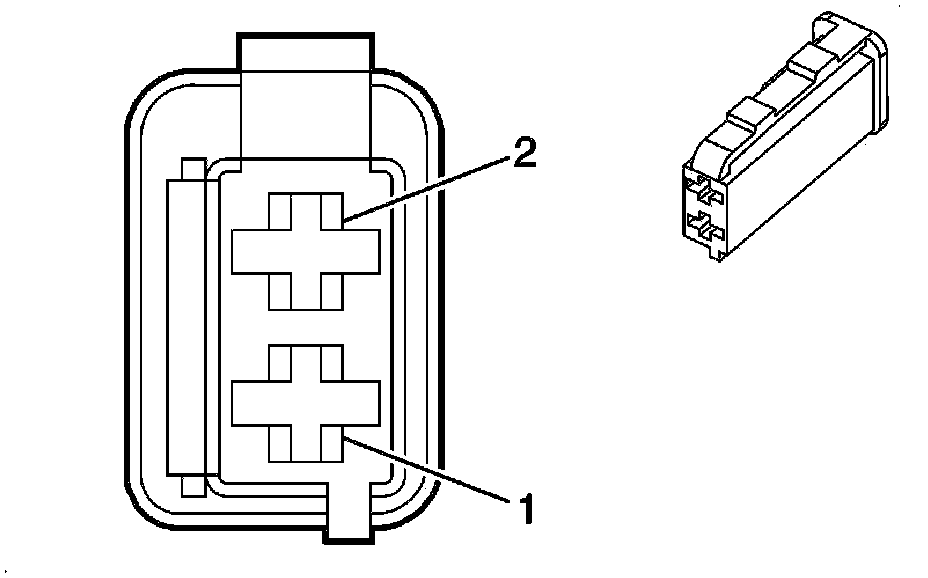

E1G Accent Lamp - Left Instrument Panel
