Chevrolet
>>
2013
>>
Malibu L4-2.5L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
Connector End Views By Name
>>
Instrument Panel Compartment Lamp
Instrument Panel Compartment Lamp
Component Connector End Views

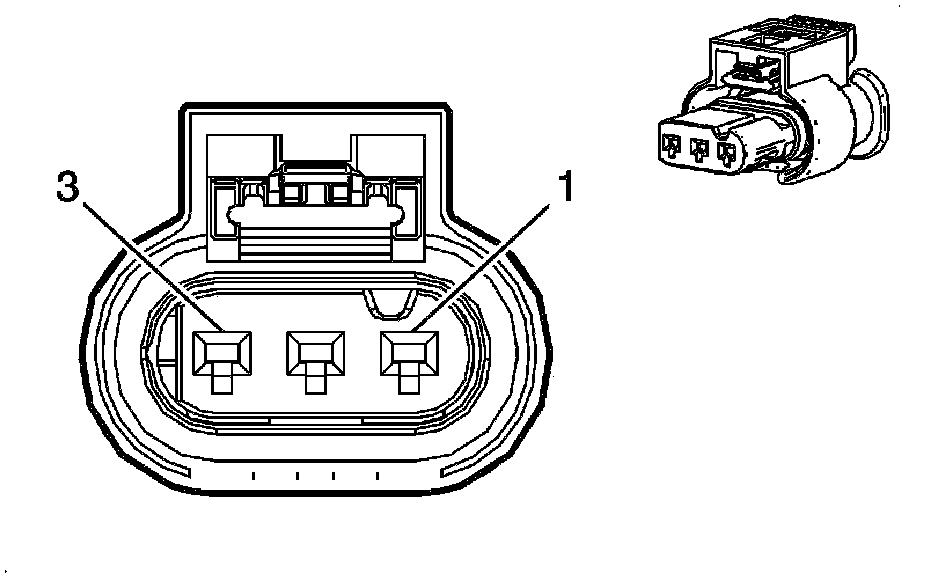

E27 Instrument Panel Compartment Lamp
