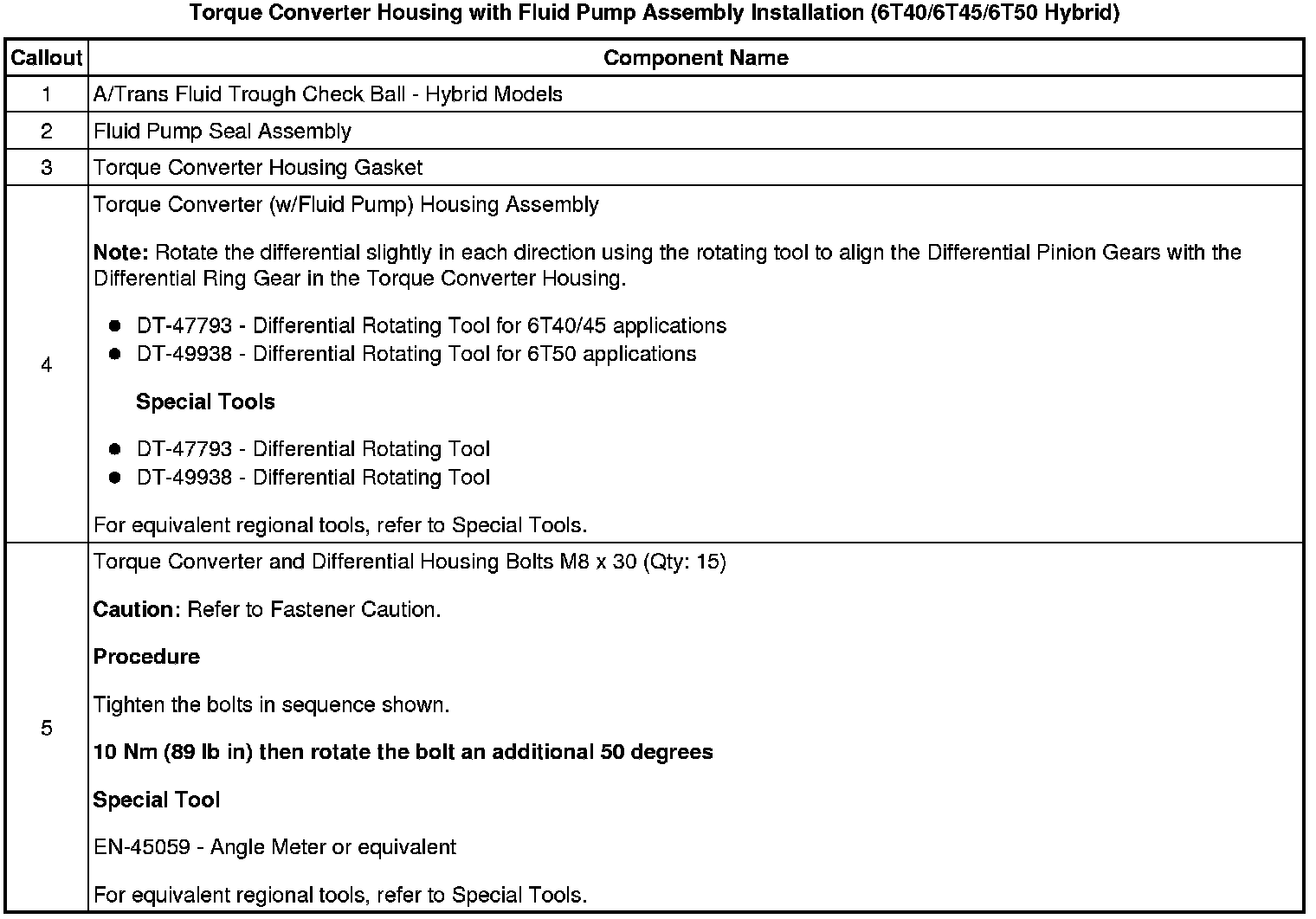

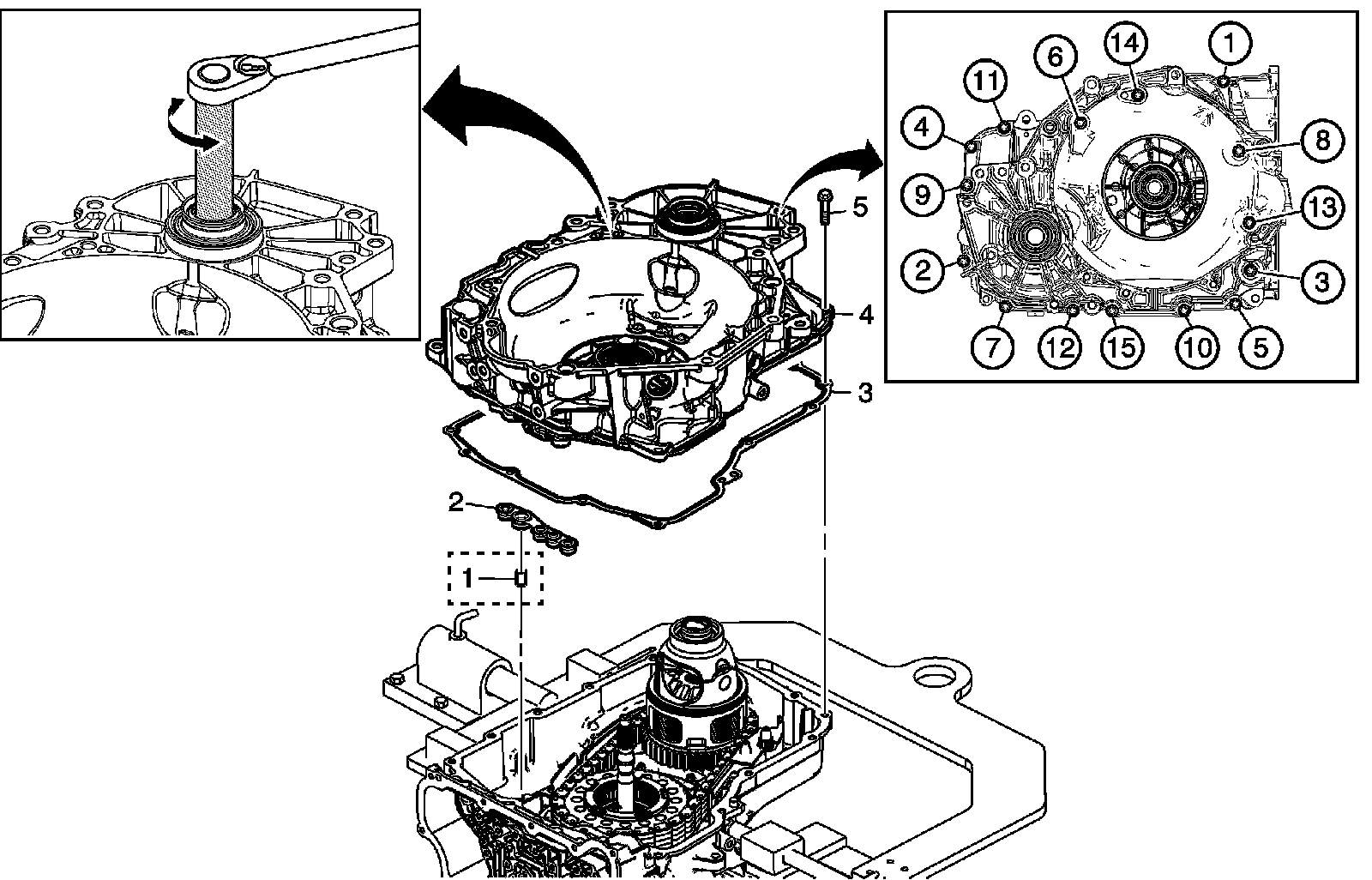

Torque Converter Housing with Fluid Pump Assembly Installation (6T40/6T45/6T50 Hybrid)





Torque Converter Housing with Fluid Pump Assembly Installation (6T40/6T45/6T50 Hybrid)
