Vent Hose Replacement

Vent Hose Replacement

Removal Procedure

Important:
Make note of the routing in order to aid in reassembly.


1. Raise and support the vehicle.





2. Remove the vent hose (1) from the top of the rear axle (2).





3. Remove the vent hose (1) from the clip (2) on the frame.





4. Remove the vent hose (1) from the clamp (2) on the filler hose.

Installation Procedure

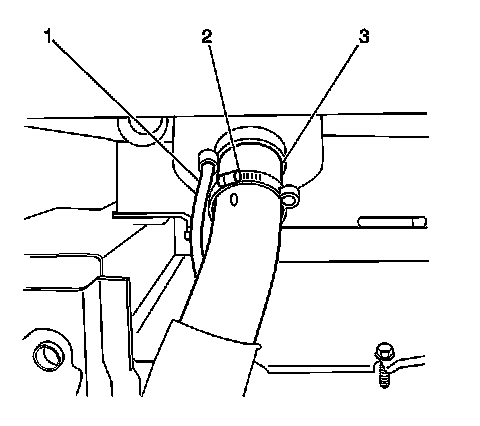

1. Install the vent hose (1) to the clamp (2) on the filler hose (3).

* Route the same way as when removed.

* Ensure that the hose is free of kinks and is routed clear of sharp objects.

* Ensure that the vent is not plugged.

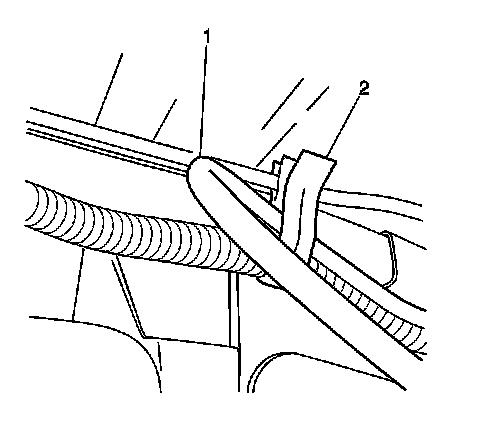

2. Install the vent hose (1) in the clip (2) on the frame.





3. Install the vent hose (1) to the top of the rear axle (2).

4. Remove the supports and lower the vehicle.
