Starter Solenoid Cable Replacement (With TP2)

Starter Solenoid Cable Replacement (Gas with TP2)

Removal Procedure





1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (TP2) Battery Negative Cable Disconnection and Connection (TP2)Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Single Battery).

2. Remove the right side front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement - Right Side (GMC) Front Wheelhouse Liner Replacement - Right Side (Chevrolet) .

3. Open the starter solenoid cable positive battery post cover.

4. Loosen the battery positive post clamp nut.

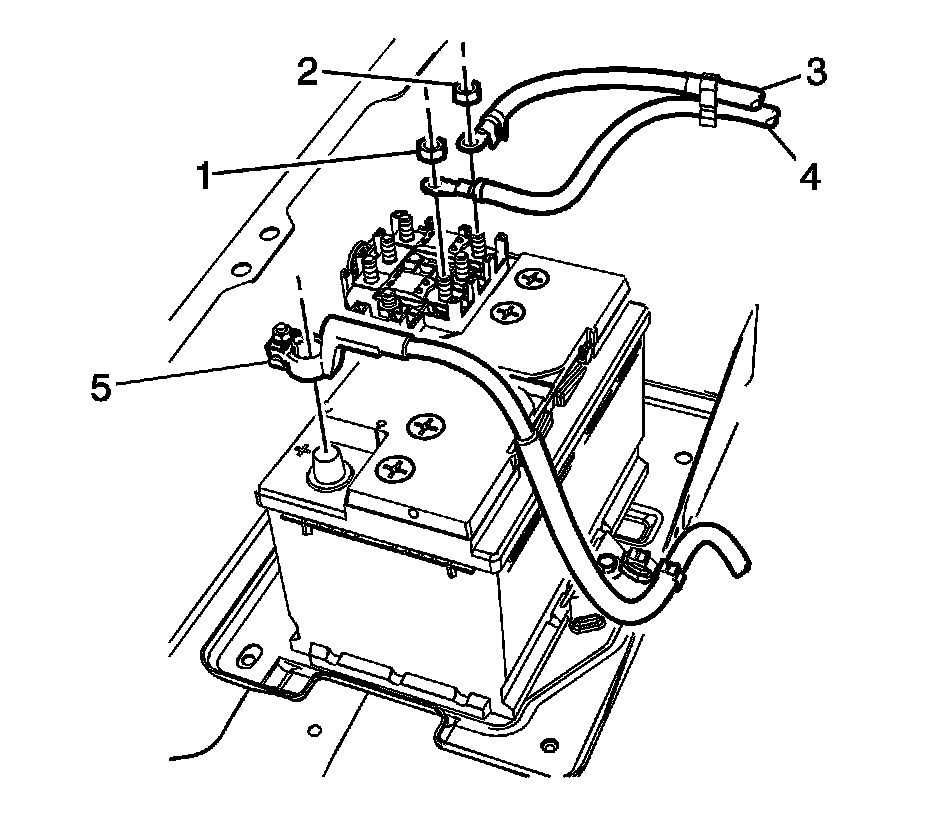

5. Remove the mega-fuse holder nuts (1) and (2). Detach the battery positive cables from the mega-fuse holder.

6. Remove the starter solenoid cable (4) from the battery.

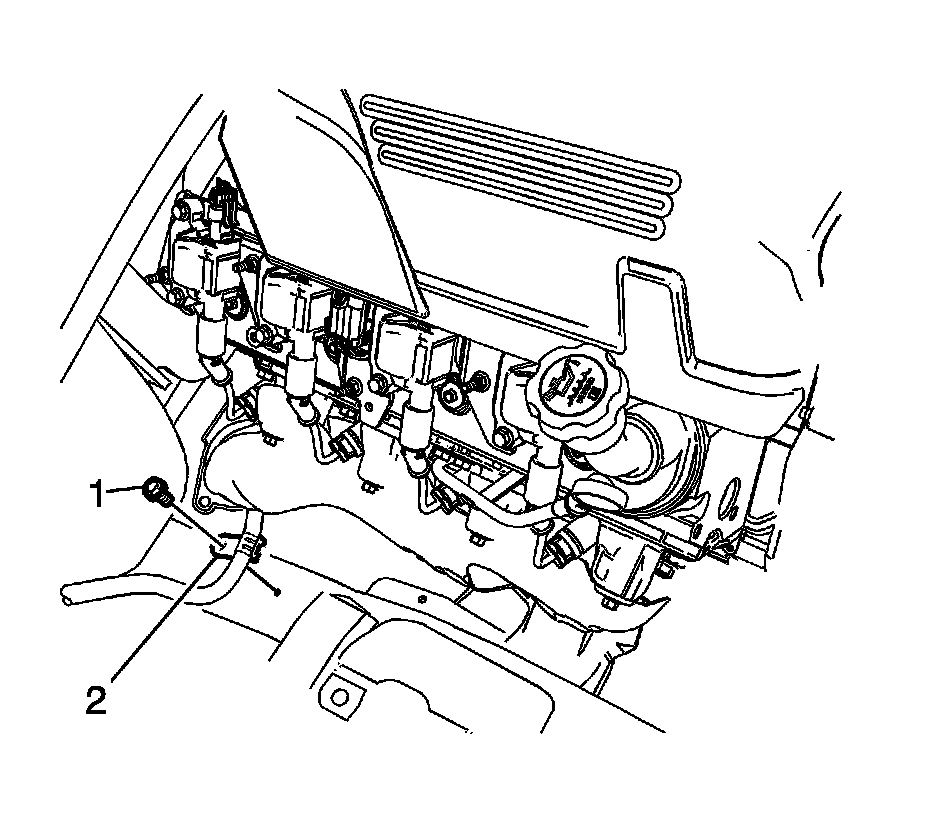

7. Remove the starter solenoid cable retainer bolt (1) frome the right frame rail.

8. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.

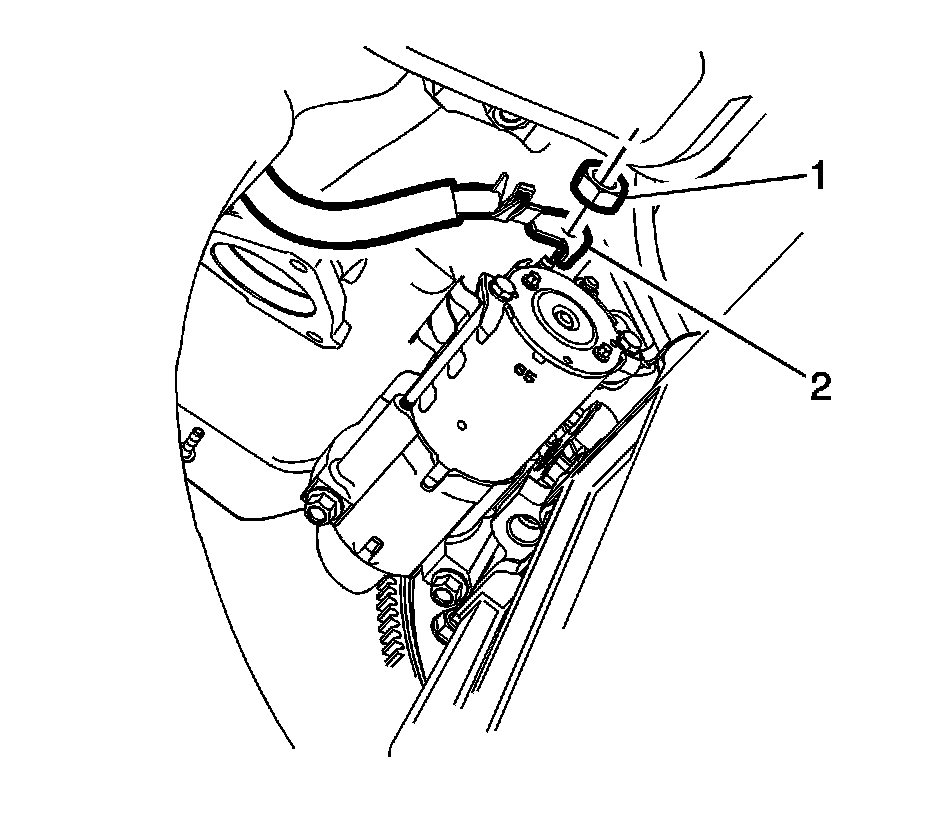

9. Remove the starter solenoid nut (1) and the starter cable terminal (2), from the vehicle.

Installation Procedure





Caution:
Refer to Fastener Caution Fastener Caution.

1. Install the starter cable terminal (2) and nut (1), to the starter.Tighten the nut to 9 Nm (80 lb in).





2. Install the starter solenoid cable retaining clip (2) and nut (1), to the right frame rail.Tighten the bolt to 25 Nm (18 lb ft).





3. Install the starter solenoid cable clamp to the battery post and tighten the nut to 9 Nm (80 lb in).

4. Install the battery positive terminals (3) and (4) to the mega-fuse holder.Tighten the nuts (1) and (2) to 9 Nm (80 lb in).

5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (TP2) Battery Negative Cable Disconnection and Connection (TP2)Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Single Battery).
