Automatic Transmission Range Selector Lever Replacement

Removal Procedure

1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.





2. Remove the range selector lever cable heat shield bolts (1).

3. Remove the range selector lever cable heat shield (2).





4. Disconnect the range selector lever cable (2) from the range select lever.

5. Remove the range selector lever cable retainer (1).

6. Remove the range selector lever cable (2) from the cable bracket.





Warning

Hold the transmission range selector lever while removing or installing the lever retaining nut. Failure to hold the lever can cause damage to the transmission internal park system components which could allow the vehicle to roll when placed in the park position.

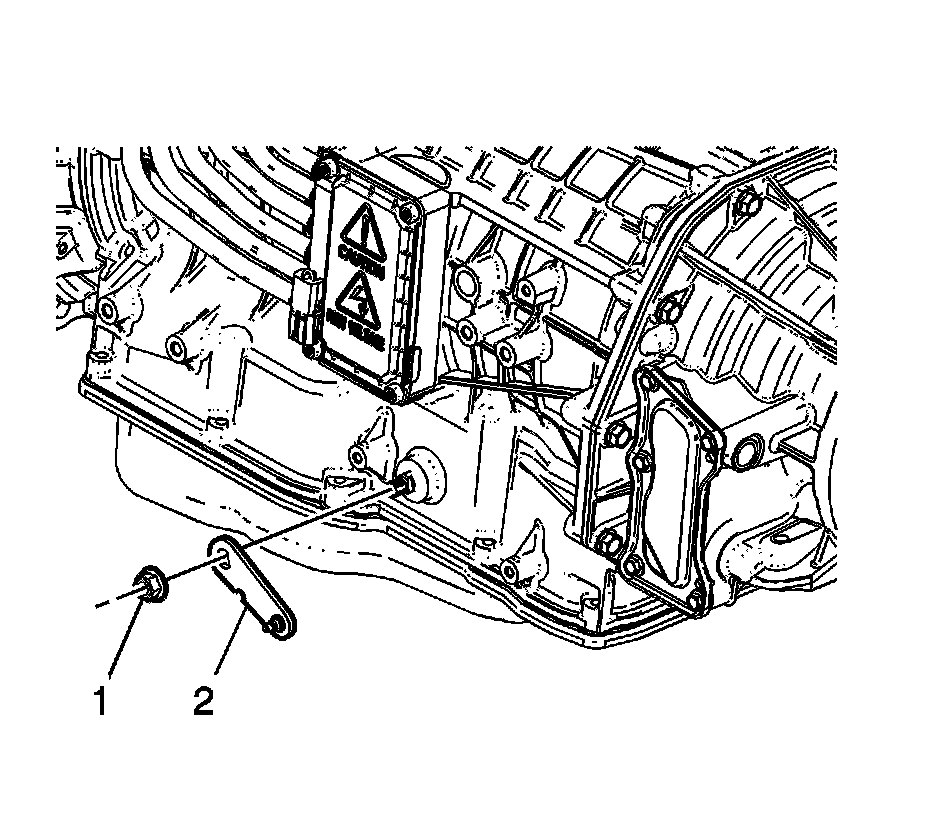

7. Remove the range selector lever nut (1).

8. Remove the range selector lever (2).

Installation Procedure





1. Install the range selector lever (2).

Warning

Hold the transmission range selector lever while removing or installing the lever retaining nut. Failure to hold the lever can cause damage to the transmission internal park system components which could allow the vehicle to roll when placed in the park position.

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the range selector lever nut (1) and tighten to 25 Nm (18 lb ft).





3. Install the range selector lever cable (2) to the cable bracket.

4. Install the range selector lever cable retainer (1).

5. Connect the range selector lever cable (2) to the range select lever.





6. Install the range selector lever cable heat shield (2).

7. Install the range selector lever cable heat shield bolts (1) and tighten to 17 Nm (13 lb ft).

8. Lower the vehicle.
