Ambient Temperature Sensor / Switch HVAC
Ambient Temperature Sensor / Switch HVAC

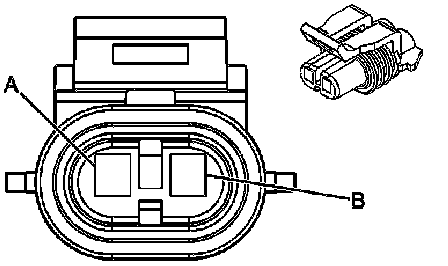

Component Connector End Views

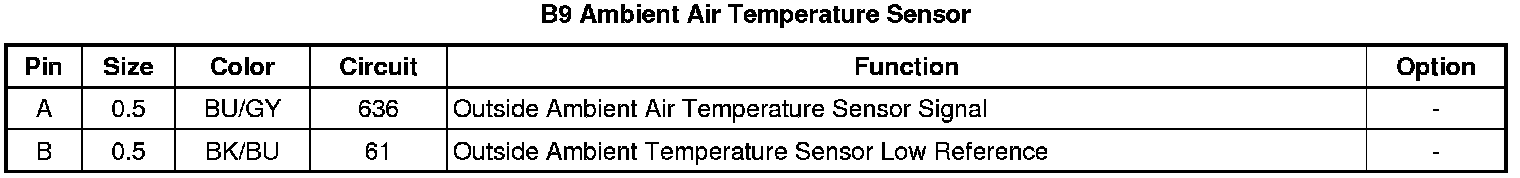

B9 Ambient Air Temperature Sensor
